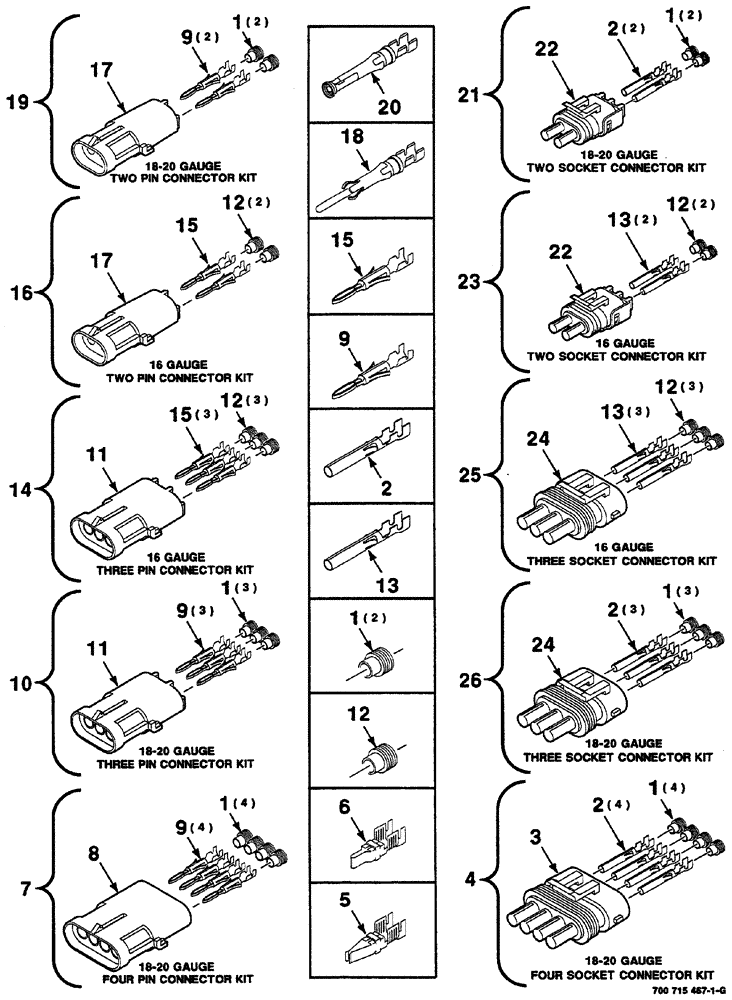

Запчасти Case IH 8870 (04-32) - ELECTRICAL HARNESS SERVICE PARTS (55) - ELECTRICAL SYSTEMS

1

700706400

PLUG

18-20 gauge

1шт.

Part of Harness Repair Kit Ref. 4 P/N 700707002

1шт.

Part of Harness Repair Kit Ref. 7 P/N 700709354

1шт.

Part of Harness Repair Kit Ref. 10 P/N 700718599

1шт.

Part of Harness Repair Kit Ref.19 P/N 700708753

1шт.

Part of Harness Repair Kit Ref. 21 P/N 700706999

1шт.

Part of Harness Repair Kit Ref. 26 P/N 700707001

1шт.

2

700708760

ELEC. TERMINAL PIN,18 - 20 SAE

SOCKET female, 18-20 gauge

1шт.

Part of Harness Repair Kit Ref. 4 P/N 700707002

1шт.

Part of Harness Repair Kit Ref. 21 P/N 700706999

1шт.

Part of Harness Repair Kit Ref. 26 P/N 700707001

1шт.

3

700708963

WIRE CONNECTOR

tower, 4 socket, female

1шт.

Part of Harness Repair Kit Ref. 4 P/N 700707002

1шт.

4

700707002

REPAIR KIT

KIT harness, 4 socket, female, Includes: Ref. 1, 2 and 3

1шт.

5

700709706

TERMINAL

female, type XII

1шт.

6

700709767

CONTACT

male, type XII

1шт.

7

700709354

REPAIR KIT

KIT repair, harness, 4 pin, shroud , male, Includes: Ref. 1, 8 and 9

1шт.

8

700708964

WIRE CONNECTOR

shroud, 4 pin, male

1шт.

Part of Harness Repair Kit Ref. 7 P/N 700709354

1шт.

9

700706401

TERMINAL

PIN male, 18-20 gauge

1шт.

Part of Harness Repair Kit Ref. 7 P/N 700709354

1шт.

Part of Harness Repair Kit Ref. 10 P/N 700718599

1шт.

Part of Harness Repair Kit Ref.19 P/N 700708753

1шт.

10

700718599

KIT

repair, harness, shroud, 3 pin, male, Includes: Ref. 1, 9 and 11

1шт.

11

700706413

ELEC CONNECTOR

shroud, 3 pin, male

1шт.

Part of Harness Repair Kit Ref. 10 P/N 700718599

1шт.

Part of Harness Repair Kit Ref. 14 P/N 700718531

1шт.

12

225125C1

SEAL

SEAL, 16 gauge

1шт.

Part of Harness Repair Kit Ref. 14 P/N 700718531

1шт.

Part of Harness Repair Kit Ref.16 P/N 700718588

1шт.

Part of Harness Repair Kit Ref. 23 P/N 700718590

1шт.

Part of Harness Repair Kit Ref. 25 P/N 700718582

1шт.

13

700718576

TERMINAL CONNECTOR

SOCKET female, 16 gauge

1шт.

Part of Harness Repair Kit Ref. 23 P/N 700718590

1шт.

Part of Harness Repair Kit Ref. 25 P/N 700718582

1шт.

14

700718531

KIT

repair, harness, shroud, 3 pin, male, 16 gauge, Includes: Ref. 11, 12 and 15

1шт.

15

700718530

TERMINAL CONNECTOR

PIN male, 16 gauge

1шт.

Part of Harness Repair Kit Ref. 14 P/N 700718531

1шт.

Part of Harness Repair Kit Ref.16 P/N 700718588

1шт.

16

700718588

KIT

repair, harness, 2 pin, male, 16 gauge, Includes: Ref. 12, 15 and 17

1шт.

17

700706399

ELEC CONNECTOR,14 - 20 SAE

shroud, 2 pin, male

1шт.

Part of Harness Repair Kit Ref.16 P/N 700718588

1шт.

Part of Harness Repair Kit Ref.19 P/N 700708753

1шт.

18

700708757

ELEC. TERMINAL PIN,18 - 16 SAE

type 3, male, 16-18 gauge

1шт.

19

700708753

REPAIR KIT

repair, harness, 2 pin, male, Includes: Ref. 1, 9 and 17

1шт.

20

700708758

TERMINAL

type 3, female, 16-18 gauge

1шт.

21

700706999

REPAIR KIT

KIT harness, 2 socket, female, 18-20 gauge, Includes: Ref. 1, 2 and 22

1шт.

22

245482C1

ELEC CONNECTOR,2 Pin

tower, 2 socket, female

1шт.

Part of Harness Repair Kit Ref. 21 P/N 700706999

1шт.

Part of Harness Repair Kit Ref. 23 P/N 700718590

1шт.

23

700718590

KIT

repair, harness, 2 socket, female, 16 gauge, Includes: Ref. 12, 13 and 22

1шт.

24

245484C1

ELEC CONNECTOR,3 Pin

tower, 3 socket, female

1шт.

Part of Harness Repair Kit Ref. 25 P/N 700718582

1шт.

Part of Harness Repair Kit Ref. 26 P/N 700707001

1шт.

25

700718582

KIT

repair, harness, 3 socket, female, 16 gauge, Includes: Ref 12, 13 and 24

1шт.

26

700707001

REPAIR KIT

repair, harness, 3 socket, female, Includes: Ref. 1, 2 and 24

1шт.
