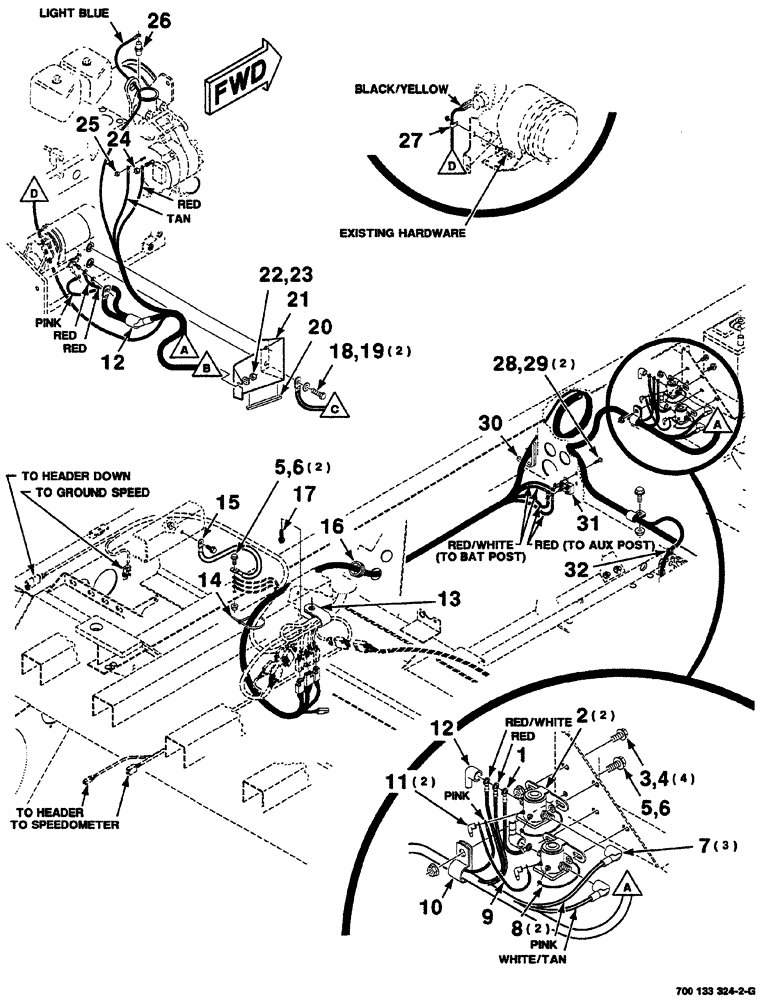

Запчасти Case IH 8870 (04-28) - ENGINE WIRING ASSEMBLY (55) - ELECTRICAL SYSTEMS

1

700715406

ELECTRICAL WIRE

WIRE electrical

1шт.

2

700715578

SOLENOID SWITCH

sealed

2шт.

3

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

4

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

5

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

3шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

3шт.

7

700707961

SHIELD

term., electrical

3шт.

8

8722621

ELECTRICAL WIRE

WIRE electrical

2шт.

9

741272

ELECTRICAL WIRE

WIRE electrical

1шт.

10

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

Line

1шт.

11

700707064

SHIELD

term., electrical

2шт.

12

700707065

SHIELD

term., electrical

2шт.

13

CUR755777

PULLEY

line

1шт.

14

306132C1

CABLE TIE,14.5" L

CABLE STRAP TIE

1шт.

15

722868

CABLE

WIRE electrical

1шт.

16

700707095

GROMMET

1шт.

17

163-14

SCREW,Hex Wshr Hd, 1/4" - 20 x 1"

machine, hex washer head, 1/4"-20 x 1"

1шт.

18

7771843

SCREW

cap, hex, M12 x 1.75 x 16

2шт.

19

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

Hardened

2шт.

20

6835060

GROMMET

TRIM

1шт.

21

700117931

SHIELD

starter

1шт.

22

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

plain, hardened, 1/2"

1шт.

23

425-108

NUT,1/2" - 13, Gr 5

1шт.

24

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

25

825-1405

NUT,M5, Cl 8

1шт.

26

700708219

TEMPERATURE SENDER

1шт.

27

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

Line

1шт.

28

340-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

machine, cross recess pan head, #10-24 x 1/2", grade 60M

2шт.

29

225-14110

NUT,#10-24

2шт.

30

700715944

SEAL

TRIM push on

1шт.

31

700715687

BREAKER

ASSEMBLY double

1шт.

32

7027352

RUBBER

GROMMET

1шт.
