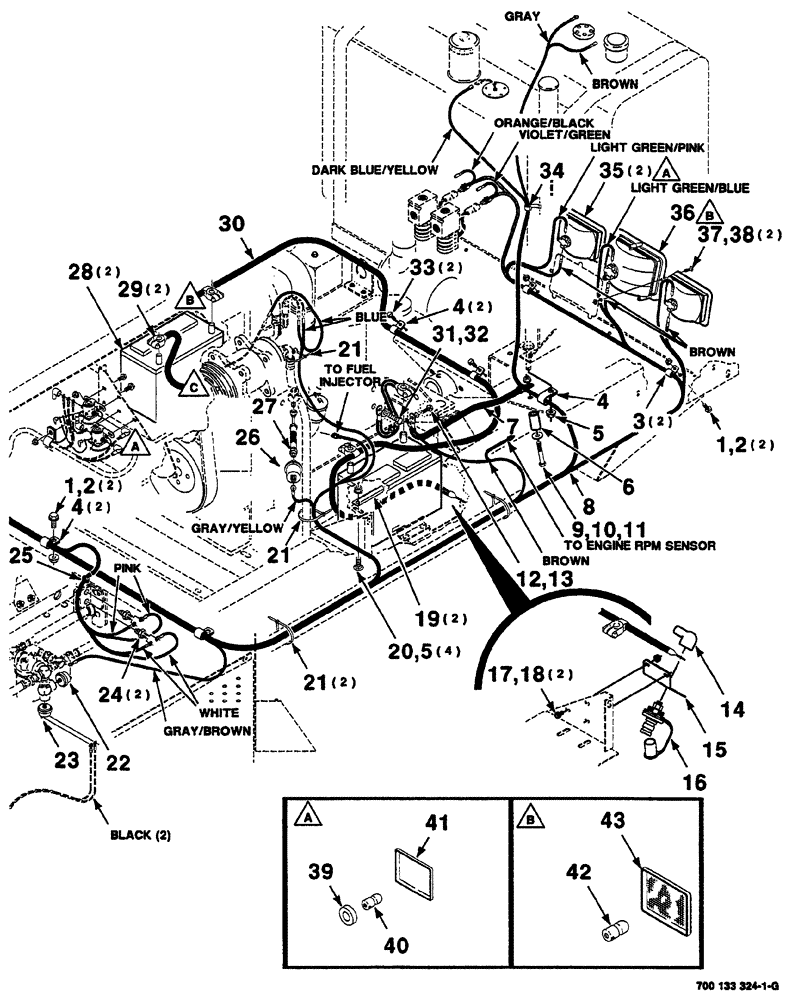

Запчасти Case IH 8870 (04-26) - ENGINE WIRING ASSEMBLY (55) - ELECTRICAL SYSTEMS

1

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

4шт.

2

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

3

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

Line

2шт.

4

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

Line

5шт.

5

231-5146

FLANGE NUT,3/8"-16

5шт.

6

700133541

SPACER

plated

1шт.

7

722868

CABLE

WIRE electrical

1шт.

8

700715467

HARNESS

wire, rear

1шт.

9

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

1шт.

10

495-21044

WASHER,3/8"

1шт.

11

232-5316

FLANGE NUT,Flg, 3/8"-16

lock, hex flange top, GR/G, 3/8"-16

1шт.

12

121-108

BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr

SCREW machine, hex washer head, 5/16"-18 x 1"

1шт.

13

232-5315

FLANGE NUT,Flg, 5/16"-18

lock, hex flange top, GR/G, 5/16"-18

1шт.

14

700707065

SHIELD

term., electrical

1шт.

15

700152444

BRACKET

jumper post

1шт.

16

700715463

STUD

jumper

1шт.

17

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

18

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

19

6827695

CLAMP BRACKET

HOLDOWN battery

2шт.

20

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

4шт.

21

306132C1

CABLE TIE,14.5" L

CABLE STRAP TIE

4шт.

22

700707070

PRESSURE SWITCH

charge

1шт.

23

700706901

PRESSURE SWITCH

lock out

1шт.

24

8025637

SWITCH

neutral start

2шт.

25

7027352

RUBBER

GROMMET

1шт.

26

1341329C1

TRANSMITTER

SENDER oil pressure

1шт.

27

700715360

HOSE

hydraulic

1шт.

28

B24F72W

WET BATTERY

2шт.

29

700715465

CABLE

battery

2шт.

30

700715464

CABLE

battery

1шт.

31

7771843

SCREW

cap, hex, M12 x 1.75 x 16

1шт.

32

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

Hardened

1шт.

33

172463

SELF-TAP SCREW,Hex Hd, 5/16" x 1"

tapping, hex washer head thread cutting, 5/16"-18 x 3/4"

2шт.

34

7745193

CLIP

wire

1шт.

35

700715461

LIGHT

tail, Includes: Ref. 39, 40, and 41

2шт.

36

700715247

LIGHT

rear, Includes: Ref. 42 and 43

1шт.

37

340-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

machine, cross recess pan head, #10-24 x 1/2", grade 60M

2шт.

38

225-14110

NUT,#10-24

2шт.

39

700719619

SOCKET

1шт.

Part of Tail Light Ref. 35 P/N 700715461

1шт.

40

A41264

BULB,#1156, 12V

1шт.

Part of Tail Light Ref. 35 P/N 700715461

1шт.

41

700719618

BEZEL

rubber

1шт.

Part of Tail Light Ref. 35 P/N 700715461

1шт.

42

700717384

BULB

light, rear

1шт.

Part of Rear Light Ref. 36 P/N 700715247

1шт.

43

700717427

LENS

light, rear

1шт.

Part of Rear Light Ref. 36 P/N 700715247

1шт.
