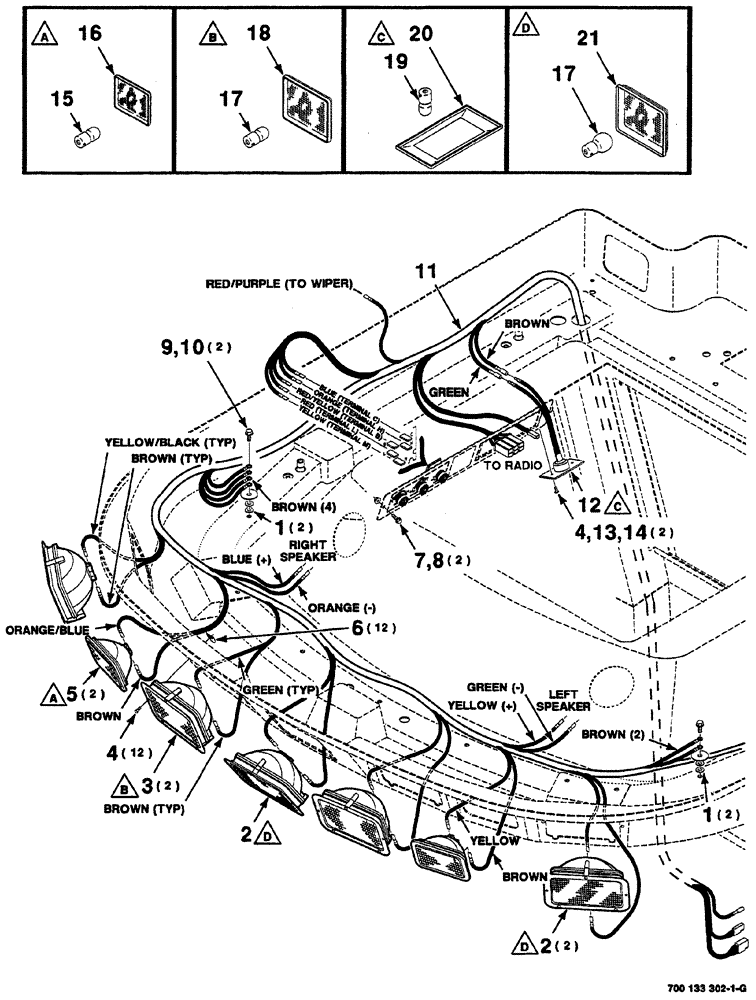

Запчасти Case IH 8870 (04-22) - LIGHT ASSEMBLY - FRONT (55) - ELECTRICAL SYSTEMS

1

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

4шт.

2

700715247

LIGHT

head, with bezel, Includes: Ref. 17 and 21

3шт.

3

700715246

HEADLIGHT

with bezel, Includes: Ref. 17 and 18

2шт.

4

19-1027

SELF-TAP SCREW,Cross Truss Hd, #8 x 1/2"

tapping, thread forming, cross recess truss head, #8-18 x 1/2"

14шт.

5

700715245

LAMP

FLASHER amber, Includes: Ref. 15 and 16

2шт.

6

700715255

NUT

speed

12шт.

7

7883275

SCREW,Hex Washer, 1/4" - 20 x 3/4"

machine, hex washer head, 1/4"-20 x 3/4"

2шт.

8

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

9

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

2шт.

10

700710049

WASHER

fender, 3/8"

2шт.

11

700715244

HARNESS

wire

1шт.

12

700715251

LIGHT

courtesy, Includes: Ref. 19 and 20

1шт.

13

495-21019

WASHER,#8

2шт.

14

225-14108

NUT,#8-32

hex, , grade 2 #8-32

2шт.

15

A41264

BULB,#1156, 12V

Flasher

1шт.

Part of Amber Flasher Ref. 5 P/N 700715245

1шт.

16

700717422

LENS

flasher

1шт.

Part of Amber Flasher Ref. 5 P/N 700715245

1шт.

17

700717384

BULB

head light

2шт.

Part of Headlight With Bezel Ref. 2 P/N 700715247

1шт.

Part of Headlight With Bezel Ref. 3 P/N 700715246

1шт.

18

700717423

LENS

bezel

1шт.

Part of Headlight With Bezel Ref. 3 P/N 700715246

1шт.

19

700717383

BULB

courtesy

1шт.

Part of Courtesy Light Ref. 12 P/N 700715251

1шт.

20

700717420

LENS

courtesy

1шт.

Part of Courtesy Light Ref. 12 P/N 700715251

1шт.

21

700717427

LENS

head light

1шт.

Part of Headlight With Bezel Ref. 2 P/N 700715247

1шт.
