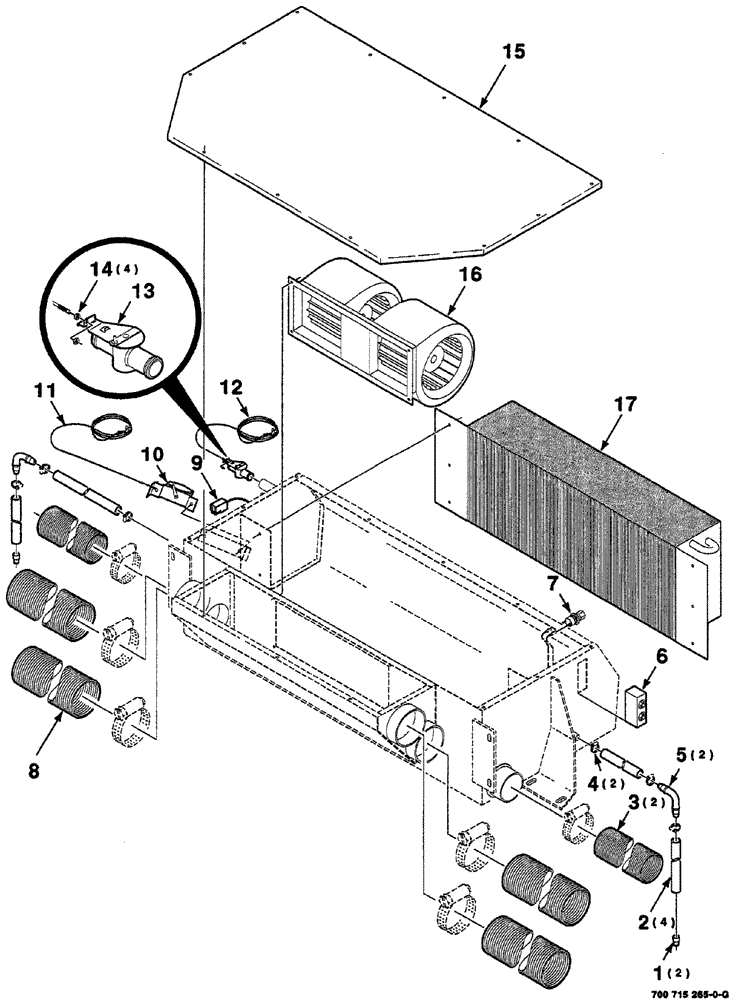

Запчасти Case IH 8870 (07-40) - AIR CONDITIONER AND HEATER ASSEMBLY (50) - CAB CLIMATE CONTROL

1

700717177

RESTRICTOR

air, drain

2шт.

2

700717178

TUBE

drain, 10 foot bulk

4шт.

3

700717174

TUBE

flex , 2-1/2", 18 foot bulk

2шт.

4

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

2шт.

5

700717176

ELBOW

drain

2шт.

6

700717164

BLOCK

expansion, valve

1шт.

7

700719624

SWITCH

pressure, low

1шт.

8

700717175

TUBE

flex, 3", 18 foot bulk

1шт.

9

700717163

HARNESS

ASSEMBLY wire

1шт.

10

700717170

THERMOSTART

ASSEMBLY

1шт.

11

700717171

CABLE

ASSEMBLY thermostat

1шт.

12

700717172

CABLE

ASSEMBLY valve, water

1шт.

13

700717169

VALVE

ASSEMBLY water

1шт.

14

700717179

NUT

control, jam cable

4шт.

15

700717180

COVER

ASSEMBLY

1шт.

16

700717168

BLOWER

duel, 12 volt, 3 speed

1шт.

17

700717166

COIL

AC/heat

1шт.
