(07-76) - WHEEL AND TIRE ASSEMBLY (LEFT AND RIGHT)

Запчасти Case IH 8870 (07-76) - WHEEL AND TIRE ASSEMBLY (LEFT AND RIGHT) (44) - WHEELS

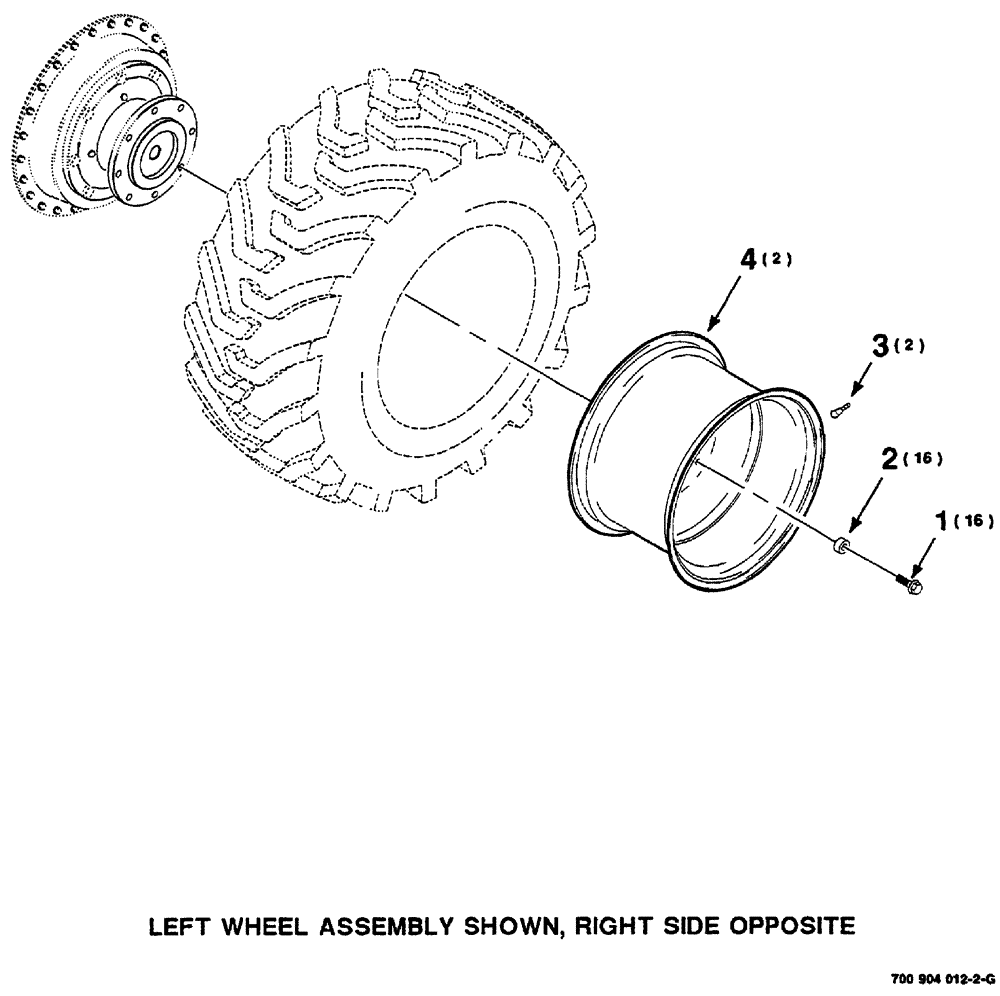

Схема запчастей Case IH 8870 - (07-76) - WHEEL AND TIRE ASSEMBLY (LEFT AND RIGHT) (44) - WHEELS
2
3
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

360-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

flange, hex, 5/8"-11 x 2", grade 8

16шт.

2

700126600

SPACER

16шт.

3

7027469

VALVE

STEM

2шт.

4

700715529

RIM

WHEEL ASSEMBLY, W16L-24

2шт.

Выбрано товаров: 4
