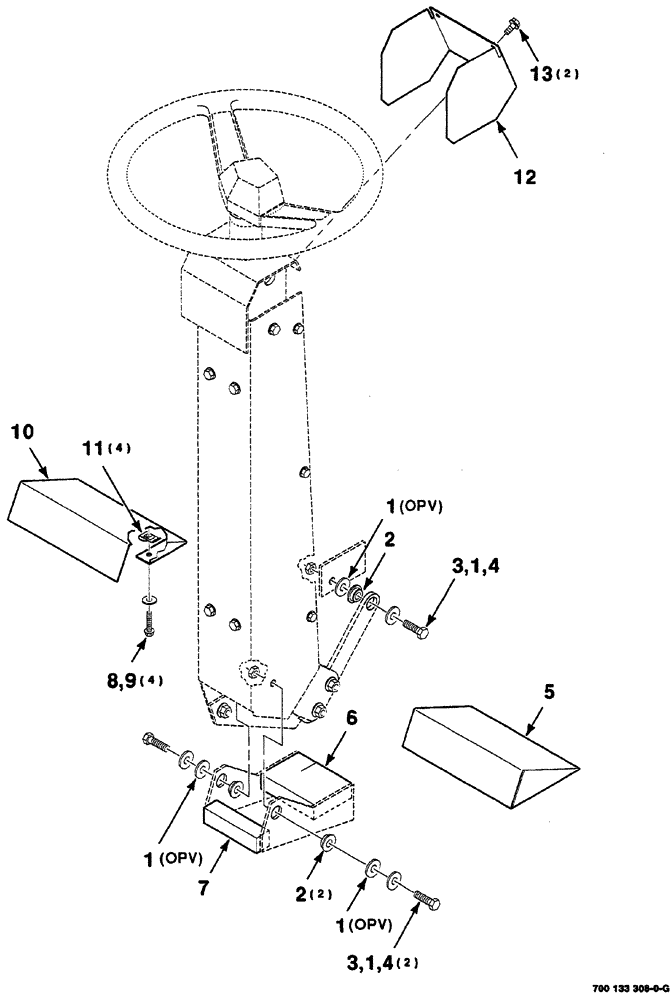

Запчасти Case IH 8870 (07-24) - STEERING POST (41) - STEERING

1

496-81010

WASHER

plain, wide, hardened, 3/8"

6шт.

2

700705555

BUSHING

3шт.

3

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

3шт.

4

425-106

NUT,3/8"-16, Cl 5

3шт.

5

700133510

SUPPORT

left

1шт.

6

700715320

PAD

foam

1шт.

7

700715319

PAD

foam

1шт.

8

7883291

SCREW,Hex Washer, 1/4" - 20 x 1 1/4"

machine, hex washer head, 1/4"-20 x 1-1/4"

4шт.

9

495-21031

WASHER,1/4"

4шт.

10

700133511

SUPPORT

right

1шт.

11

74740

NUT

speed

4шт.

12

700133508

COVER

steering post

1шт.

13

700718697

SCREW

tapping, thread cutting, hex washer head, black, 1/4"-20 x 1/2"

2шт.
