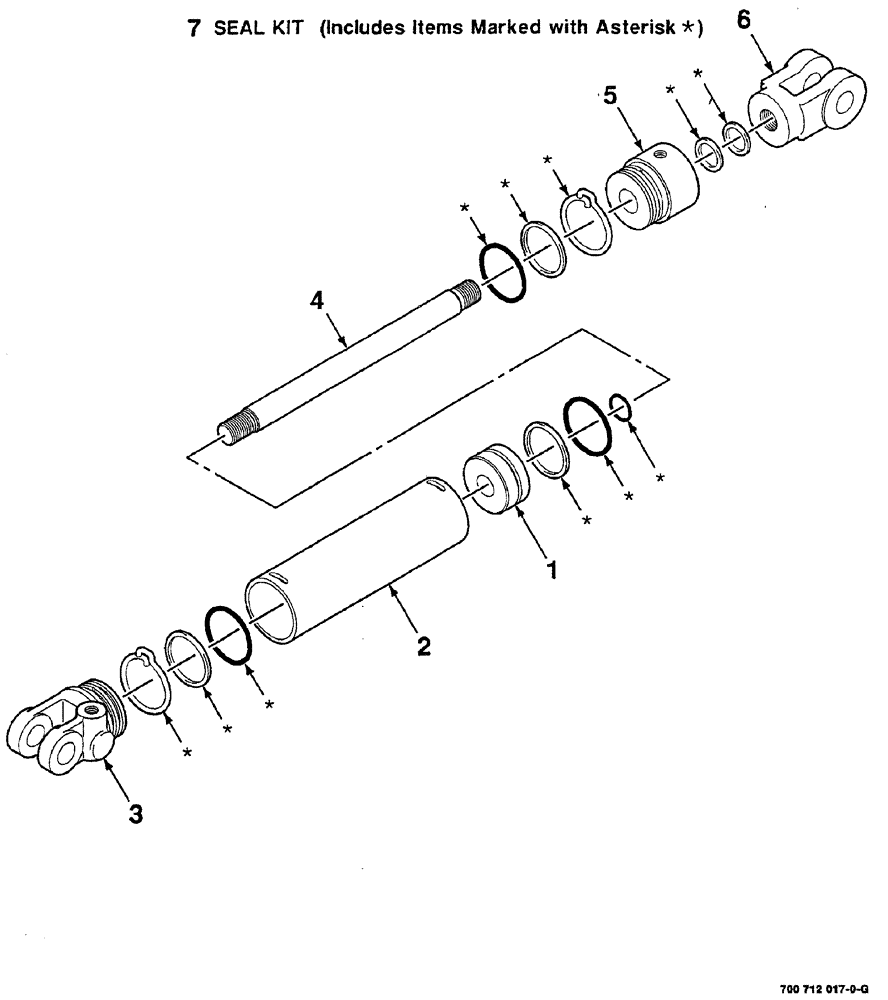

Запчасти Case IH 8870 (08-74) - HYDRAULIC CYLINDER ASSEMBLY (HEADER TILT) (35) - HYDRAULIC SYSTEMS

700712017

CYLINDER

ASSEMBLY hydraulic, complete, 2-1/2" bore x 8" stroke

1шт.

1

102905A1

PISTON

cylinder

1шт.

2

102906A1

TUBE

BARREL

1шт.

3

700704894

CYLINDER HEAD

1шт.

4

102907A1

ROD

piston

1шт.

5

102909A1

BEARING

rod, cylinder

1шт.

6

102908A1

END

CLEVIS rod

1шт.

7

H673838

SEAL

seal, Includes items in art marked with an asterisk

1шт.
