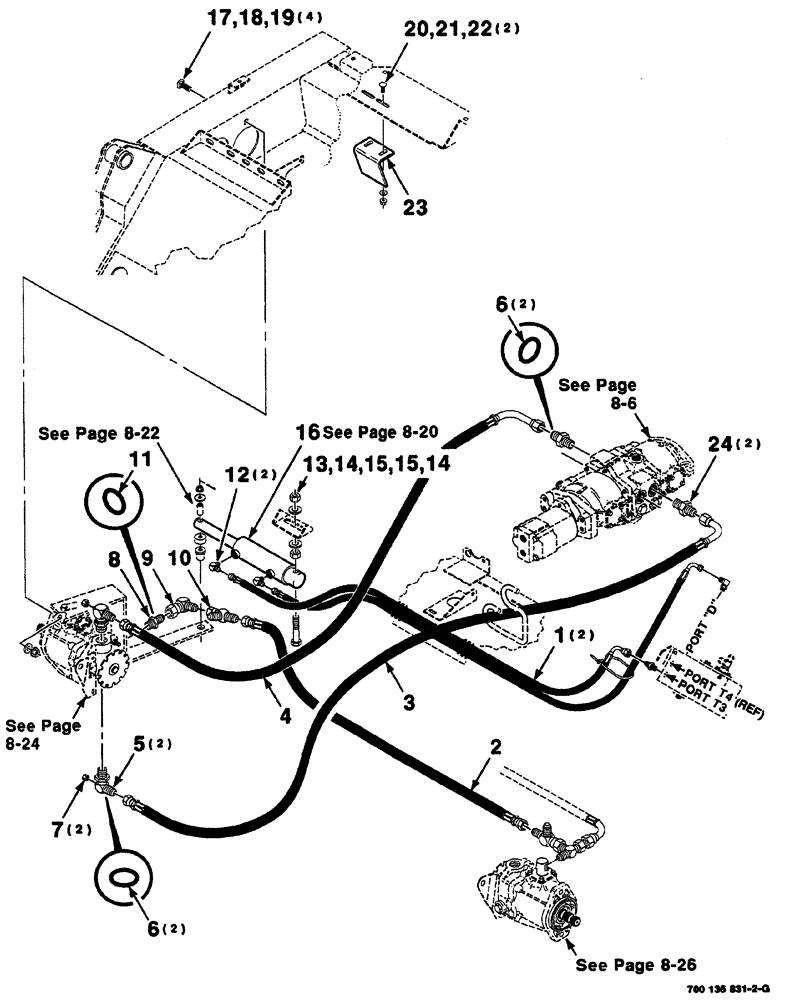

Запчасти Case IH 8860HP (08-18) - HYDRAULIC DRIVE ASSEMBLY - 2 SPEED (CONTINUED) (35) - HYDRAULIC SYSTEMS

1

700715451

HOSE

hydraulic

2шт.

2

700715452

HOSE

hydraulic

1шт.

3

700715454

HOSE

hydraulic

1шт.

4

700715453

HOSE

hydraulic

1шт.

5

700717997

FITTING

special, 90°, Includes: Ref. 6

2шт.

6

738476

O-RING

4шт.

Part of Connector Ref. 24 P/N 218-5069

1шт.

Part of Fitting Ref. 5 P/N 700717997

1шт.

7

218-754

CAP,37 Degree, 9/16"-18

2шт.

8

51200289

FITTING

straight, Includes: Ref. 11

1шт.

9

700701624

ELBOW

90°

1шт.

10

218-5220

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

FITTING adapter

1шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

Part of Fitting Ref. 8 P/N 846717

1шт.

12

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

90°

2шт.

13

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

cap, hex, 5/8-11 x 3-1/4

1шт.

14

425-1010

NUT,5/8"-11, G5

2шт.

15

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

5/8" bolt size

2шт.

16

7075625

CYLINDER

ASSY. hydraulic

1шт.

17

434-824

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

round head short square neck, 1/2-13 x 1-1/2

4шт.

18

700711557

WASHER

plain, hardened, wide, 1/2

4шт.

19

231-5348

FLANGE NUT,Flg, 1/2"-13

lock, hex flange top, 1/2-13, GR/G

4шт.

20

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

2шт.

21

496-11041

WASHER,13/32" x 13/16" x .065", HDN

plain, hardened, 3/8

2шт.

22

232-5316

FLANGE NUT,Flg, 3/8"-16

lock, hex flange top, 3/8-16, GR/G

2шт.

23

700115732

STOP

stop

1шт.

24

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. Ref. 6

2шт.
