Запчасти Case IH 8860HP (08-16) - HYDRAULIC DRIVE ASSEMBLY (2 SPEED) (35) - HYDRAULIC SYSTEMS

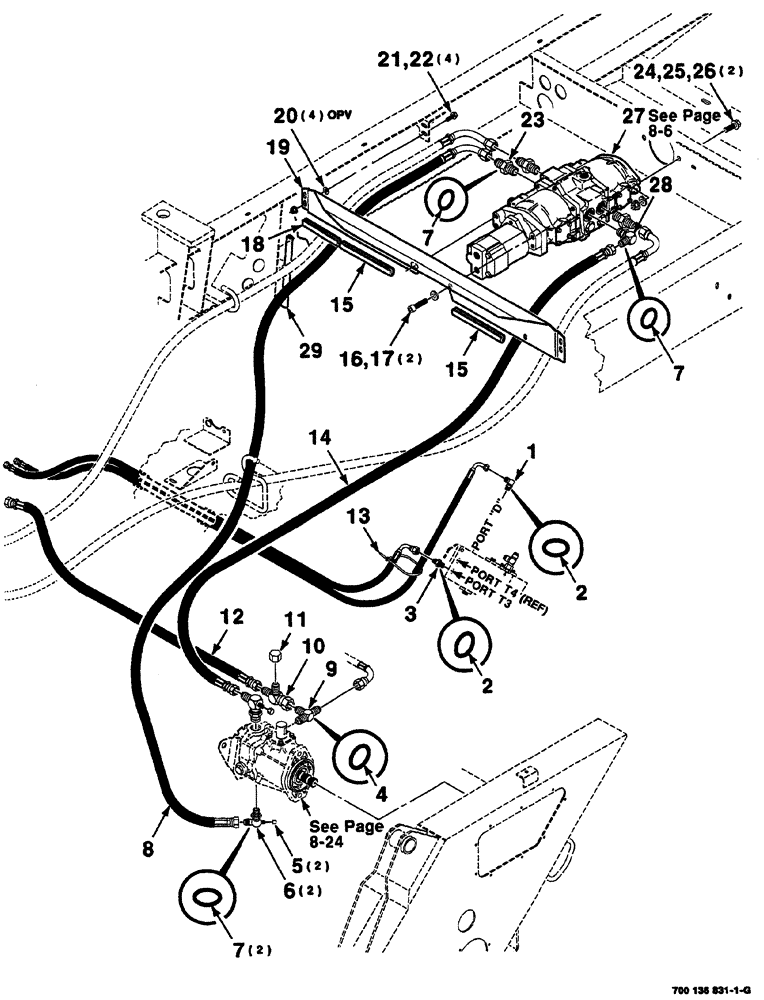

Схема запчастей Case IH 8860HP - (08-16) - HYDRAULIC DRIVE ASSEMBLY (2 SPEED) (35) - HYDRAULIC SYSTEMS
8
29
14
21
13
3
28
9
19
18
1
23
7
17
7
12
27
15
6
11
24
10
15
7
26
22
2
16
5
25
20
2
4

Артикул

Название

Примечание

Количество

1

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes Ref. 2

1шт.

2

738468

O-RING

2шт.

Part of Adapter Ref. 3 P/N 218-5057

1шт.

Part of Elbow Ref. 1 P/N 218-5105

1шт.

3

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. Ref. 2

1шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

Part of Tee Ref. 9 P/N 218-5241

1шт.

5

218-754

CAP,37 Degree, 9/16"-18

2шт.

6

700717997

FITTING

special, Includes: Ref. 7

2шт.

7

738476

O-RING

4шт.

Part of Elbow Ref. 28 P/N 218-5110

1шт.

Part of Connector Ref. 23 P/N 218-5069

1шт.

Part of Fitting Ref. 6 P/N 700717997

1шт.

8

700715454

HOSE

hydraulic

1шт.

9

218-5241

TEE,7/8" - 14 Male JIC x 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

TEE, Includes: Ref. 4

1шт.

10

218-5220

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

FITTING adapter

1шт.

11

218-756

CAP,37 Degree, 7/8"-14

1шт.

12

700715452

HOSE

hydraulic

1шт.

13

306132C1

CABLE TIE,14.5" L

CABLE STRAP TIE

1шт.

14

700706791

HOSE

hydraulic

1шт.

15

6511695

GROMMET

2шт.

16

61-35024

HEX SOC SCREW,1/2"-13 x 1 1/2"

hex socket head, special, 1/2-13 x 1-1/2

2шт.

17

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

plain, hardened, 1/2

2шт.

18

700715944

SEAL

TRIM push-on

1шт.

19

700150296

SUPPORT

pump

1шт.

20

496-11041

WASHER,13/32" x 13/16" x .065", HDN

plain, hardened, 3/8

4шт.

21

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

4шт.

22

232-5316

FLANGE NUT,Flg, 3/8"-16

lock, hex flange top, 3/8-16, GR/G

4шт.

23

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. Ref. 7

1шт.

24

8701237

BOLT

hex flange, 1/2-13 x 1-1/2, GR8

2шт.

25

700711557

WASHER

plain, hardened, wide, 1/2

2шт.

26

231-5348

FLANGE NUT,Flg, 1/2"-13

lock, hex flange top, 1/2-13, GR/G

2шт.

27

700719771

PUMP, HYDRAULIC

ASSY. hydraulic

1шт.

28

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. Ref. 7

1шт.

29

700117735

ADHESIVE STRIP

TRIM push-on

1шт.

Выбрано товаров: 35
