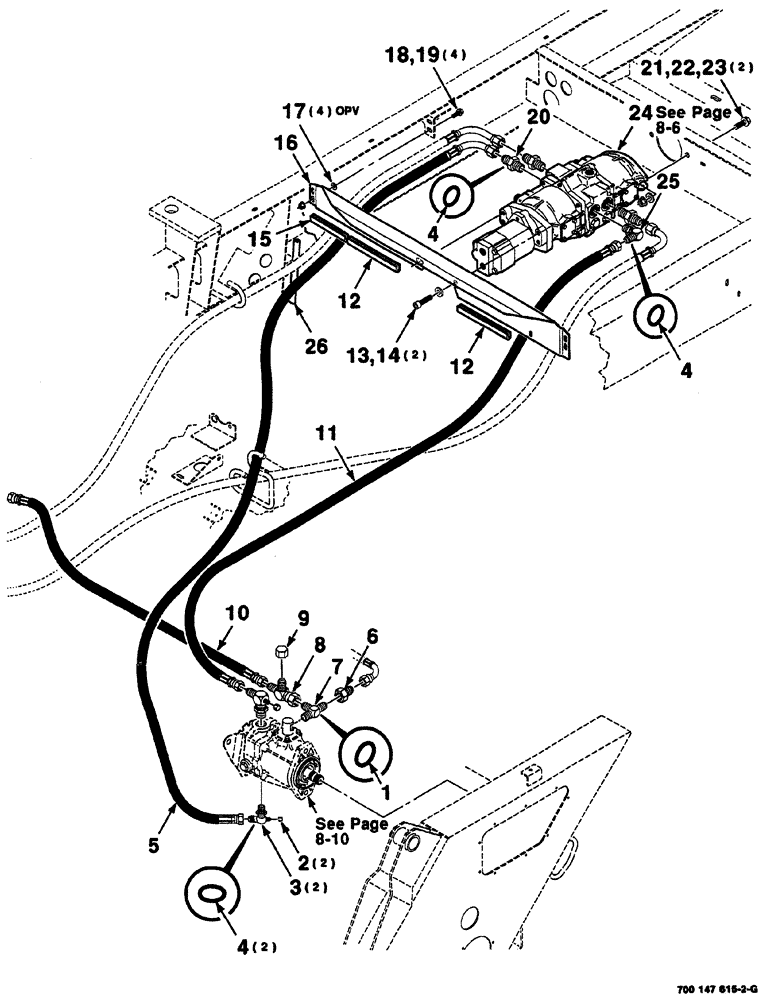

Запчасти Case IH 8860HP (08-02) - HYDRAULIC DRIVE ASSEMBLY - LEFT (35) - HYDRAULIC SYSTEMS

1

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

Part of Tee Ref. 7 P/N 218-5241

1шт.

2

218-754

CAP,37 Degree, 9/16"-18

2шт.

3

700717997

FITTING

special, Includes: Ref. 4

2шт.

4

738476

O-RING

4шт.

Part of Elbow Ref. 25 P/N 218-5110

1шт.

Part of Connector Ref. 20 P/N 218-5069

1шт.

Part of Fitting Ref. 3 P/N 700717997

1шт.

5

700715454

HOSE

hydraulic

1шт.

6

700711771

REDUCER

FITTING

1шт.

7

218-5241

TEE,7/8" - 14 Male JIC x 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

TEE, Includes: Ref. 1

1шт.

8

218-5220

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

FITTING adapter

1шт.

9

218-756

CAP,37 Degree, 7/8"-14

1шт.

10

700715452

HOSE

hydraulic

1шт.

11

700706791

HOSE

hydraulic

1шт.

12

6511695

GROMMET

2шт.

13

61-35024

HEX SOC SCREW,1/2"-13 x 1 1/2"

hex socket head, special, 1/2-13 x 1-1/2

2шт.

14

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

plain, hardened, 1/2

2шт.

15

700715944

SEAL

TRIM push-on

1шт.

16

700150296

SUPPORT

pump

1шт.

17

496-11041

WASHER,13/32" x 13/16" x .065", HDN

plain, hardened, 3/8

4шт.

18

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

4шт.

19

232-5316

FLANGE NUT,Flg, 3/8"-16

lock, hex flange top, 3/8-16, GR/G

4шт.

20

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. Ref. 4

1шт.

21

8701237

BOLT

hex flange, 1/2-13 x 1-1/2, GR8

2шт.

22

700711557

WASHER

plain, hardened, wide, 1/2

2шт.

23

231-5348

FLANGE NUT,Flg, 1/2"-13

lock, hex flange top, 1/2-13, GR/G

2шт.

24

700719771

PUMP, HYDRAULIC

ASSY. hydraulic

1шт.

25

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. Ref. 4

1шт.

26

700117735

ADHESIVE STRIP

TRIM push-on

1шт.
