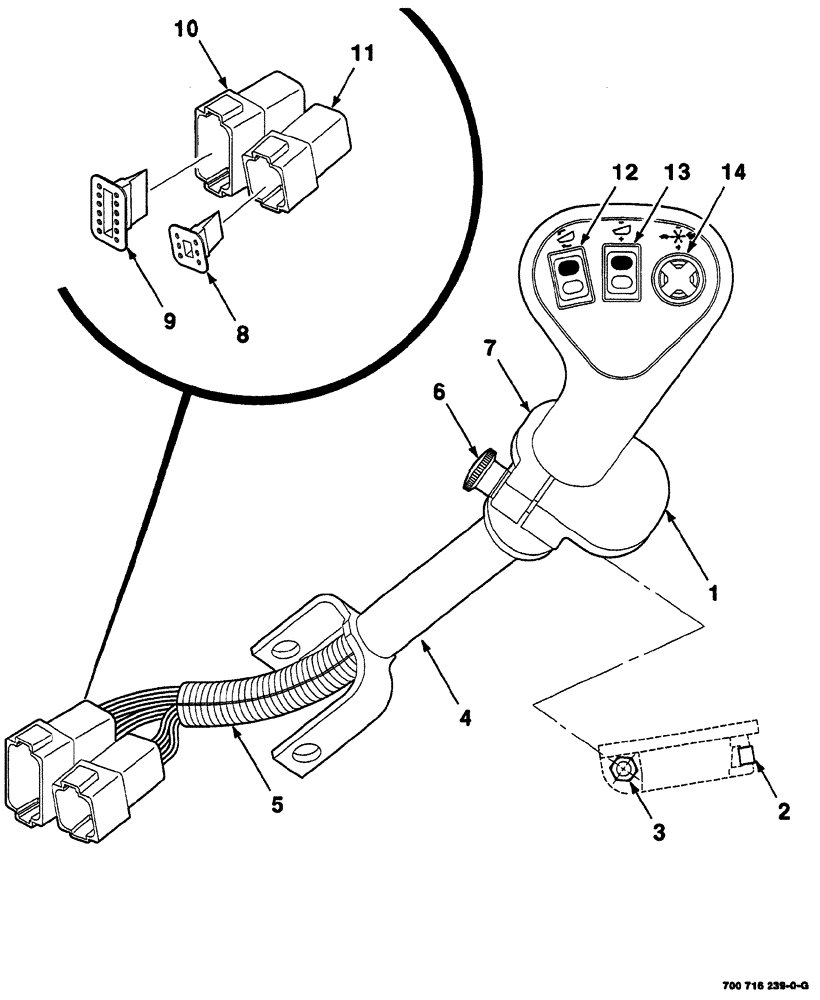

Запчасти Case IH 8860HP (04-20) - CONTROL HANDLE ASSEMBLY (33) - BRAKES & CONTROLS

257827A1

HANDLE

ASSY. contol, complete

1шт.

1

116152A1

SUPPORT

palm, R.H., Case

1шт.

2

1343962C1

CLIP,ELECTRICAL

palm rest, Case

1шт.

3

425-104

NUT,1/4"-20, Cl 5

1шт.

4

113314A2

CONTROL LEVER

ASSY., Case

1шт.

5

120344C1

CONDUIT

Case

1шт.

6

96860C1

KNOB

palm rest, Case

1шт.

7

116150A1

SUPPORT

palm, L.H., Case

1шт.

8

225353C1

WEDGE,Lock, Black

Case

1шт.

9

225390C1

WEDGE

Case

1шт.

10

225388C1

ELEC CONNECTOR,Male, 12 Pin

Case

1шт.

11

225350C1

ELEC CONNECTOR,Male, 6 Pin

Case

1шт.

12

282160A1

SWITCH

header tilt, Case

1шт.

13

118685A1

SWITCH

header lift, Case

1шт.

14

118680A1

SWITCH

reel speed, Case

1шт.
