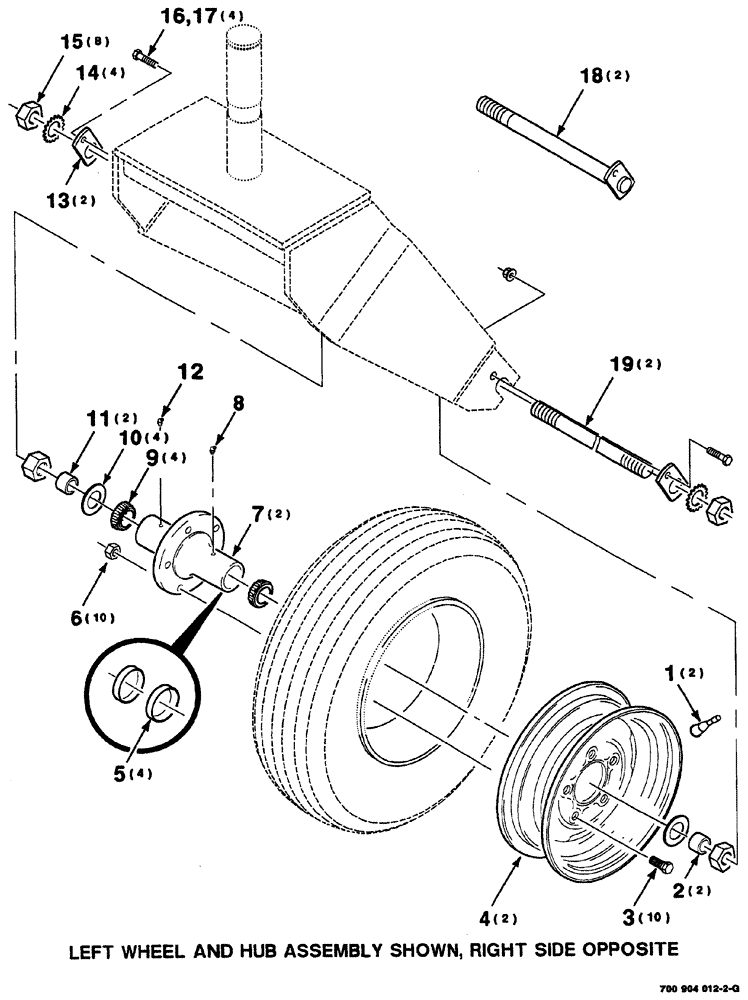

Запчасти Case IH 8860HP (07-88) - TAIL WHEEL AND HUB ASSEMBLY (27) - REAR AXLE SYSTEM

1

A38261

VALVE

STEM

2шт.

2

6291975

HUB

S.N. CFH0189039 and later

2шт.

3

T52730

WHEEL BOLT

wheel, 9/16-18

10шт.

4

700719639

RIM

WHEEL ASSY., 16.1 x W11C

2шт.

5

50104

BEARING CUP,50.01mm OD

cup

4шт.

Part of Hub Assy. Ref. 7 P/N 700134120

1шт.

6

425-119

NUT,Hex, 9/16"-18, G5

10шт.

7

700134120

HUB

ASSY., Includes: Ref. 5

2шт.

8

7792005

VENT

FITTING relief

1шт.

9

51805

ROLLER BEARING,25.4mm ID

BEARING

4шт.

10

700134124

WASHER

special

4шт.

11

700101125

SPACER

2шт.

12

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

1шт.

13

305581

CLIP

2шт.

14

193-17

LOCK WASHER,Ext Tooth, 1"

4шт.

15

425-1516

JAM NUT,Jam, 1"-14, G5

HJN, 1-14

8шт.

16

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

17

232-5316

FLANGE NUT,Flg, 3/8"-16

lock, hex flange top, 3/8-16, GR/G

4шт.

18

700134118

SHAFT

axle, WA, S.N. CFH0145002 thru CFH0145470

2шт.

19

700152425

SHAFT

axle, S.N. CFH0145471 and later

2шт.
