Запчасти Case IH 8860HP (07-84) - TAIL WHEEL AND AXLE ASSEMBLY - RIGHT (8860HP) (27) - REAR AXLE SYSTEM

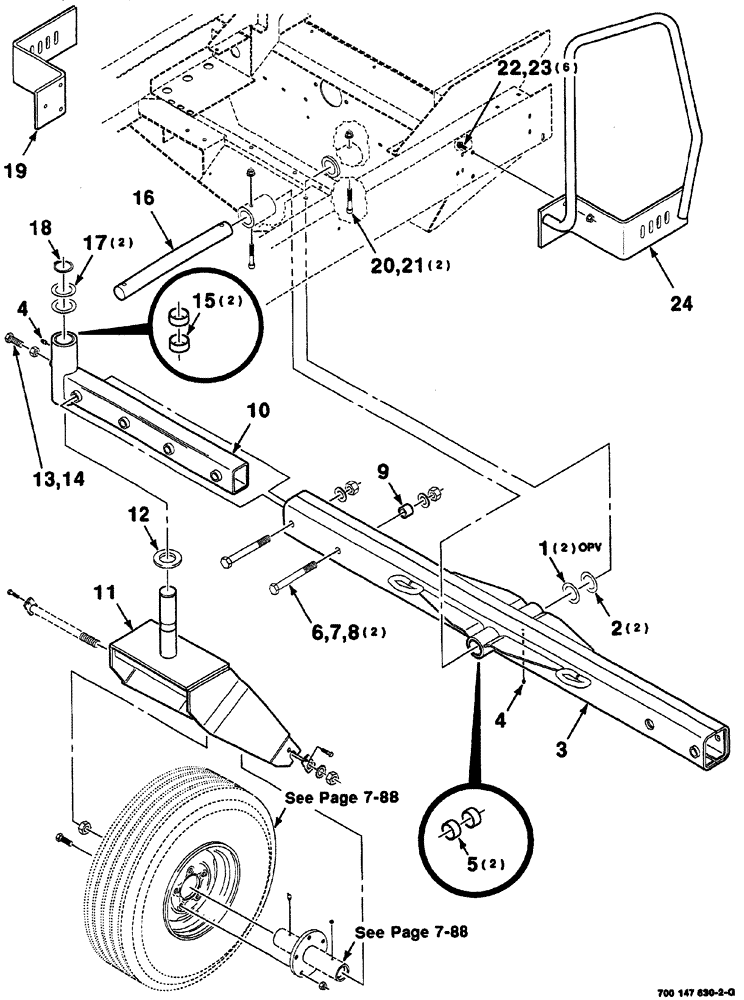

Схема запчастей Case IH 8860HP - (07-84) - TAIL WHEEL AND AXLE ASSEMBLY - RIGHT (8860HP) (27) - REAR AXLE SYSTEM
15
1
21
3
5
18
13
4
12
22
24
11
6
10
7
19
2
16
14
17
4
23
20
8
9

Артикул

Название

Примечание

Количество

1

7852866

BUSHING

machinery, narrow rim, 2 x 18 gauge

2шт.

2

52548

SPECIAL WASHER

BUSHING machinery, narrow rim, 2 x 14 gauge

2шт.

3

700134096

BEAM

ASSY. tail wheel, Includes: Ref. 5

1шт.

4

219-8

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

5

852491

BRONZE BUSHING

BRONZE BUSH

2шт.

Part of Beam Assy. Ref. 3 P/N 700134096

1шт.

6

700152419

PIN

ASSY.

2шт.

7

705574

WASHER,1 1/8" x 2" x .156", HDN

2шт.

8

232-41116

LOCK NUT,1"-8, GC

2шт.

9

700134128

BUSHING

1шт.

10

700134104

AXLE

ASSY. rear, Includes: Ref. 16 and reflector

1шт.

11

700134109

FORK

WA

1шт.

12

6268841

WASHER

1шт.

13

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

1шт.

14

425-1412

JAM NUT,Jam, 3/4"-10, G5

OHJN, 3/4-10, GR2

1шт.

15

700715696

BUSHING

bronze

2шт.

16

700147338

SHAFT

pivot

1шт.

Part of Axle Assy. Ref. 10 P/N 700134104

1шт.

17

852947

BUSHING

machinery, narrow rim, 2-1/4 x 14 gauge

2шт.

18

103-11225

SNAP RING,#225, Ext

1шт.

19

700147738

SUPPORT

weight

1шт.

20

61-35052

HEX SOC SCREW,1/2"-13 x 3 1/4"

cap, hex socket head, 1/2-13 x 3-1/4

2шт.

21

231-5348

FLANGE NUT,Flg, 1/2"-13

lock, hex flange top, 1/2-13, GR/G

2шт.

22

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

6шт.

23

231-5348

FLANGE NUT,Flg, 1/2"-13

lock, hex flange top, 1/2-13, GR/G

6шт.

24

700147735

SUPPORT

weight, WA

1шт.

Выбрано товаров: 26
