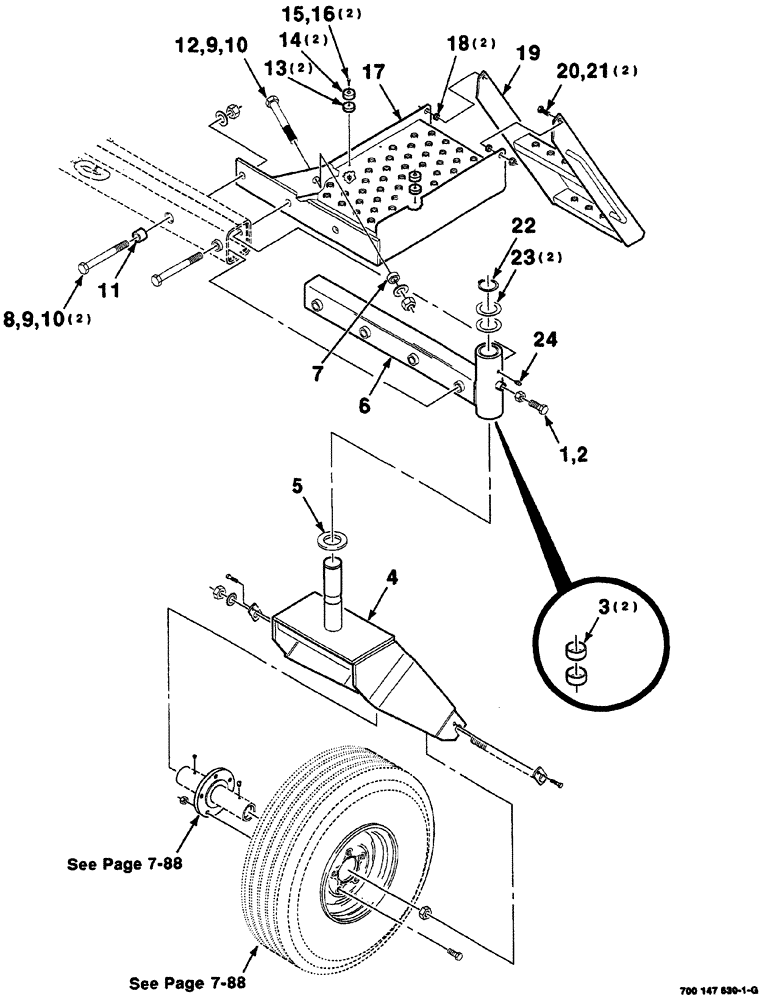

Запчасти Case IH 8860HP (07-82) - TAIL WHEEL AND STEP ASSEMBLY - LEFT (8860HP) (27) - REAR AXLE SYSTEM

1

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

1шт.

2

425-1412

JAM NUT,Jam, 3/4"-10, G5

HJN, 3/4-10, GR2

1шт.

3

700715696

BUSHING

bronze

2шт.

Part of Axle Assy. Ref. 6 P/N 700134104

1шт.

4

700134109

FORK

WA

1шт.

5

6268841

WASHER

1шт.

6

700134104

AXLE

ASSY. rear, Includes: Ref. 3 and reflector

1шт.

7

419291

SPACER

BUSHING

1шт.

8

700152419

PIN

ASSY.

2шт.

9

705574

WASHER,1 1/8" x 2" x .156", HDN

3шт.

10

232-41116

LOCK NUT,1"-8, GC

3шт.

11

700134128

BUSHING

1шт.

12

413-16128

BOLT,Hex, 1" - 8 x 8", Gr 5

hex, 1-8 x 7

1шт.

13

700134393

SPACER

2шт.

14

700708648

BUMPER

2шт.

15

7883291

SCREW,Hex Washer, 1/4" - 20 x 1 1/4"

machine, hex washer head, 1/4-20 x 1-1/4

2шт.

16

1703354

NUT

lock, hex flange top, 1/4-20, GR/G

2шт.

17

700134133

PLATE

PLATFORM ASSY., Includes: reflector

1шт.

18

6355697

LINK

BUSHING

2шт.

19

700134129

LADDER

WA

1шт.

20

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

21

231-5348

FLANGE NUT,Flg, 1/2"-13

lock, hex flange top, 1/2-13, GR/G

2шт.

22

103-11225

SNAP RING,#225, Ext

1шт.

23

852947

BUSHING

machinery, narrow rim, 2-1/4 x 14 gauge

2шт.

24

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.
