Запчасти Case IH 8860HP (07-80) - TAIL WHEEL AND AXLE ASSEMBLY - RIGHT (8860) (27) - REAR AXLE SYSTEM

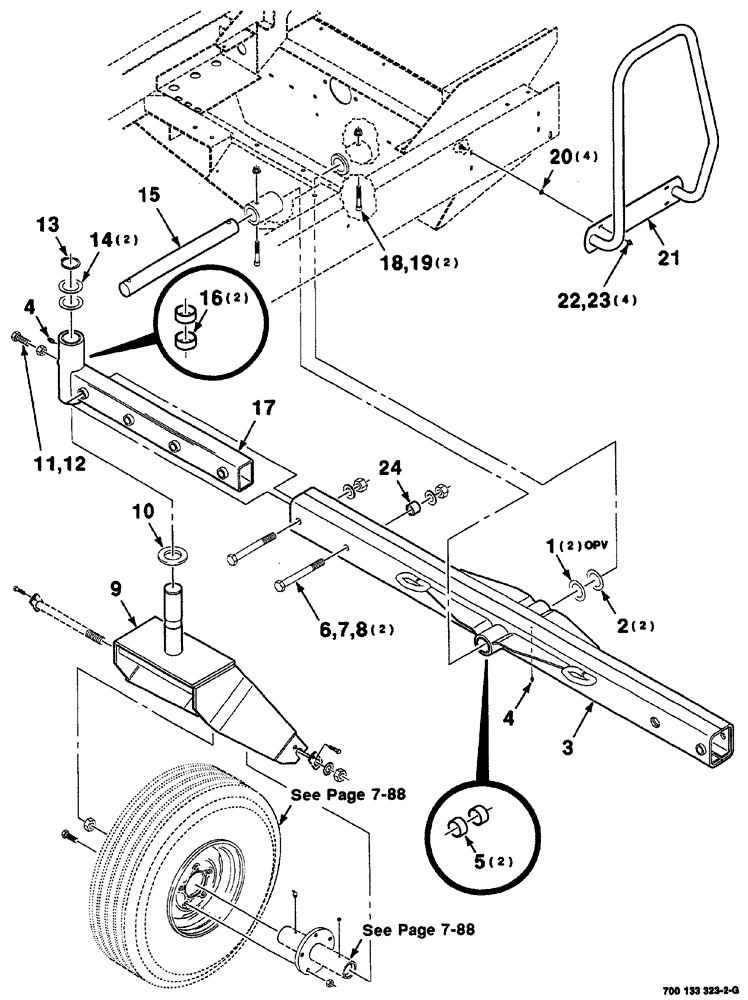

Схема запчастей Case IH 8860HP - (07-80) - TAIL WHEEL AND AXLE ASSEMBLY - RIGHT (8860) (27) - REAR AXLE SYSTEM
22
17
5
20
4
1
4
7
23
24
19
8
15
2
9
16
12
18
11
13
14
6
10
3
21

Артикул

Название

Примечание

Количество

1

7852866

BUSHING

machinery, narrow rim, 2 x 18 gauge

2шт.

2

52548

SPECIAL WASHER

BUSHING machinery, narrow rim, 2 x14 gauge

2шт.

3

700134096

BEAM

ASSY. tail wheel, Includes: Ref. 5

1шт.

4

219-8

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

5

852491

BRONZE BUSHING

BRONZE BUSH

2шт.

Part of Beam Assy. Ref. 3 P/N 700134096

1шт.

6

700152419

PIN

ASSY.

2шт.

7

705574

WASHER,1 1/8" x 2" x .156", HDN

2шт.

8

232-41116

LOCK NUT,1"-8, GC

2шт.

9

700134109

FORK

WA

1шт.

10

6268841

WASHER

1шт.

11

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

1шт.

12

425-1412

JAM NUT,Jam, 3/4"-10, G5

OHJN, 3/4-10, GR2

1шт.

13

103-11225

SNAP RING,#225, Ext

1шт.

14

852947

BUSHING

machinery, narrow rim, 2-1/4 x 14 gauge

2шт.

15

700147338

SHAFT

pivot

1шт.

16

700718489

BRONZE BUSHING

2шт.

Part of Axle Assy. Ref. 17 P/N 700134104

1шт.

17

700134104

AXLE

ASSY. rear, Includes: Ref. 16 and reflector

1шт.

18

61-35052

HEX SOC SCREW,1/2"-13 x 3 1/4"

cap, hex socket head, 1/2-13 x 3-1/4

2шт.

19

231-5348

FLANGE NUT,Flg, 1/2"-13

lock, hex flange top, 1/2-13, GR/G

2шт.

20

700711334

FASTENER

push-on

4шт.

21

700134125

RAIL

hand, WA

1шт.

22

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

4шт.

23

232-5315

FLANGE NUT,Flg, 5/16"-18

lock, hex flange top, 5/16-18, GR/G

4шт.

24

700134128

BUSHING

1шт.

Выбрано товаров: 26
