Запчасти Case IH 8860HP (05-06) - TRANSMISSION CONTROLS ASSEMBLY (14) - MAIN GEARBOX & DRIVE

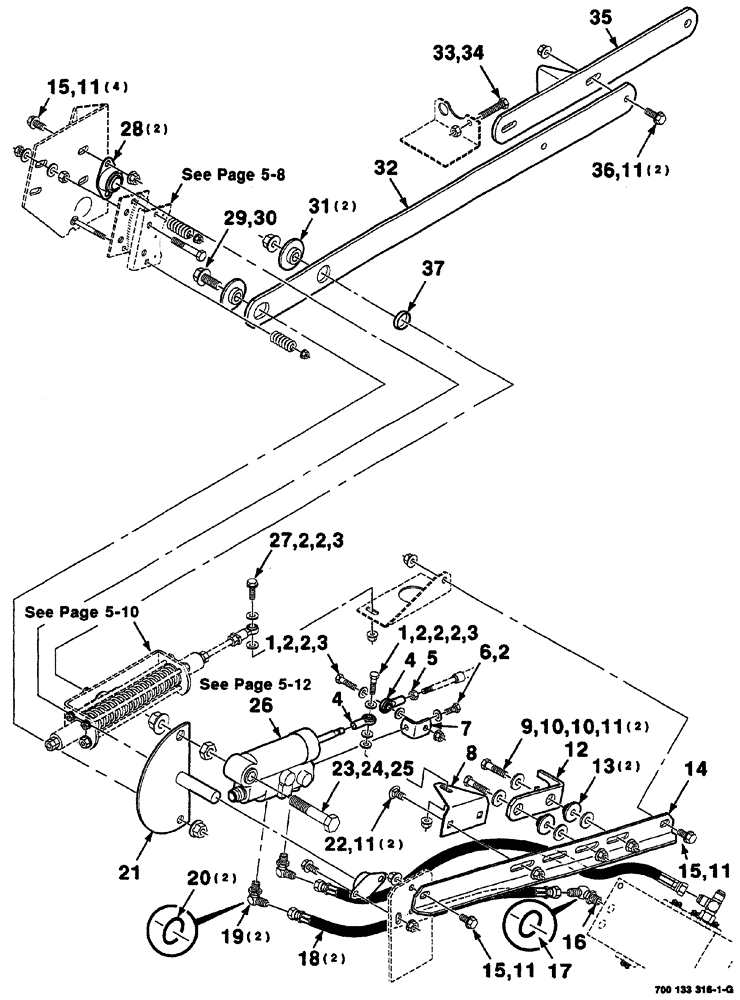

Схема запчастей Case IH 8860HP - (05-06) - TRANSMISSION CONTROLS ASSEMBLY (14) - MAIN GEARBOX & DRIVE
29
2
37
32
2
22
11
14
2
10
35
11
9
23
4
34
3
18
26
8
11
30
6
36
3
16
15
15
10
1
28
12
11
17
19
1
3
24
20
2
21
2
27
2
25
2
33
11
2
5
31
15
11
7
13

Артикул

Название

Примечание

Количество

1

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

2

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

8шт.

3

232-5315

FLANGE NUT,Flg, 5/16"-18

lock, hex flange top, GR/G, 5/16-18

3шт.

4

700710788

TRACK ROD END

BEARING rod

2шт.

5

425-115

NUT,5/16"-24, G5

1шт.

6

7773914

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

cap, hex, 5/16-24 x 3/4

1шт.

7

700134017

ANGLE

1шт.

8

700134018

SUPPORT

1шт.

9

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

10

496-81010

WASHER

plain, wide, hardened, 3/8

4шт.

11

232-5316

FLANGE NUT,Flg, 3/8"-16

lock, hex flange top, GR/G, 3/8-16

12шт.

12

700134019

ANGLE

adj

1шт.

13

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

MOUNT center bond

2шт.

14

700134020

ANGLE

support

1шт.

15

409-7612

BOLT,3/8"-16 x 1.09" OAL

6шт.

16

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Incl. Ref 17

1шт.

17

738468

O-RING

1шт.

Part of Elbow Ref. 16 P/N 218-5135

1шт.

18

7796840

HOSE

hydraulic

2шт.

19

700707498

ELBOW

90°, Includes: Ref. 20

2шт.

20

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

21

700134013

SHAFT

WA

1шт.

22

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

2шт.

23

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

cap, hex, 5/8-11 x 3-1/4

1шт.

24

425-1410

JAM NUT,Jam, 5/8"-11, G5

J, GR2, 5/8-11

1шт.

25

232-53110

FLANGE NUT,Flg, 5/8"-11

1шт.

26

700715442

CYLINDER ASSY.

SERVO control

1шт.

27

121-108

BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr

machine, hex washer head, 5/16-18 x 1

1шт.

28

A63366

SPHERICAL BEARING,19mm ID

2шт.

29

700710984

SCREW,Hex Flg, 1/2" x 1 1/4", G8 NC

1шт.

30

231-5348

FLANGE NUT,Flg, 1/2"-13

lock, hex flange top, GR/G, 1/2-13

1шт.

31

700134394

WASHER

special

2шт.

32

700134008

STRAP

1шт.

33

113-235

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5, Full Thd

1шт.

34

425-106

NUT,3/8"-16, Cl 5

1шт.

35

700134342

STRAP

adjustment

1шт.

36

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

2шт.

37

8052243

BUSHING,25.552 mm ID x 28.613 mm OD x 6.3 mm

BEARING

1шт.

Part of Elbow Ref. 19 P/N 700707498

1шт.
