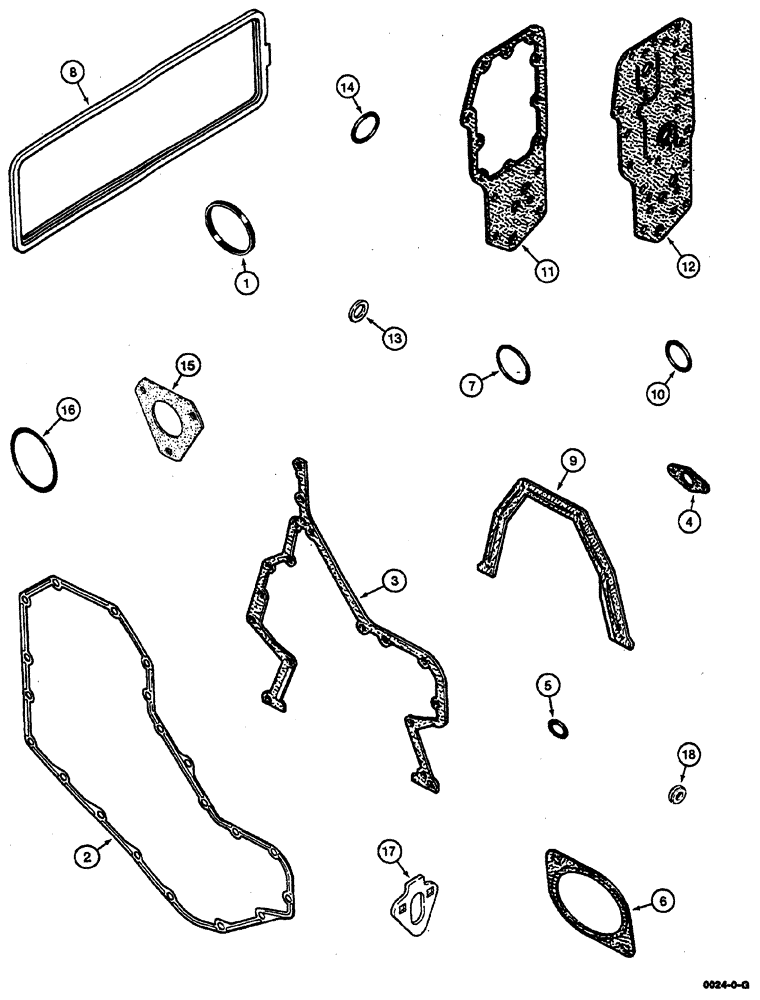

Запчасти Case IH 8860HP (10-54) - GASKET KIT (4-390 EMISSIONS CERTIFIED ENGINE) (10) - ENGINE

A77860

GASKET KIT

cylinder block, Includes Ref: 1-18

1шт.

For complete engine overhaul, order (1) cylinder block kit, (1) valve grind kit on page 10-51 or 10-53 (1) oil pan kit on page 10-23 (1) front and rear crankshaft seal kit on page 10-41 and the required cylinder head gasket on page 10-25.

1шт.

1

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

front access cover

1шт.

2

J914385

GASKET,1.02mm Thk

front, Serial Range: cover,-housing

1шт.

3

J931351

GASKET

gear housing, timing

1шт.

4

J905595

GASKET

timing pin housing

1шт.

5

J913994

O-RING

sealing, timing pin

1шт.

6

J929751

GASKET

access cover plate, accessory drive

1шт.

7

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

Water pump to cylinder block

1шт.

8

J283767

GASKET,7.4mm Thk

tappet cover

1шт.

9

J928493

GASKET

rear cover retainer, crankshaft

1шт.

10

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING sealing, 50 mm ID, water inlet connection

1шт.

11

J942914

GASKET

oil cooler core

1шт.

13

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

sealing, plug, oil pan

1шт.

14

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

O-RING 38 mm (1-1/2") ID, engine oil fill tube

1шт.

15

J931607

GASKET

pump mounting, oil filter plug

1шт.

16

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING flywheel, Serial Range: housing-block

1шт.

17

J931059

GASKET

mounting, fuel transfer pump

1шт.

18

J928759

SEALING WASHER

cover bolt

6шт.
