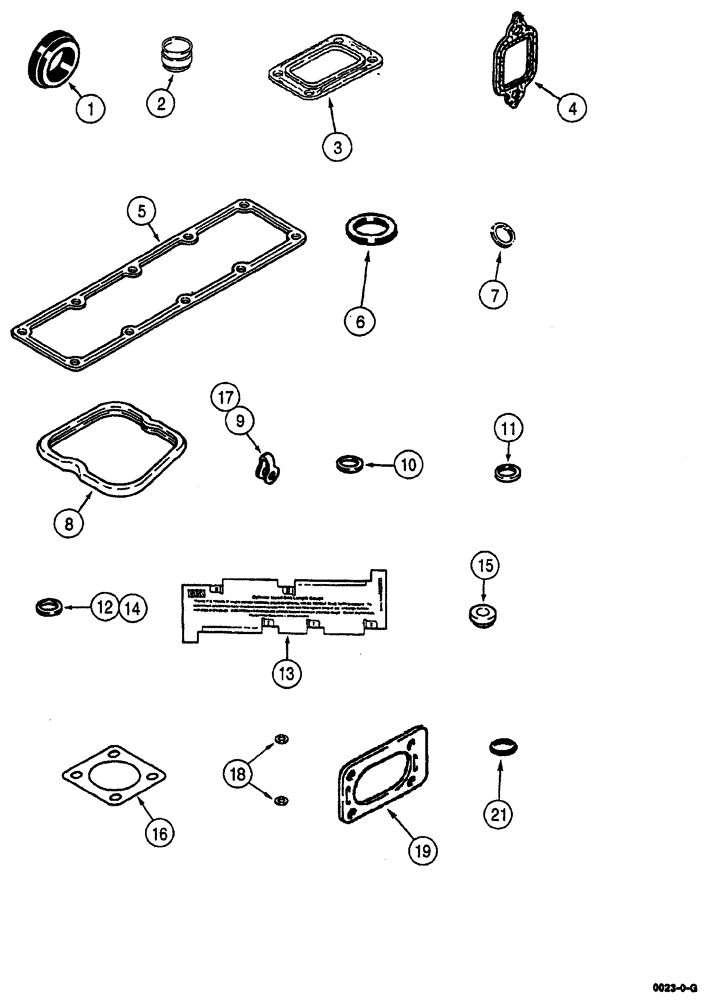

Запчасти Case IH 8860HP (10-52) - GASKET KIT (4T-390 EMISSIONS CERTIFIED ENGINE) (10) - ENGINE

A77975

GASKET KIT

valve grind, Replaces: A77914, Includes Ref: 1-5

1шт.

When just the valve grind gasket kit is used, also order the required cylinder head gasket, page 10-25.

1шт.

1

J923331

GASKET

thermostat housing

1шт.

2

J921640

SEAL

valve, intake, identified by color orange with silver band

8шт.

3

J919369

GASKET,0.5mm Thk

, Serial Range: turbocharger-manifold

1шт.

4

J927154

GASKET,0.38mm Thk

exhaust manifold

4шт.

5

J938153

MANIFOLD GASKET,0.8mm Thk

intake manifold

1шт.

6

J902363

O-RING,30mm ID x 48mm OD x 3mm Thk

oil fill cap, Includes Ref: 7-16

1шт.

7

J900808

SEAL

injector nozzle, 9 mm injector tip

4шт.

8

J930906

GASKET

rocker arm cover

4шт.

9

J903380

SEAL

connector, fuel drain manifold tube

4шт.

10

J906659

SEAL

injector nozzle, 7 mm injector tip

4шт.

11

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

sealing, Serial Range: body-nut

4шт.

12

J923261

WASHER,7.2mm ID x 15mm OD x 2.5mm Thk

SEAL injector nozzle, 2.5 mm thick, 7 mm injector tip

4шт.

13

J823921

GAUGE

cylinder head, bolt length

1шт.

14

J930324

SEAL

injector nozzle, 7 mm injector tip

4шт.

15

J935449

ISOLATOR,10.2mm ID x 19mm OD x 10.1mm L

noise, rocker arm cover

4шт.

16

J912220

GASKET,0.4mm Thk

steel

1шт.

17

J903380

SEAL

connector, Includes Ref: 18-21

1шт.

18

J918188

WASHER,7.8mm ID x 13.5mm OD x 1.2mm Thk

sealing

2шт.

19

J914856

GASKET,1.02mm Thk

air crossover connection, not shown

1шт.

20

J285747

GASKET

oil drain, not shown

1шт.

21

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

cover bolt

4шт.
