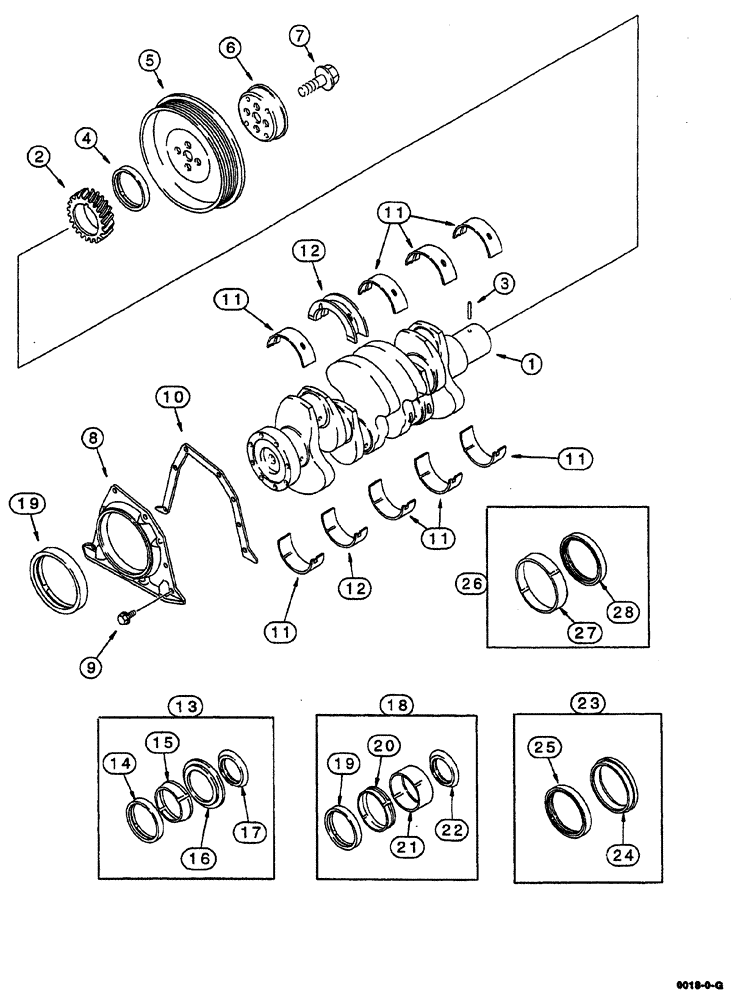

Запчасти Case IH 8860HP (10-40) - CRANKSHAFT (4-390 AND 4T-390 EMISSIONS CERTIFIED ENGINE) (10) - ENGINE

JR908031

CRANKCASE

engine, remanufactured, North America only, component parts shown on this page do not apply to the remanufactured assembly, for service order J908031 crankshaft assembly, Ref. 1, Includes Ref 2, 3

1шт.

J929036R

REMAN-CRANKSHAFT

8860, 8860HP BOTH EMISSIONS, Reman for New P/N JR908031

1шт.

J929036C

CORE-CRANKSHAFT

Return Number

1шт.

JC908031

CORE-CRANKSHAFT

RETURN NUMBER use this part number to return crankshaft for credit when using a remanufactured assembly, Includes Ref: 2, 3

1шт.

1

J908031

CRANKSHAFT

ASSY. engine, Includes Ref: 2, 3

1шт.

J929036R

REMAN-CRANKSHAFT

8860, 8860HP BOTH EMISSIONS, Reman for New P/N J908031

1шт.

J929036C

CORE-CRANKSHAFT

Return Number

1шт.

2

J929027

PINION

GEAR crankshaft

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

dowel

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL oil, crankshaft front, order Ref. 13, A77889 kit

1шт.

5

J914494

PULLEY,181.25mm OD

crankshaft vibration damper

1шт.

6

J903829

ADAPTER

FLANGE adapter, pulley

1шт.

7

J903857

BOLT,Hex, M12 x 1.25 x 36mm

hex flange, special, 12-1.25 x 36 mm

4шт.

8

J936260

REAR COVER

RETAINER seal, Replaces: J921043

1шт.

9

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

Heavy

6шт.

10

J928493

GASKET

rear cover retainer

1шт.

11

J804940

BEARING SET

main, standard, upper and lower set, 4-390 engine

4шт.

11

A77405

CRANKSHAFT BEARING

main, standard, upper and lower set, 4T-390 engine

4шт.

11

A77472

BEARING SET

main, undersize, upper and lower set, 0.25 mm

4шт.

11

A77474

BEARING SET

main, undersize, upper and lower set, 0.50 mm

4шт.

11

A77476

BEARING SET

main, undersize, upper and lower set, 0.75 mm

4шт.

11

A77478

BEARING SET

main, undersize, upper and lower set, 1.00 mm

4шт.

12

A77895

THRUST BEARING,KIT

main thrust, standard, upper and lower set, 4-390 engine

1шт.

12

A77896

BEARING SET

main thrust, standard, upper and lower set, 4T-390 engine

1шт.

12

A77473

THRUST BEARING

main, undersize, upper and lower set, 0.25 mm

1шт.

12

A77475

THRUST BEARING

main, undersize, upper and lower set, 0.50 mm

1шт.

12

A77477

THRUST BEARING

main, undersize, upper and lower set, 0.75 mm

1шт.

12

A77479

THRUST BEARING

main, undersize, upper and lower set, 1.00 mm

1шт.

12

A77841

THRUST BEARING

main, upper and lower set, 0.50 mm undersize, 0.50 mm oversize

1шт.

12

A77840

THRUST BEARING

main, upper and lower set, 1.00 mm undersize, 1.00 mm oversize

1шт.

13

A77889

SEAL PACKAGE

oil, crankshaft front, Includes Ref: 14-17

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL oil, front

1шт.

15

NSS

NOT SOLD SEPARAT

TOOL installation

1шт.

16

NSS

NOT SOLD SEPARAT

TOOL installation

1шт.

17

NSS

NOT SOLD SEPARAT

SHIELD dust

1шт.

18

A77890

SEAL PACKAGE

oil, crankshaft front, Includes: wear sleeve, Includes Ref: 19-22

1шт.

19

NSS

NOT SOLD SEPARAT

SEAL oil, front

1шт.

20

NSS

NOT SOLD SEPARAT

SLEEVE wear, not shown

1шт.

21

NSS

NOT SOLD SEPARAT

TOOL installation

1шт.

22

NSS

NOT SOLD SEPARAT

SHIELD dust

1шт.

23

J934486

SERVICE KIT

KIT oil, crankshaft rear, replaces A77809, Includes Ref: 24, 25

1шт.

24

NSS

NOT SOLD SEPARAT

TOOL installation

1шт.

24

NSS

NOT SOLD SEPARAT

TOOL installation

1шт.

25

NSS

NOT SOLD SEPARAT

SEAL oil, rear

1шт.

26

A77810

SERVICE KIT

oil, crankshaft rear, Includes: wear sleeve, Includes Ref: 27, 28

1шт.

27

NSS

NOT SOLD SEPARAT

SLEEVE wear

1шт.

28

NSS

NOT SOLD SEPARAT

SEAL oil, rear, oversize

1шт.
