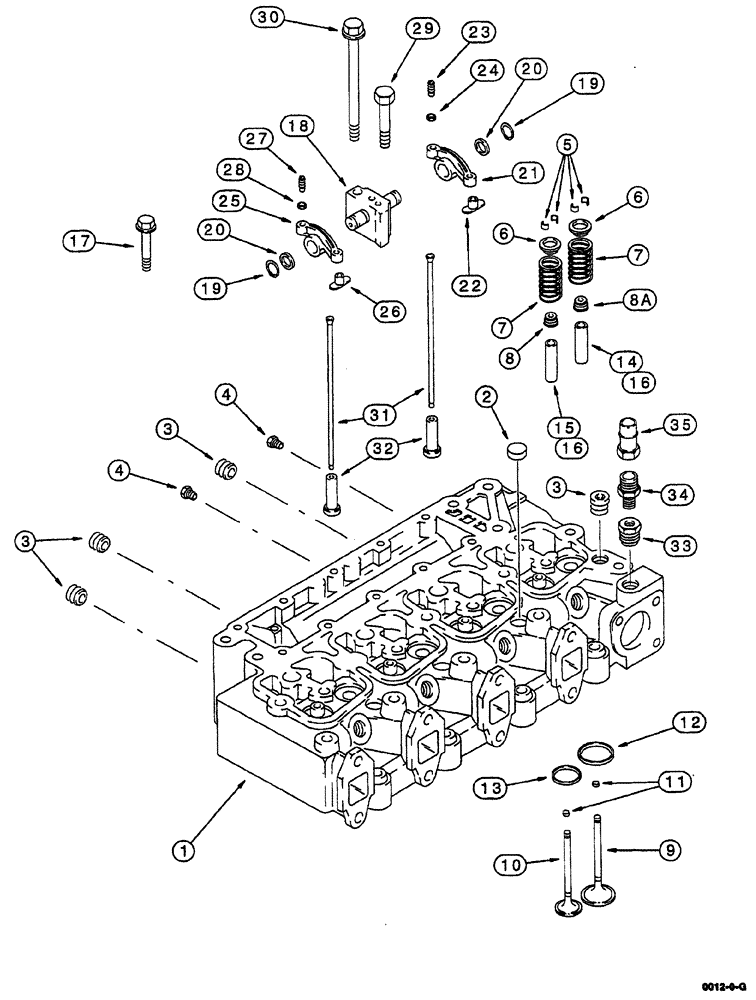

Запчасти Case IH 8860HP (10-28) - CYLINDER HEAD AND VALVE MECHANISM (4T-390 EMISSIONS CERTIFIED ENGINE) (10) - ENGINE

JR927330

REMAN-CYLINDER HEAD

ASSY., North America only, component parts shown on this page do not apply to the remanufactured assembly, Includes Ref. 1-10

1шт.

JC927330

CORE-CYLINDER HEAD

RETURN NUMBER use this part number to return head for credit when using a remanufactured assembly, Includes Ref. 1-10

1шт.

1

J927330

HEAD (CYLINDER)

ASSY., new, with valves, Includes Ref. 1-10

1шт.

1

J933422

HEAD (CYLINDER)

ASSY., new, without valves, Replaces: J917433

1шт.

2

A77783

PLUG

expansion, 21 mm OD

3шт.

3

217-466

DRAIN PLUG,Sq Soc, 1/2" - 14, NTPF

One removed to install temperature sending unit

5шт.

4

J906619

PLUG,1/8" - 27

hex, 1/8" PT

2шт.

5

CASJ900250

RETAINER

KEEPER valve

16шт.

6

J935038

RETAINER

valve spring, Replaces: J900299

8шт.

7

J926700

VALVE SPRING

8шт.

8

J921640

SEAL

valve, Replaces: J901097

4шт.

8a

J921640

SEAL

valve

4шт.

9

J920867

VALVE

intake

4шт.

10

J920868

VALVE

exhaust

4шт.

11

J910412

WEAR PAD

service repair only for valve stem tip, for use on intake and exhaust valves, Replaces: J280911

1шт.

12

J906854

SEAT, VALVE

insert, intake, service repair only

4шт.

13

J904105

SEAT, VALVE

insert, exhaust, service repair only

4шт.

14

J904408

GUIDE

valve, intake, 14 mm OD, service repair only

4шт.

This part is semi-finished valve guide.

1шт.

15

J904409

GUIDE

valve, exhaust, 14 mm OD, service repair only

4шт.

This part is semi-finished valve guide.

1шт.

16

J906206

GUIDE

valve, intake and exhaust, 11 mm OD, service repair only

8шт.

This part is semi-finished valve guide.

1шт.

17

J920779

BOLT,Flng, M12 x 1.75 x 70mm, Cl 12.9

Cylinder head, 70 mm long

4шт.

17

J920780

BOLT,Flng, M12 x 1.75 x 120mm, Cl 12.9

Cylinder head, 120 mm long

10шт.

18

J922488

SUPPORT

SHAFT ASSY. rocker arm

4шт.

19

J900242

SNAP RING

retaining, rocker arm

8шт.

20

J900245

WASHER

thrust, rocker arm

8шт.

21

J910811

ROCKER

ARM ASSY. intake, Includes Ref: 22, 23, 24

4шт.

22

NSS

NOT SOLD SEPARAT

INSERT rocker arm

1шт.

23

J934086

ADJUSTMENT SCREW,3/8" - 24 x 29.85mm

ARM ASSY. rocker, exhaust, Replaces: J900706

1шт.

24

A77902

NUT

hex, 3/8" NF, Replaces: 425-116

1шт.

25

J910810

ROCKER

ARM ASSY. exhaust, Includes Ref: 26, 27, 28

4шт.

26

NSS

NOT SOLD SEPARAT

INSERT rocker arm

1шт.

27

J934086

ADJUSTMENT SCREW,3/8" - 24 x 29.85mm

ARM ASSY. rocker, exhaust, Replaces: J900706

1шт.

28

A77902

NUT

hex, 3/8" NF, Replaces: 425-116

1шт.

29

814-8075

BOLT,Hex, M8 x 1.25 x 75mm, Cl 8.8

4шт.

30

J920781

BOLT,Flng, M12 x 1.75 x 180mm, Cl 12.9

Rocker arm and cylinder head, 180 mm long

4шт.

31

J284377

PUSH ROD

rocker arm, Replaces: J923262

8шт.

32

J931623

TAPPET

valve, push rod

8шт.

33

J922503

COUPLING

ADAPTER straight, 1/2 PT x 1/4" female PT, Replaces: 217-1109

1шт.

34

J935152

VALVE

check, Replaces: J911901

1шт.

35

217-112

FITTING,3/8" Hose x 3/8" NPTF, Fem, Barbed

Straight, 3/8 barb end x 3/8" female PT, no longer used

1шт.
