Запчасти Case IH 8860HP (10-10) - MANIFOLDS - EXHAUST AND INTAKE (4-390 EMISSIONS CERTIFIED ENGINE) (10) - ENGINE

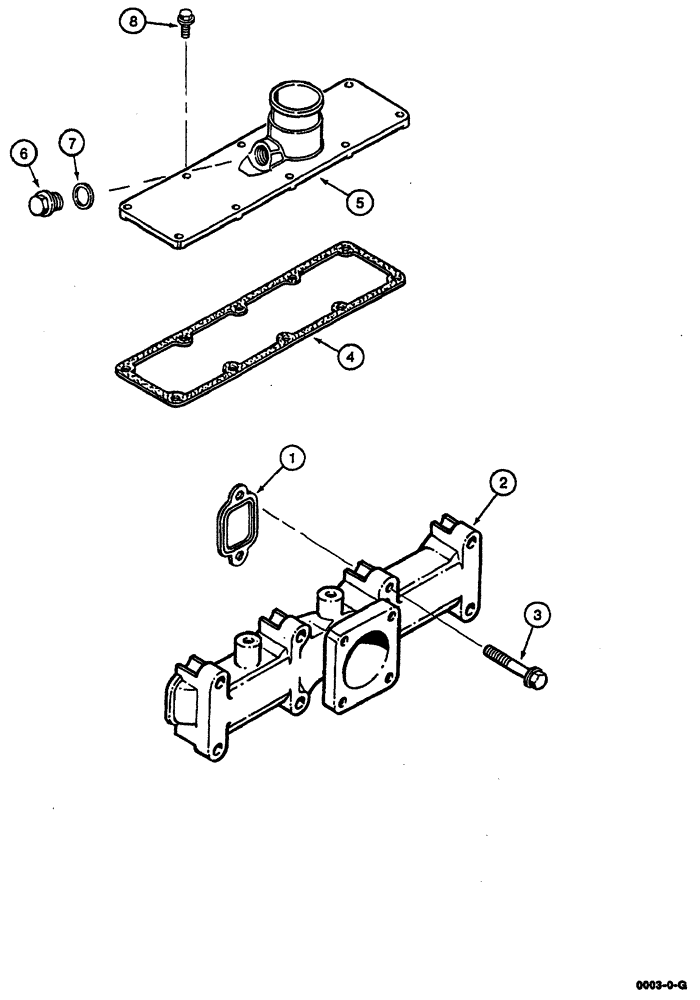

Схема запчастей Case IH 8860HP - (10-10) - MANIFOLDS - EXHAUST AND INTAKE (4-390 EMISSIONS CERTIFIED ENGINE) (10) - ENGINE
1
6
4
7
5
8
3
2

Артикул

Название

Примечание

Количество

1

J927154

GASKET,0.38mm Thk

exhaust manifold, Replaces: J905443

1шт.

2

J902274

MANIFOLD

exhaust

1шт.

3

J901448

FLANGE BOLT,Hex, M10 x 65mm

Cl 10.9

8шт.

4

J931605

BOLT

intake manifold

1шт.

A77415

COVER

KIT intake manifold, no longer available, order Ref. 4 thru 6

1шт.

5

NSS

NOT SOLD SEPARAT

COVER intake

1шт.

6

J907185

PLUG

manifold, intake, remove to install cold start

1шт.

7

J906773

WASHER

plug sealing, intake

1шт.

8

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

Special, Intake

8шт.

Выбрано товаров: 9
