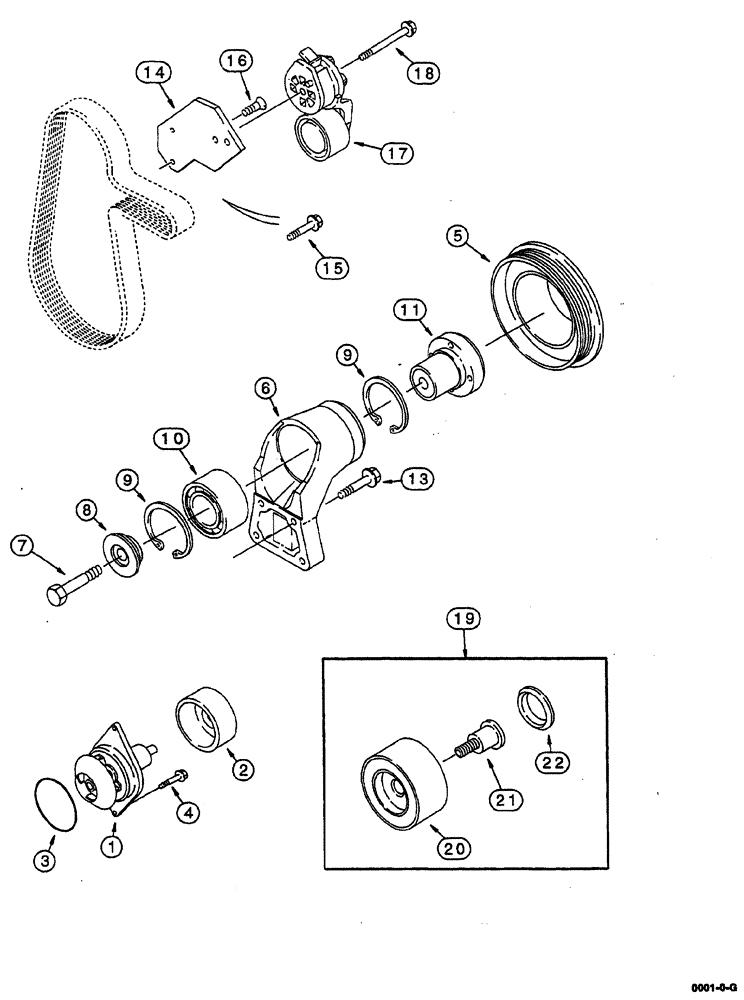

Запчасти Case IH 8860HP (10-06) - WATER PUMP SYSTEM (4-390 AND 4T-390 EMISSIONS CERTIFIED ENGINE) (10) - ENGINE

J802970

PUMP, WATER

KIT

1шт.

J286278R

REMAN-WATER PUMP

8860, 8860HP

1шт.

J286278C

CORE-WATER PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

PUMP ASSY. water

1шт.

2

NSS

NOT SOLD SEPARAT

PULLEY water pump

1шт.

3

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

(Replaces 238-5341)

1шт.

4

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

5

J914461

PULLEY

fan, 207 mm diameter, 0.87 to 1 ratio

1шт.

6

J913433

BRACKET

fan pulley

1шт.

7

J907769

BOLT,Hex, M10 x 70mm, Cl 12.9

hex, special, 10-1.5 x 70 mm, class 12.9

1шт.

8

J923044

RETAINER

fan hub

1шт.

9

100-21250

SNAP RING,2.50", Int, #250

2шт.

10

J910739

BALL BEARING,35mm ID x 64mm OD x 37mm W

1шт.

11

J911924

HUB

fan

1шт.

13

854-8040

BOLT,Hvy Hex, M8 x 40mm, Cl 10.9

4шт.

14

J934038

BRACKET

belt tensioner

1шт.

15

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

1шт.

16

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

Flat head cap, Special

1шт.

17

J934817

BELT TENSIONER

belt, no longer used, order J936202

1шт.

17

J936202

BELT TENSIONER

belt, Replaces: J934817

1шт.

18

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

Heavy

1шт.

19

A77817

KIT

belt tensioner pulley, no longer used, order J936202

1шт.

20

NSS

NOT SOLD SEPARAT

PULLEY belt tensioner

1шт.

21

NSS

NOT SOLD SEPARAT

BOLT pulley

1шт.

22

NSS

NOT SOLD SEPARAT

SEAL dust

1шт.
