Запчасти Case IH 8860HP (03-04) - FUEL LINE ASSEMBLIES (8860 80HP) (10) - ENGINE

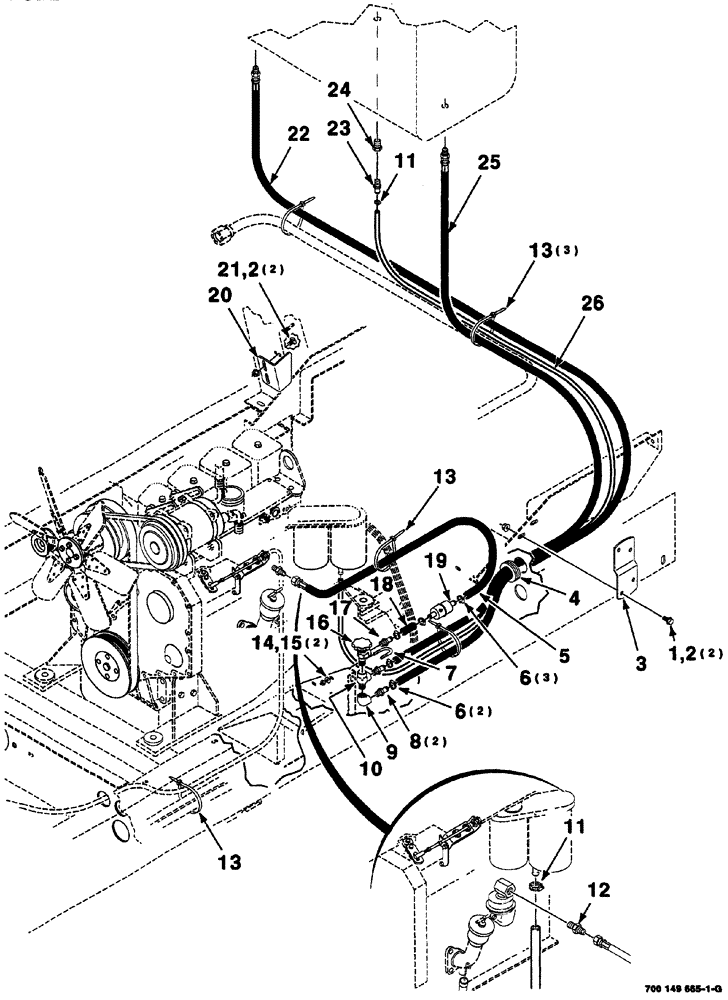

Схема запчастей Case IH 8860HP - (03-04) - FUEL LINE ASSEMBLIES (8860 80HP) (10) - ENGINE
21
2
24
15
13
18
22
23
13
6
13
5
11
11
20
1
8
25
19
17
26
14
3
2
16
12
4
9
10
7
6

Артикул

Название

Примечание

Количество

1

409-7612

BOLT,3/8"-16 x 1.09" OAL

2шт.

2

232-5316

FLANGE NUT,Flg, 3/8"-16

lock, hex flange top, GR/G, 3/8-16

4шт.

3

700133365

STOP

reservoir

1шт.

4

248-21114

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

1шт.

5

700715475

HOSE

fuel

1шт.

6

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

5шт.

7

700134311

U-BOLT,U, 1/4" - 20 x 1.75"

BOLT "U" 1/4-20

1шт.

8

217-122

FITTING,3/8" Hose Barb x 3/8" Male NPTF

INSERT barbed

2шт.

9

217-1052

ELBOW,3/8" - 18 NPTF Female

90°

1шт.

10

217-1063

TEE,3/8" - 18 Female x 3/8" - 18 Male Run

male, run

1шт.

11

7721020

HOSE CLAMP

2шт.

12

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

FITTING, STR

1шт.

13

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP TIE cable

5шт.

14

496-11028

WASHER,9/32" x 5/8" x .065, HDN

plain, hardened, 1/4

2шт.

15

425-104

NUT,1/4"-20, Cl 5

2шт.

16

700715390

VALVE

shutoff

1шт.

17

700715389

FITTING

BARB beaded hose

1шт.

18

700715374

HOSE

fuel

1шт.

19

194199A1

FUEL FILTER

fuel

1шт.

20

700134310

STOP

reservoir

1шт.

21

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

2шт.

22

700715473

HOSE

fuel

1шт.

23

7746662

INSERT

beaded

1шт.

24

31-512

REDUCER,3/8"-18 Male NPTF x 1/8"-27 Female NPTF

BUSHING

1шт.

25

700715476

HOSE

fuel

1шт.

26

700708559

FUEL HOSE,4.76 mm ID x 1600.00 mm, SAE 30R2 Type1

1шт.

Выбрано товаров: 26
