Запчасти Case IH 8860HP (09-14) - AUXILIARY SEAT ASSEMBLY (90) - PLATFORM, CAB, BODYWORK AND DECALS

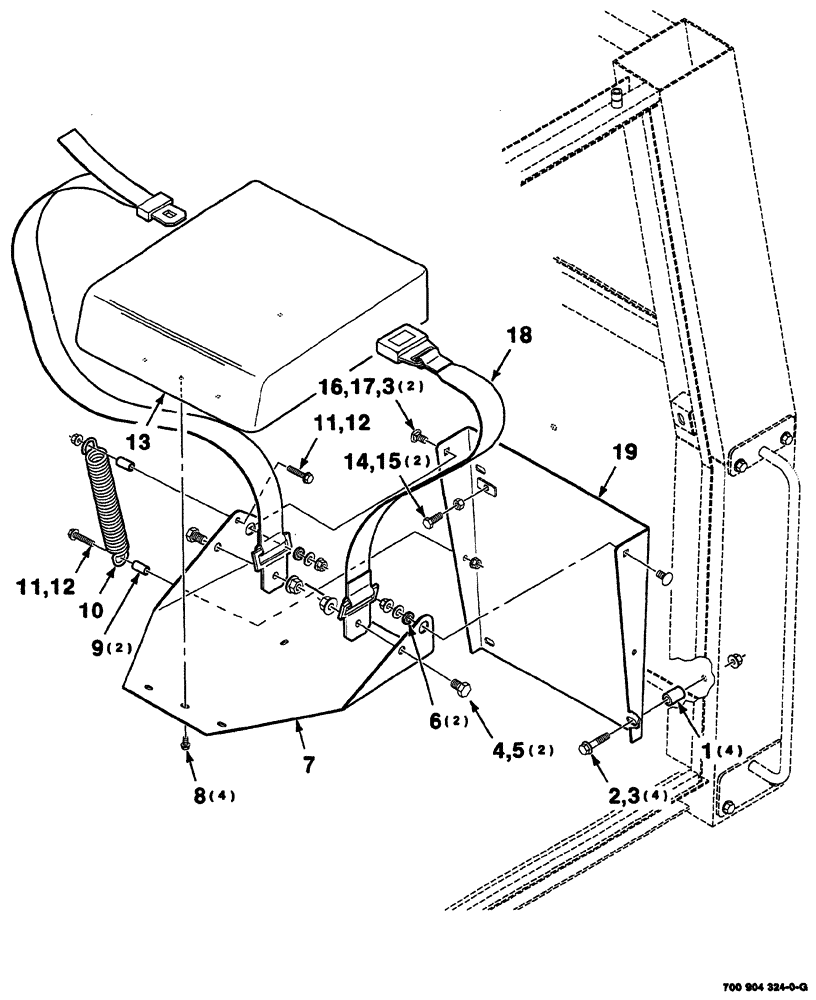

Схема запчастей Case IH 8860HP - (09-14) - AUXILIARY SEAT ASSEMBLY (90) - PLATFORM, CAB, BODYWORK AND DECALS
7
12
11
4
14
11
1
15
3
6
8
12
19
17
13
3
10
16
18
9
5
2

Артикул

Название

Примечание

Количество

HK60916

KIT auxiliary seat, complete

1шт.

1

147306

BUSHING

SPACER

4шт.

2

700711134

SCREW

hex flange, 3/8-16 x 1-3/4, GR8

4шт.

3

232-5316

FLANGE NUT,Flg, 3/8"-16

lock, hex flange top, 3/8-16, GR/G

6шт.

4

413-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

cap, hex, 1/2-13 x 3/4

2шт.

5

231-5348

FLANGE NUT,Flg, 1/2"-13

lock, hex flange top, 1/2-13, GR/G

2шт.

6

700134370

BUSHING

2шт.

7

700134367

SUPPORT

CHANNEL

1шт.

8

121-3

SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

9

190123C1

SPACER,1/2" Tube x 1"

2шт.

10

700713654

SPRING

extension

1шт.

11

163-56

SCREW,Hex Wshr Hd, 5/16" - 18 x 1 1/2", Gr 5

machine, hex washer head, 5/16-18 x 1-1/2

2шт.

12

232-5315

FLANGE NUT,Flg, 5/16"-18

lock, hex flange top, 5/16-18, GR/G

2шт.

13

117418A2

CUSHION

ASSY.

1шт.

14

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

15

425-106

NUT,3/8"-16, Cl 5

2шт.

16

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

2шт.

17

496-11041

WASHER,13/32" x 13/16" x .065", HDN

plain, hardened, 3/8

2шт.

18

741033

SAFETY BELT

ASSY. seat

1шт.

19

700134368

CHANNEL

WA

1шт.

Выбрано товаров: 20
