(09-10) - DECALS AND LOCATION DIAGRAM (CONTROL PANEL)

Запчасти Case IH 8860HP (09-10) - DECALS AND LOCATION DIAGRAM (CONTROL PANEL) (90) - PLATFORM, CAB, BODYWORK AND DECALS

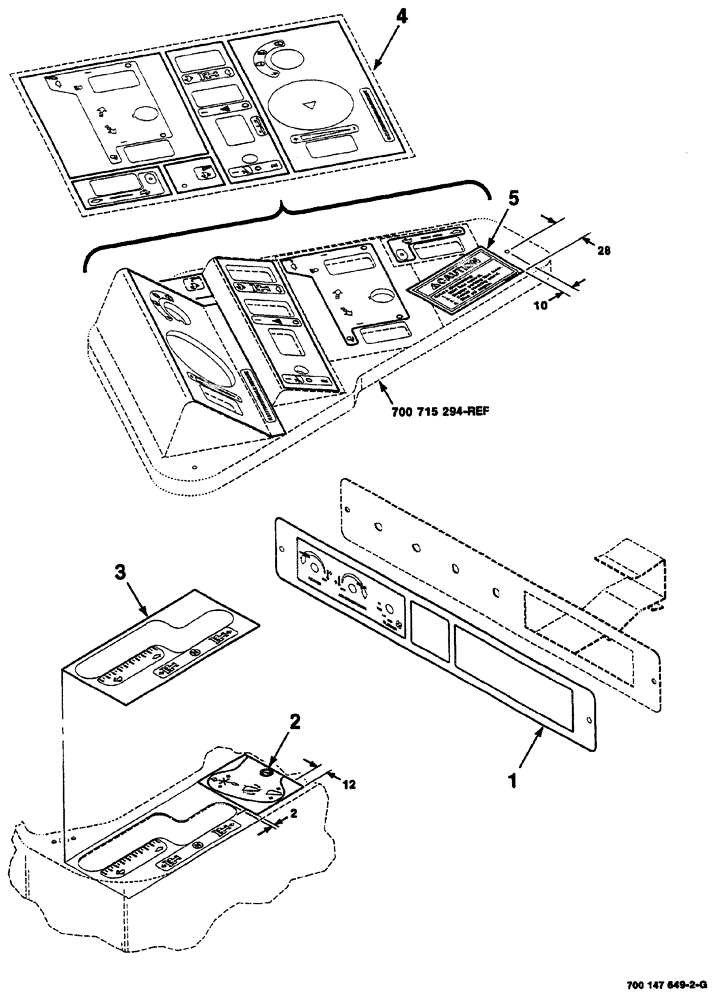

Схема запчастей Case IH 8860HP - (09-10) - DECALS AND LOCATION DIAGRAM (CONTROL PANEL) (90) - PLATFORM, CAB, BODYWORK AND DECALS
3
1
5
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700715248

DECAL

panel

1шт.

2

700716718

DECAL

handle functions

1шт.

3

700715403

DECAL

console panel

1шт.

4

700715402

DECAL

ASSY. console panel, contains 5 console decals

1шт.

5

700716374

DECAL

caution

1шт.

Выбрано товаров: 5
