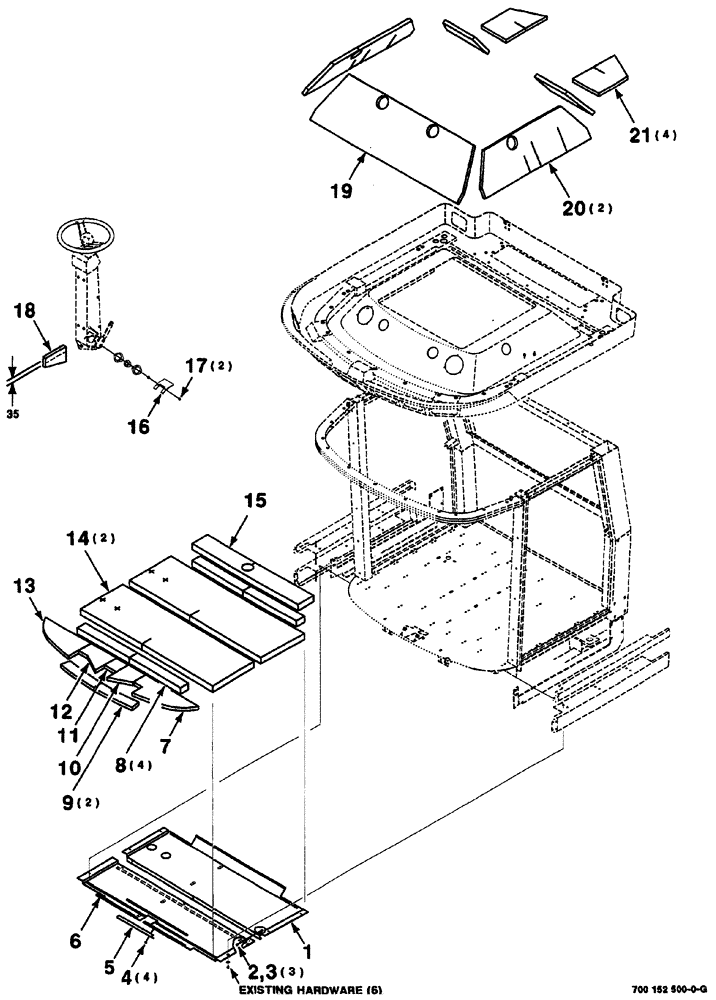

Запчасти Case IH 8860HP (07-30) - INSULATION ASSEMBLY (S.N. CFH0145400 AND LATER) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

700152503

PLATE

rear, WA

1шт.

2

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

3шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

3шт.

4

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

4шт.

5

700152506

ANGLE

1шт.

6

700152501

PLATE

front, WA

1шт.

7

700719319

FOAM

left

1шт.

8

700719321

FOAM

channel

4шт.

9

700719320

FOAM

front

2шт.

10

700719318

FOAM

left, center

1шт.

11

700719317

FOAM

center

1шт.

12

700719316

FOAM

right, center

1шт.

13

700719315

FOAM

right

1шт.

14

700719306

FOAM

2шт.

15

700719314

FOAM

rear

1шт.

16

700719322

PLASTIC

RETAINER foam

1шт.

17

232-5315

FLANGE NUT,Flg, 5/16"-18

lock, hex flange top, GR/G, 5/16-18

2шт.

18

700719418

FOAM

1шт.

19

700719311

FOAM

front, cab top

1шт.

20

700719312

FOAM

side, cab top

2шт.

21

700719313

FOAM

rear, cab top

4шт.
