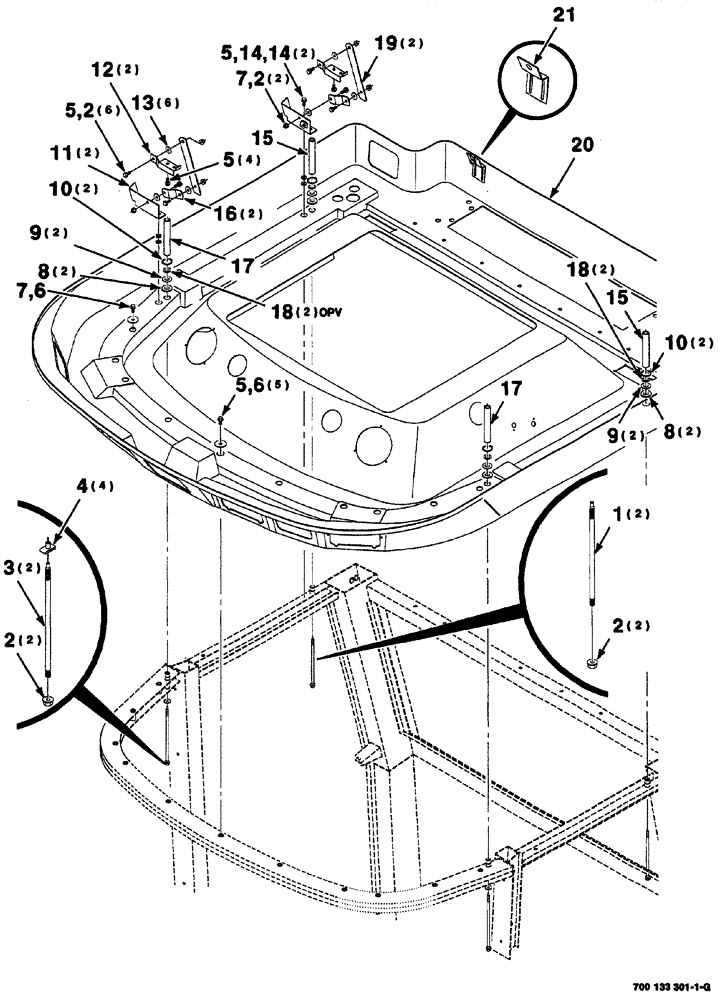

Запчасти Case IH 8860HP (07-22) - HEADLINER AND HINGE ASSEMBLIES (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

700133412

ROD

2шт.

2

232-5315

FLANGE NUT,Flg, 5/16"-18

lock, hex flange top, GR/G, 5/16-18

12шт.

3

700133415

ROD

2шт.

4

700715241

NUT

type U

4шт.

5

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

17шт.

6

700710049

WASHER

fender, 3/8

6шт.

7

121-108

BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr

machine, hex washer head, 5/16-18 x 1

3шт.

8

700715242

BUSHING

4шт.

9

495-11066

WASHER,5/8", SAE

BUSHING machinery, wide rim, 5/8 x 14 gauge

4шт.

10

103-1162

SNAP RING,#62, Ext

4шт.

11

700133401

SUPPORT

lower

2шт.

12

700133403

SUPPORT

2шт.

13

7825425

WASHER

fiber

6шт.

14

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

4шт.

15

700133416

ROD

TUBE spacer

2шт.

16

700133402

ARM

pivot

2шт.

17

700133409

SPACER

TUBE

2шт.

18

52175

BUSHING,25.48mm ID x 38.2mm OD x 3.17mm L

machinery, narrow rim, 5/8 x 18 gauge

4шт.

19

700133407

ARM

stop

2шт.

20

700715236

ROOF LINING

HEADLINER ASSY., S.N. CFH0145002 thru CFH0145399

1шт.

P/N 700719157 interchanges with P/N 700715236, but existing stock of P/N 700715236 should be used prior to ordering P/N 700719157.

1шт.

700719157

ROOF LINING

HEADLINER ASSY., S.N. CFH0145400 and later

1шт.

P/N 700719157 interchanges with P/N 700715236, but P/N 700719157 must be stocked for its respective effectivity.

1шт.

21

700133580

SUPPORT

rear

1шт.
