Запчасти Case IH 8860HP (07-14) - CAB WINDSHIELD AND MOUNTING ASSEMBLY (90) - PLATFORM, CAB, BODYWORK AND DECALS

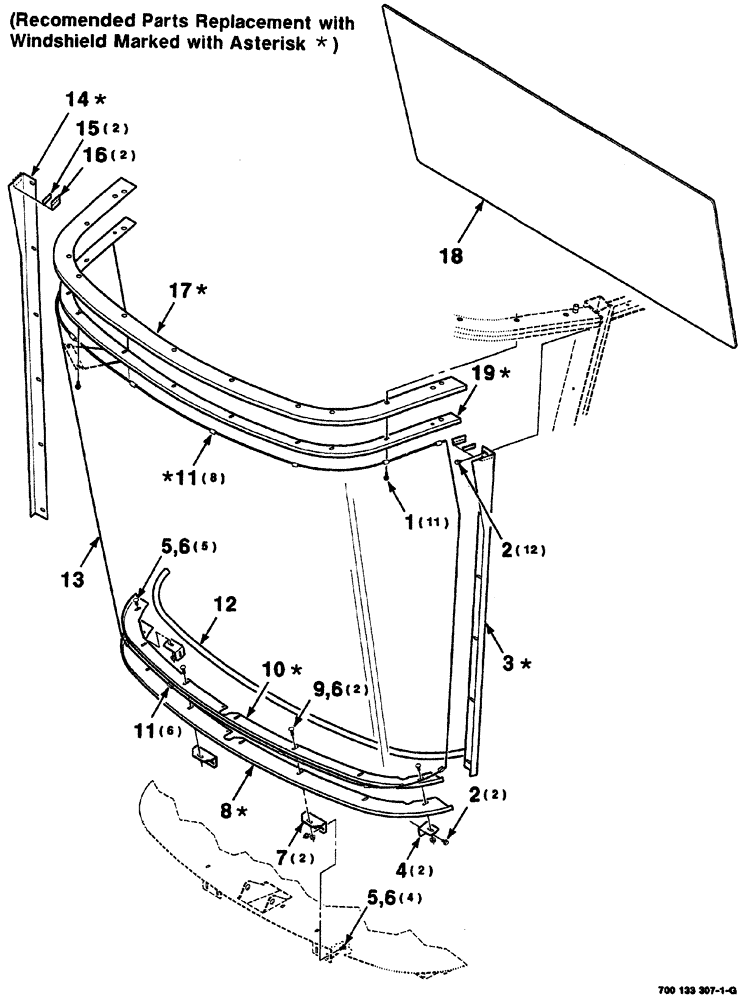

Схема запчастей Case IH 8860HP - (07-14) - CAB WINDSHIELD AND MOUNTING ASSEMBLY (90) - PLATFORM, CAB, BODYWORK AND DECALS
14
12
5
9
13
2
19
11
18
8
17
6
1
6
4
10
11
15
3
6
16
5
2
7

Артикул

Название

Примечание

Количество

700150295

CAB

GLASS ASSY., complete

1шт.

1

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

11шт.

2

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

14шт.

3

700133455

ADJUSTER

glass, left

1шт.

Recommended parts replacement with windshield.

1шт.

4

700133459

ADJUSTER

window

2шт.

5

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

9шт.

6

232-5315

FLANGE NUT,Flg, 5/16"-18

lock, hex flange top, GR/G, 5/16-18

11шт.

7

700133453

ADJUSTER

window

2шт.

8

700133438

RAIL

lower, outer

1шт.

Recommended parts replacement with windshield.

1шт.

9

111-237

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5

2шт.

10

700133437

RAIL

lower, inner

1шт.

Recommended parts replacement with windshield.

1шт.

11

700715285

PAD

rubber

14шт.

Recommended parts replacement with windshield.

1шт.

12

1990761C2

DOOR SEAL

1шт.

13

700715272

GLASS

front

1шт.

14

700133456

ADJUSTER

glass, right

1шт.

Recommended parts replacement with windshield.

1шт.

15

700134354

TAPE

adhesive

2шт.

16

700134352

STRAP

filler

2шт.

17

700133441

RAIL

upper

1шт.

Recommended parts replacement with windshield.

1шт.

18

700715273

GLASS

window, rear

1шт.

19

700133440

RAIL

upper, inner

1шт.

Recommended parts replacement with windshield.

1шт.

Выбрано товаров: 27
