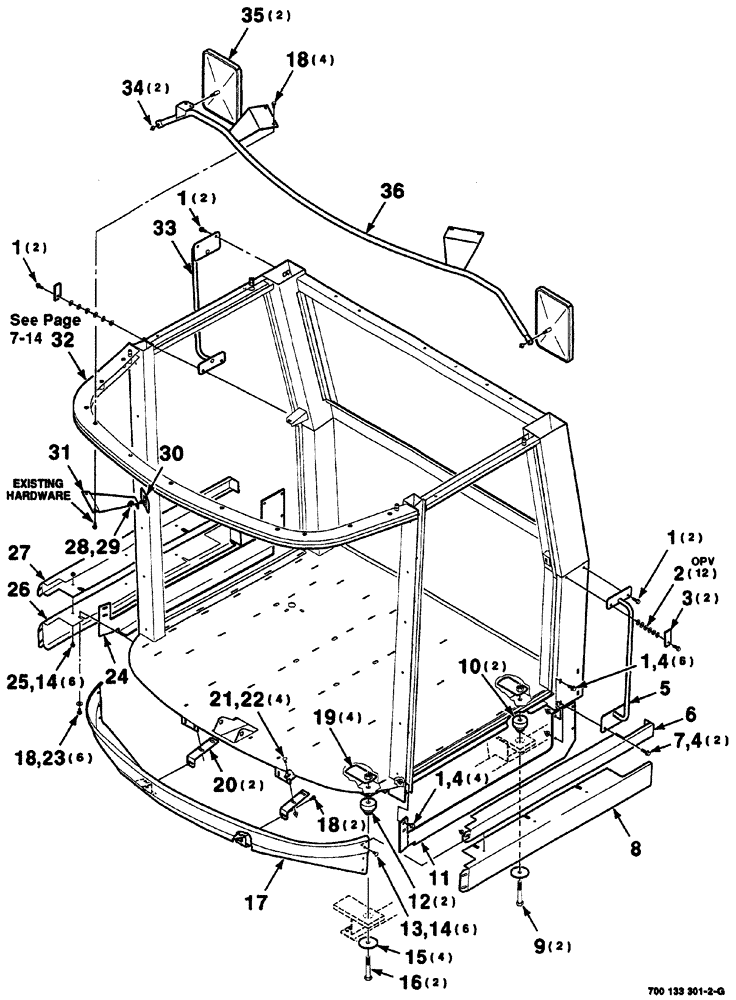

Запчасти Case IH 8860HP (07-12) - CAB FRAME, MIRROR AND SHIELD ASSEMBLIES (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

16шт.

2

496-11041

WASHER,13/32" x 13/16" x .065", HDN

plain, hardened, 3/8

12шт.

3

700716710

CLIP

door restraint

2шт.

4

232-5316

FLANGE NUT,Flg, 3/8"-16

lock, hex flange top, GR/G, 3/8-16

12шт.

5

700133417

HANDLE

WA

1шт.

6

700133388

SHIELD

left

1шт.

7

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

hex flange, 3/8-16 x 1-1/4, GR8

2шт.

8

700133391

SHIELD

left

1шт.

9

700152718

BOLT

special

2шт.

10

700716101

RUBBER SLEEVE

MOUNT cab, rear

2шт.

11

700150850

SUPPORT

cab, left

1шт.

12

A141451

SHOCK ABSORBER

MOUNT cab, front

2шт.

13

440-13112

SCREW,Cross Pan Hd, 5/16"-18 x 3/4"

machine, cross recess pan head, 5/16-18 x 3/4, GR60M

6шт.

14

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

12шт.

15

NLS

NO LONGER SERVICED

4шт.

16

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

hex, 5/8-11 x 4

2шт.

17

700715231

SHIELD

ASM, front, lower

1шт.

18

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

12шт.

19

700133424

PLATE

WA

4шт.

20

700133393

SUPPORT

shield

2шт.

21

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

4шт.

22

232-5315

FLANGE NUT,Flg, 5/16"-18

lock, hex flange top, GR/G, 5/16-18

4шт.

23

495-61034

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

plain, wide, 5/16

6шт.

24

700150851

SUPPORT

cab, right

1шт.

25

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

6шт.

26

700133392

SHIELD

right

1шт.

27

700133390

SHIELD

right

1шт.

28

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

1шт.

29

425-105

NUT,5/16"-18, G5

1шт.

30

A177462

MIRROR

rearview

1шт.

31

700133410

MOUNTING CLIP

mirror

1шт.

32

700150295

CAB

FRAME AND GLASS ASSY., Includes all items on Figure 07-14

1шт.

33

700133422

HANDLE

WA

1шт.

34

425-106

NUT,3/8"-16, Cl 5

2шт.

35

1283403C1

MIRROR

ASSY.

2шт.

36

700133394

PIPE

mirror mount, WA

1шт.
