Запчасти Case IH 8860HP (08-74) - HEADER CONTROL ASSEMBLY (STANDARD) (58) - ATTACHMENTS/HEADERS

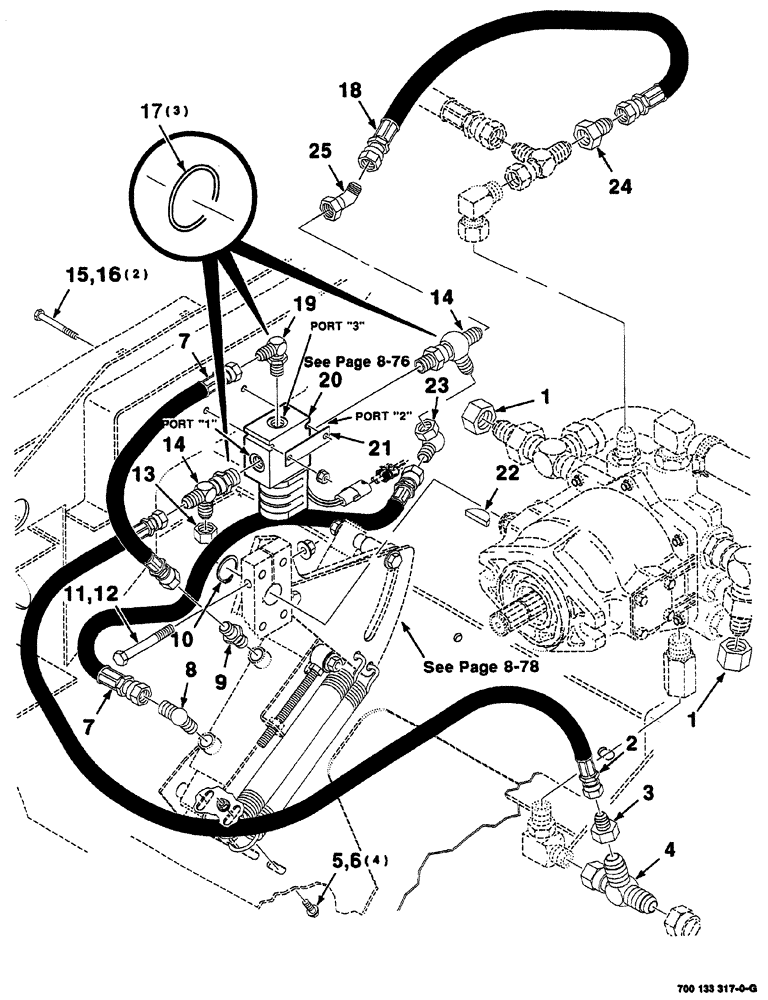

Схема запчастей Case IH 8860HP - (08-74) - HEADER CONTROL ASSEMBLY (STANDARD) (58) - ATTACHMENTS/HEADERS
2
20
16
1
12
4
9
7
8
13
5
3
7
14
23
10
14
15
21
18
25
19
17
22
6
11
24
1

Артикул

Название

Примечание

Количество

1

218-755

CAP,37 Degree, 3/4"-16

2шт.

2

1270453C1

HYDRAULIC HOSE

hydraulic

1шт.

3

700711771

REDUCER

ADAPTER

1шт.

4

218-5220

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

FITTING

1шт.

5

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

4шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

7

8742447

HOSE

hydraulic

2шт.

8

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

90°

1шт.

9

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

FITTING adapter

1шт.

10

100-1198

SNAP RING,#98, Ext

1шт.

11

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

12

232-5316

FLANGE NUT,Flg, 3/8"-16

lock, hex flange top, 3/8-16, GR/G

1шт.

13

218-754

CAP,37 Degree, 9/16"-18

1шт.

14

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes: Ref. 17

2шт.

15

413-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

2шт.

16

1703354

NUT

lock, hex flange top, 1/4-20, GR/G

2шт.

17

738468

O-RING

3шт.

Part of Elbow Ref. 19 P/N 218-5105

1шт.

Part of Fitting Ref. 14 P/N 218-5243

1шт.

18

7892557

HOSE

hydraulic

1шт.

19

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes Ref. 17

1шт.

20

700715996

VALVE

ASSY.

1шт.

21

700133598

STRAP

1шт.

22

126-117

WOODRUFF KEY,#91, 1/4" x 3/4", HT

1шт.

23

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

1шт.

24

7791361

FITTING

ADAPTER

1шт.

25

218-5172

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Female JIC

1шт.

Выбрано товаров: 27
