Запчасти Case IH 8860HP (07-74) - LIFT ARM AND FLOTATION ASSEMBLIES (LEFT 8860HP) (58) - ATTACHMENTS/HEADERS

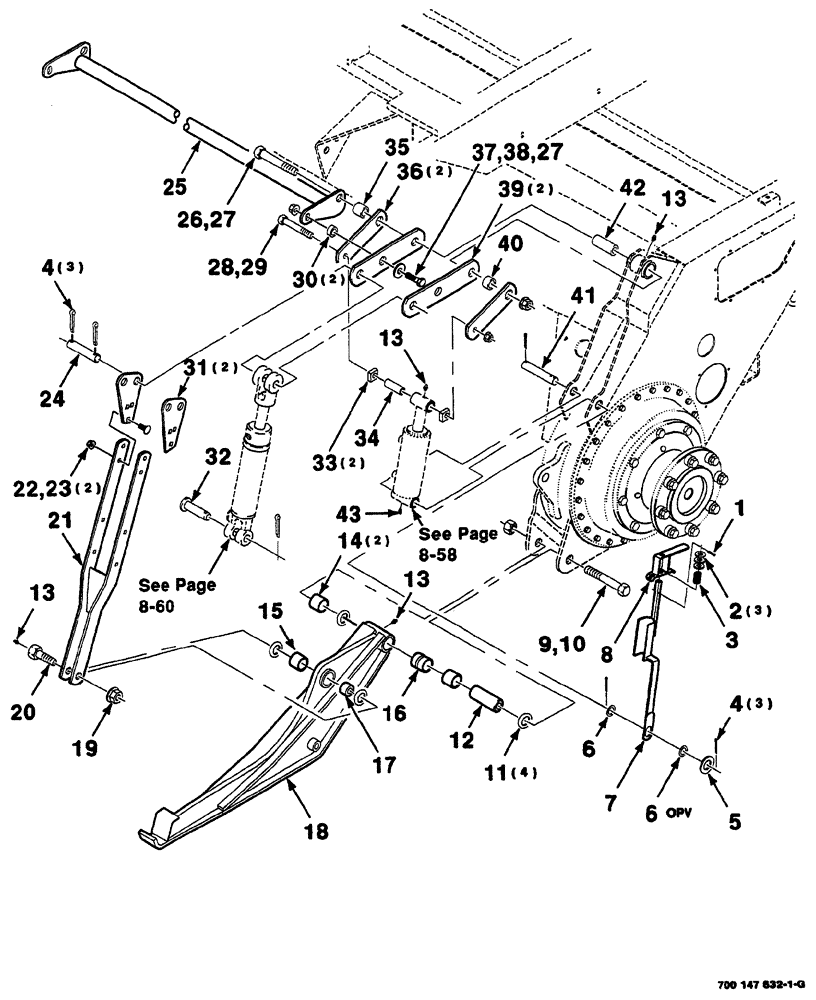

Схема запчастей Case IH 8860HP - (07-74) - LIFT ARM AND FLOTATION ASSEMBLIES (LEFT 8860HP) (58) - ATTACHMENTS/HEADERS
32
1
24
13
26
9
19
40
13
2
22
18
36
37
17
4
28
5
39
43
4
34
31
33
23
14
8
27
35
15
42
3
13
13
29
30
38
16
20
6
41
25
10
7
11
27
12
6
21

Артикул

Название

Примечание

Количество

1

432-1016

COTTER PIN,5/32" x 1"

5/32" x 1"

1шт.

2

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

5/8" bolt size

3шт.

3

8058000

SPRING

compression

1шт.

4

432-1228

COTTER PIN,3/16" x 1 3/4"

6шт.

5

705574

WASHER,1 1/8" x 2" x .156", HDN

1шт.

6

195-2103

WASHER,1 1/16" x 1 1/2" x .065"

BUSHING machinery, narrow rim, 1 x 18 gauge

2шт.

7

700134086

CHANNEL

WA

1шт.

8

700134091

LEVER

WA

1шт.

9

700118693

PIN

1шт.

10

232-41116

LOCK NUT,1"-8, GC

HTLN, 1-8, GR/B

1шт.

11

238-5222

O-RING,0.139" Thk x 1.48" ID, -222, Cl 5, 75 Duro

4шт.

12

700118691

SLEEVE,25.55mm ID x 38.34mm OD x 110mm L

1шт.

13

219-8

LUBE NIPPLE,1/4" - 28 NPTF

4шт.

14

56095R91

NEEDLE BEARING,Needle, 38.07mm ID x 47.64mm OD x 31.75mm W

needle

2шт.

15

A7851

NEEDLE BEARING,Needle, 38.09mm ID x 47.64mm OD x 25.4mm W

needle

1шт.

16

700134075

SPACER

1шт.

17

700134095

BUSHING,23.02mm ID x 38.34mm OD x 33.5mm L

1шт.

18

700134065

ARM

lift, left, WA

1шт.

19

232-53114

FLANGE NUT,Flg, 7/8"-9

lock, hex flange top, 7/8-9, GR/G

1шт.

20

700121584

BOLT,Hex, 7/8" - 9 x , Gr 5

special

1шт.

21

700147823

LINK

WA

1шт.

22

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

2шт.

23

231-5348

FLANGE NUT,Flg, 1/2"-13

lock, hex flange top, 1/2-13, GR/G

2шт.

24

700111102

PIN

1шт.

25

700134057

SHAFT

torque, WA

1шт.

26

413-12104

BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 5

hex, 3/4-10 x 6-1/2

1шт.

27

232-53112

FLANGE NUT,Flg, 3/4"-10

GR/G

2шт.

28

326-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 8

1шт.

29

232-53110

FLANGE NUT,Flg, 5/8"-11

1шт.

30

700134081

SPACER

2шт.

31

700147826

PLATE

2шт.

32

427-16350

CLEVIS PIN,25.4mm OD x 88.9mm L

clevis, 1 x 3-1/2

1шт.

33

700134076

CAM

2шт.

34

700134077

BUSHING

1шт.

35

6203756

SPACER

1шт.

36

700134078

STRAP

2шт.

37

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

1шт.

38

700711166

WASHER

plain, hardened, wide, 3/4

1шт.

39

700111085

STRAP

2шт.

40

6834071

BUSHING

1шт.

41

700134083

PIN

1шт.

42

700111080

BUSHING

arm

1шт.

43

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

Zerk, 1/4-28 x 45°

1шт.

Выбрано товаров: 43
