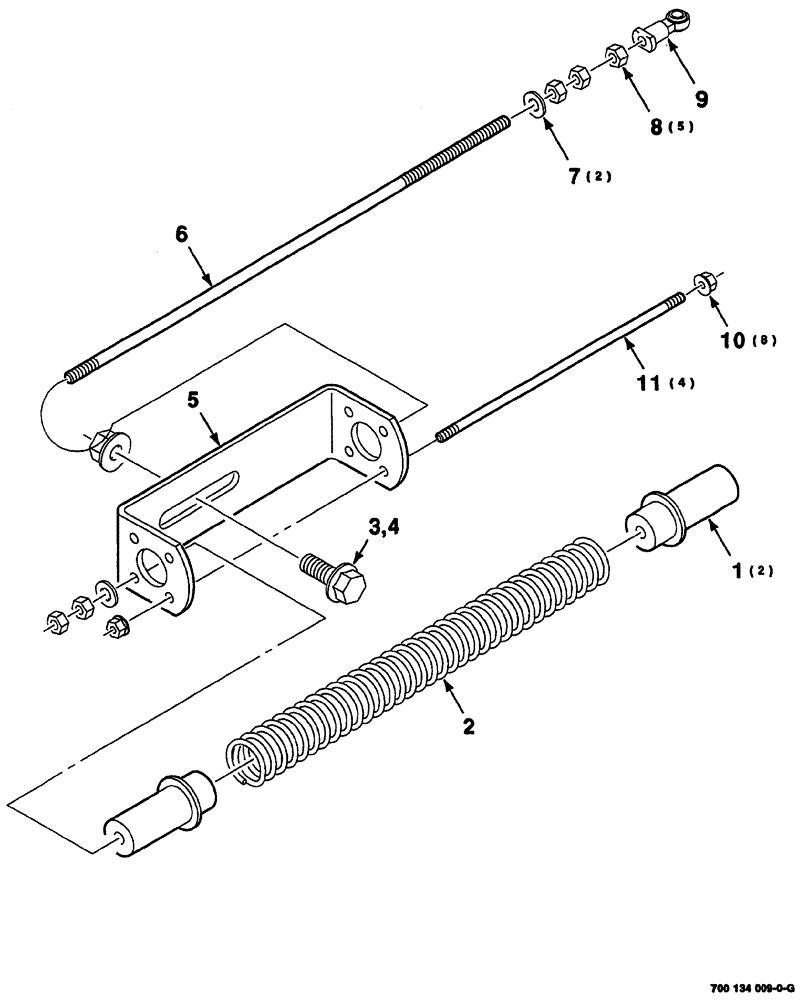

Запчасти Case IH 8860HP (05-10) - TENSIONER ASSEMBLY (58) - ATTACHMENTS/HEADERS

1

700715439

BUSHING

2шт.

2

7758485

SPRING

compression

1шт.

3

700710984

SCREW,Hex Flg, 1/2" x 1 1/4", G8 NC

1шт.

4

231-5348

FLANGE NUT,Flg, 1/2"-13

lock, hex flange top, GR/G, 1/2-13

1шт.

5

700134011

ANGLE

support

1шт.

6

700134010

ROD

threaded

1шт.

7

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

2шт.

8

425-115

NUT,5/16"-24, G5

5шт.

9

700710788

TRACK ROD END

ROD

1шт.

10

1703354

NUT

lock, hex flange top, GR/G, 1/4-20

8шт.

11

700134012

ROD

4шт.
