Запчасти Case IH 8860HP (07-68) - BATTERY BOXES AND MOUNTING ASSEMBLIES (55) - ELECTRICAL SYSTEMS

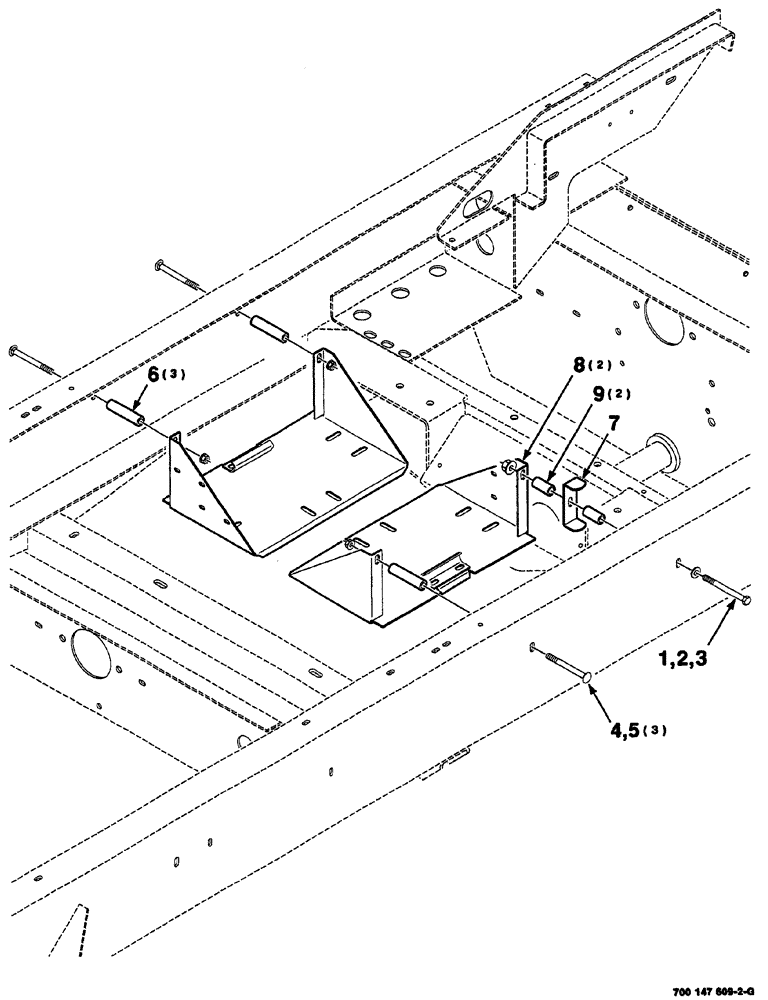

Схема запчастей Case IH 8860HP - (07-68) - BATTERY BOXES AND MOUNTING ASSEMBLIES (55) - ELECTRICAL SYSTEMS
6
2
9
1
8
3
7
5
4

Артикул

Название

Примечание

Количество

1

413-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

cap, hex, 3/8-16 x 4-1/2

1шт.

2

496-11041

WASHER,13/32" x 13/16" x .065", HDN

plain, hardened, 3/8

1шт.

3

232-5316

FLANGE NUT,Flg, 3/8"-16

lock, hex flange top, GR/G, 3/8-16

1шт.

4

433-664

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 4", Gr 5

round head square neck, 3/8-16 x 4

3шт.

5

231-5146

FLANGE NUT,3/8"-16

3шт.

6

700133571

SPACER

3шт.

7

700133575

RETAINER

CLAMP line

1шт.

8

700133568

RACK

battery, WA

2шт.

9

700133576

SPACER

2шт.

Выбрано товаров: 9
