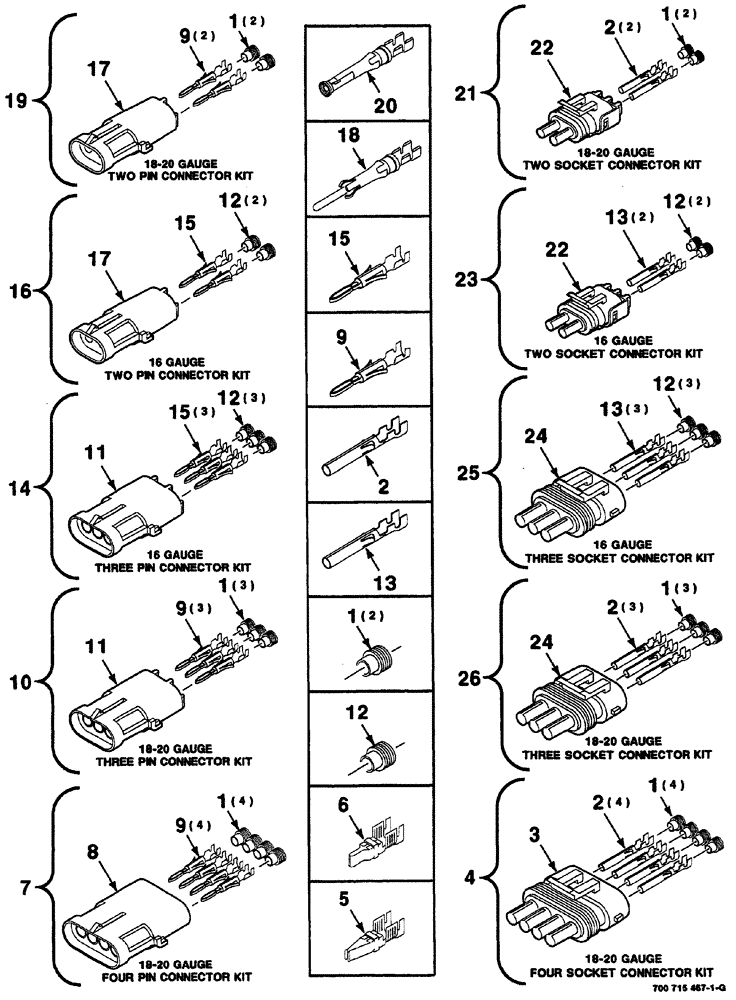

Запчасти Case IH 8860HP (04-36) - ELECTRICAL HARNESS SERVICE PARTS (55) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
700706400
PLUG
18-20 gauge
1шт.
2
700708760
ELEC. TERMINAL PIN,18 - 20 SAE
SOCKET female, 18-20 gauge
1шт.
3
700708963
WIRE CONNECTOR
tower, 4-socket, female
1шт.
4
700707002
REPAIR KIT
KIT harness, 4-socket, female, Includes: Ref. 1, 2 and 3
1шт.
5
700709706
TERMINAL
female, type XII
1шт.
6
700709767
CONTACT
male, type XII
1шт.
7
700709354
REPAIR KIT
KIT harness repair, 4-pin, shroud, male, Includes: Ref. 1, 8 and 9
1шт.
8
700708964
WIRE CONNECTOR
shroud, 4-pin, male
1шт.
9
700706401
TERMINAL
PIN male, 18-20 gauge
1шт.
10
700718599
KIT
KIT harness repair, shroud, 3-pin, male, Includes: Ref. 1, 9 and 11
1шт.
11
700706413
ELEC CONNECTOR
shroud, 3-pin, male
1шт.
12
225125C1
SEAL
SEAL, 16 gauge
1шт.
13
700718576
TERMINAL CONNECTOR
SOCKET female, 16 gauge
1шт.
14
700718531
KIT
harness repair, shroud, 3-pin, male, 16 gauge, Includes: Ref. 11, 12 and 15
1шт.
15
700718530
TERMINAL CONNECTOR
PIN male, 16 gauge
1шт.
16
700718588
KIT
harness repair, 2-pin, male, 16 gauge, Includes: Ref. 12, 15 and 17
1шт.
17
700706399
ELEC CONNECTOR,14 - 20 SAE
shroud, 2-pin, male
1шт.
18
700708757
ELEC. TERMINAL PIN,18 - 16 SAE
type 3, male, 16-18 gauge
1шт.
19
700708753
REPAIR KIT
harness repair, 2-pin, male, Includes: Ref. 1, 9 and 17
1шт.
20
700708758
TERMINAL
type 3, female, 16-18 gauge
1шт.
21
700706999
REPAIR KIT
KIT harness repair, 2-socket, female, 18-20 gauge, Includes: Ref. 1, 2 and 22
1шт.
22
245482C1
ELEC CONNECTOR,2 Pin
tower, 2-socket, female
1шт.
23
700718590
KIT
harness repair, 2-socket, female, 16 gauge, Includes: Ref. 12, 13 and 22
1шт.
24
245484C1
ELEC CONNECTOR,3 Pin
tower, 3-socket, female
1шт.
25
700718582
KIT
harness repair, 3-socket, female, 16 gauge, Includes: Ref. 12, 13 and 24
1шт.
26
700707001
REPAIR KIT
harness repair, 3-socket, female, Includes: Ref. 1 , 2 and 24
1шт.
27
9620124
CONNECTING LINK
37 Pin Connector Shell (Not Shown)
1шт.
Выбрано товаров: 27
