Запчасти Case IH 8860HP (04-24) - CAB LIGHT ASSEMBLIES (UPPER FRONT) (55) - ELECTRICAL SYSTEMS

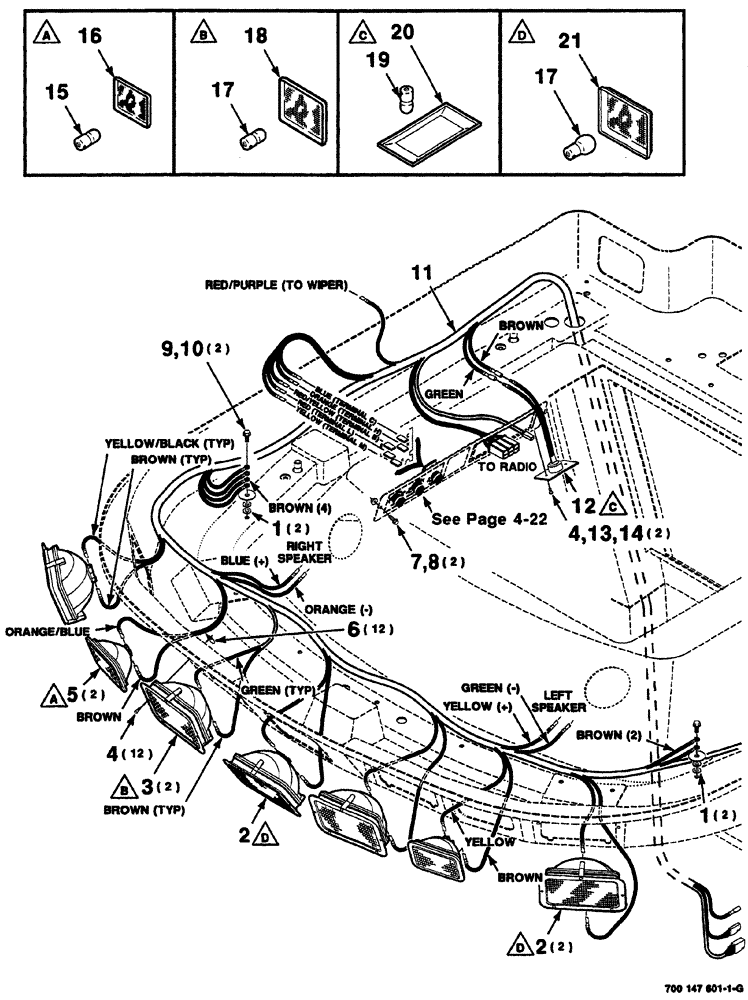

Схема запчастей Case IH 8860HP - (04-24) - CAB LIGHT ASSEMBLIES (UPPER FRONT) (55) - ELECTRICAL SYSTEMS
5
12
7
6
10
1
11
18
19
14
9
3
4
4
15
2
16
21
13
2
17
20
17
8

Артикул

Название

Примечание

Количество

1

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

4шт.

2

700715247

LIGHT

head, with bezel, Includes: Ref. 17 and 21

3шт.

3

700715246

HEADLIGHT

with bezel, Includes: Ref. 17 and 18

2шт.

4

440-1088

SCREW,Cross Pan Hd, #8-32 x 1/2"

14шт.

5

700715245

LAMP

FLASHER amber, Includes: Ref. 15 and 16

2шт.

6

700715255

NUT

speed

12шт.

7

7883275

SCREW,Hex Washer, 1/4" - 20 x 3/4"

machine, hex washer head, 1/4-20 x 3/4

2шт.

8

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

9

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

2шт.

10

700710049

WASHER

fender, 3/8

2шт.

11

700715244

HARNESS

wire

1шт.

12

700715251

LIGHT

courtesy, Includes: Ref. 19 and 20

1шт.

13

495-21019

WASHER,#8

2шт.

14

225-14108

NUT,#8-32

hex, , GR2 #8-32

2шт.

15

A41264

BULB,#1156, 12V

Flasher

1шт.

Part of Flasher Ref. 5 P/N 700715245

1шт.

16

700717422

LENS

flasher

1шт.

Part of Flasher Ref. 5 P/N 700715245

1шт.

17

700717384

BULB

headlight

2шт.

Part of Headlight Ref. 2 P/N 700715247

1шт.

Part of Headlight Ref. 3 P/N 700715246

1шт.

18

700717423

LENS

bezel

1шт.

Part of Headlight Ref. 3 P/N 700715246

1шт.

19

700717383

BULB

courtesy

1шт.

Part of Courtesy Light Ref. 12 P/N 700715251

1шт.

20

700717420

LENS

courtesy

1шт.

Part of Courtesy Light Ref. 12 P/N 700715251

1шт.

21

700717427

LENS

headlight

1шт.

Part of Headlight Ref. 2 P/N 700715247

1шт.

Выбрано товаров: 29
