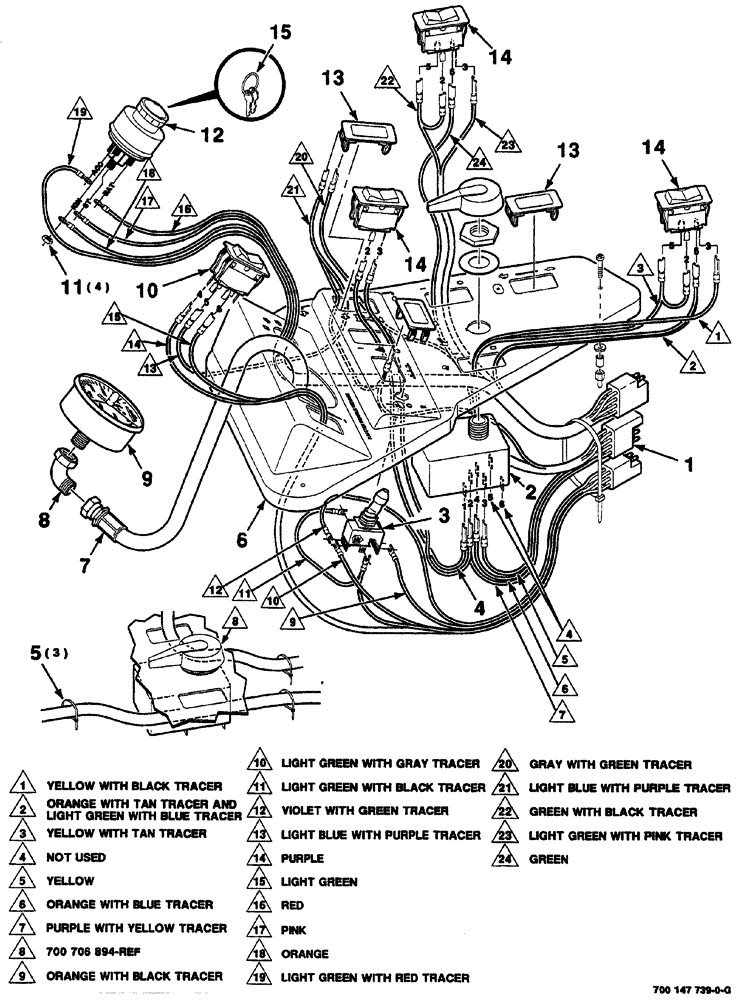

Запчасти Case IH 8860HP (04-10) - CONSOLE PANEL WIRING ASSEMBLY (8860 80HP) (55) - ELECTRICAL SYSTEMS

1

700715296

HARNESS

wire

1шт.

2

700706894

FLASHER SWITCH

turn, flasher

1шт.

3

700715295

SWITCH

lever lock

1шт.

4

700715577

ELECTRICAL WIRE

WIRE electrical

1шт.

5

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP TIE cable

3шт.

6

700715294

COVER

console panel

1шт.

7

1279526C1

HYDRAULIC HOSE,6.35 mm ID x 2285.00 mm

Assy

1шт.

8

218-513

ELBOW,90 Degree, 9/16"-18, 37 Degree x 1/4"-18, Fem NPTF

ELBOW, 90°

1шт.

9

700715777

GAUGE

pressure

1шт.

10

700715308

SWITCH

1шт.

11

225-14210

NUT,#10-32

4шт.

12

D75657

SWITCH

starter

1шт.

13

700715303

PLUG

plastic

3шт.

14

700715309

SWITCH

3шт.

15

700712801

KEY

1шт.
