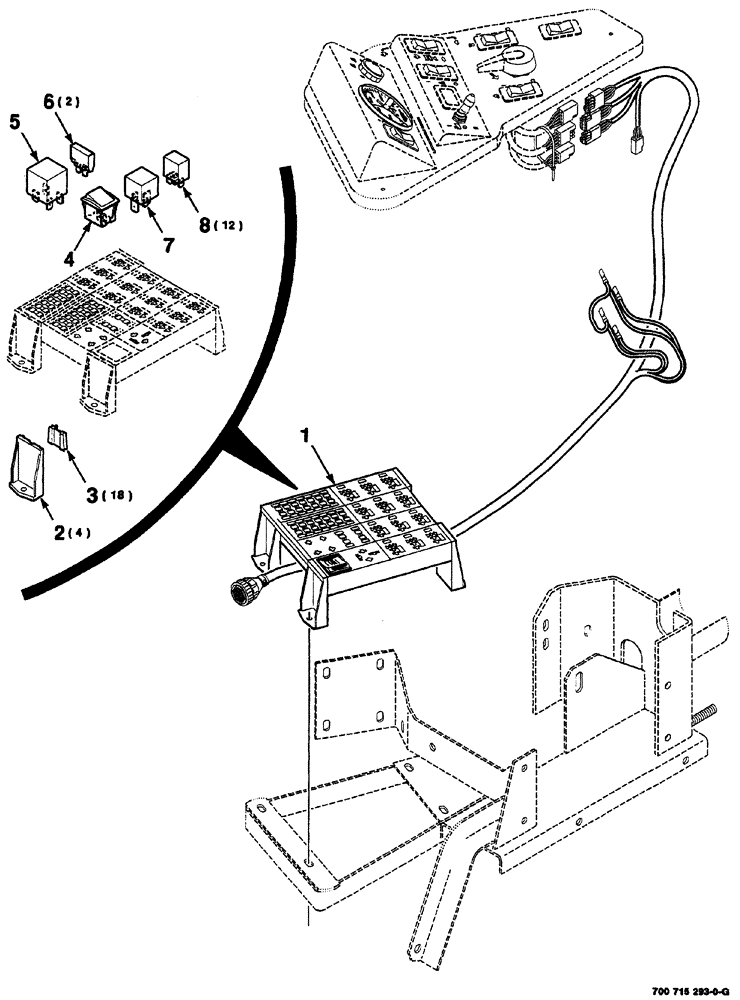

Запчасти Case IH 8860HP (04-08) - CONSOLE WIRE HARNESS ASSEMBLY (55) - ELECTRICAL SYSTEMS

1

700715293

HARNESS

WIRE ASSY., Includes: Ref. 2 thru 8

1шт.

2

700717855

SUPPORT ASSY.

LEG mounting

4шт.

3

700717856

SUPPORT ASSY.

WEDGE locking

18шт.

4

700717854

SWITCH

float lockout

1шт.

5

700717851

DIODE

3 amp, 1000V

1шт.

6

700717853

BREAKER

circuit, auto reset, 5 amp

2шт.

7

700717852

RELAY

70 amp

1шт.

8

700717849

RELAY

mini, 20 amp, 12V

12шт.
