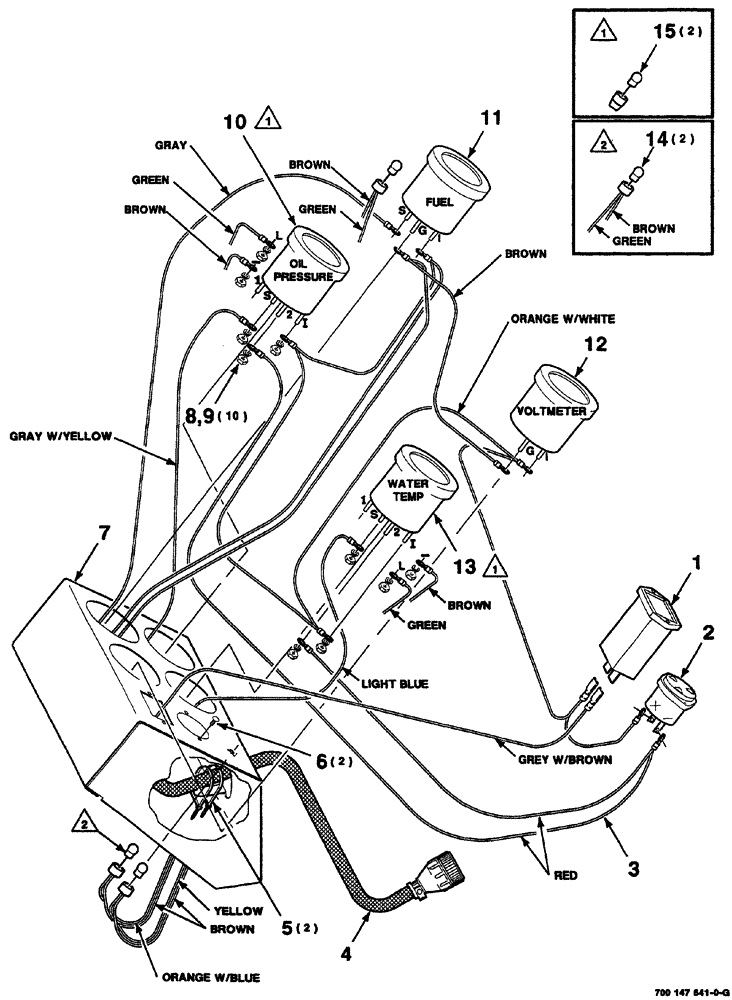

Запчасти Case IH 8860HP (04-04) - CONSOLE ASSEMBLY (GAUGES) (55) - ELECTRICAL SYSTEMS

1

L107631

METER

hour

1шт.

2

700703984

INDICATOR

audio

1шт.

3

700716706

ELECTRICAL WIRE

WIRE ASM, shutdown warning

1шт.

4

700716700

HARNESS

wire, gauge console

1шт.

5

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP TIE nylon

2шт.

6

700704212

SELF-TAP SCREW

SPHTFTS, #4-24 x 3/8

2шт.

7

700147642

BOX

WA

1шт.

8

225-14106

NUT,#6-32

10шт.

9

492-11006

LOCK WASHER,#6

10шт.

10

700716703

GAUGE

oil pressure, Includes: hardware

1шт.

11

700716702

GAUGE

fuel, Includes: hardware

1шт.

12

700716705

GAUGE

voltmeter, Includes: hardware

1шт.

13

700716701

GAUGE

temperature

1шт.

14

B50213

BULB

2шт.

15

700717329

BULB

SOCKET

2шт.
