(07-86) - WHEEL AND TIRE ASSEMBLY (LEFT AND RIGHT)

Запчасти Case IH 8860HP (07-86) - WHEEL AND TIRE ASSEMBLY (LEFT AND RIGHT) (44) - WHEELS

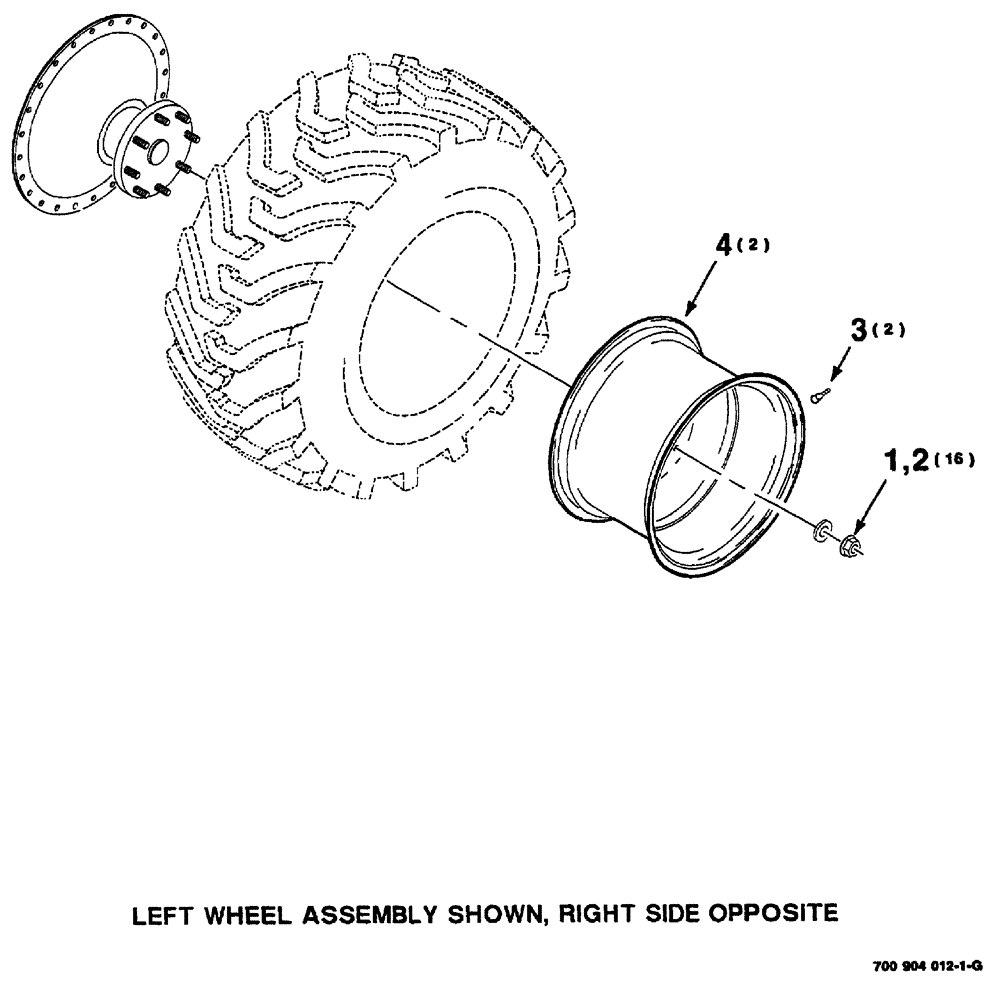

Схема запчастей Case IH 8860HP - (07-86) - WHEEL AND TIRE ASSEMBLY (LEFT AND RIGHT) (44) - WHEELS
4
2
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

7774862

NUT

HFN, 5/8-18, GR8

16шт.

2

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

5/8" bolt size

16шт.

3

7027469

VALVE

STEM

2шт.

4

700715529

RIM

WHEEL ASSY., W16L-24

2шт.
