Запчасти Case IH 8860HP (08-72) - HYDROSTATIC MOTOR ASSEMBLY (35) - HYDRAULIC SYSTEMS

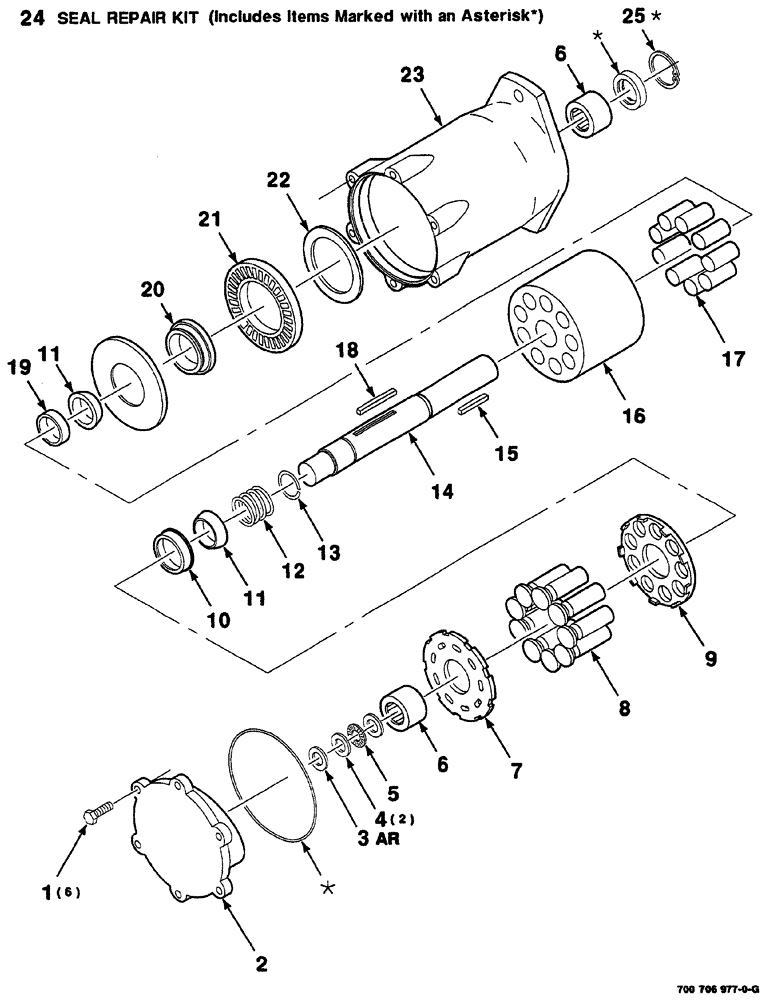

Схема запчастей Case IH 8860HP - (08-72) - HYDROSTATIC MOTOR ASSEMBLY (35) - HYDRAULIC SYSTEMS
2
1
15
8
10
5
20
3
22
11
6
18
16
6
4
17
13
23
21
12
9
25
7
11
19
24
14

Артикул

Название

Примечание

Количество

700706977

HYDRAULIC MOTOR

ASSY. hydrostatic, complete

1шт.

700728299R

REMAN-HYD MOTOR

8860, 8860HP, Reman for New P/N 700706977

1шт.

700728299C

REMAN-HYD MOTOR

Return Number

1шт.

1

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

6шт.

2

D80511

PLATE

ASSY. back, Includes: Ref. 6

1шт.

3

D63333

WASHER, THRUST

race

1шт.

4

N9977

WASHER, THRUST

race

2шт.

5

D63334

THRUST BEARING,0.569" ID x 0.99" OD x 0.0781"

thrust

1шт.

6

D80554

NEEDLE BEARING CAGE

2шт.

Part of Back Plate Assy. Ref. 2 P/N D80511

1шт.

Part of Housing Assy. Ref. 23 P/N D80510

1шт.

7

D63342

PLATE

connector

1шт.

8

7035850

PISTON

KIT tubular repair, Includes: 9 pistons

1шт.

9

D63339

LARGE PLATE

PLATE, LARGE SPIDER

1шт.

10

D75512

TUBE

PILOT

1шт.

11

D63338

PIVOT

CONE

2шт.

12

D75822

SPRING

1шт.

13

D63346

RING

retainer

1шт.

14

700707327

SHAFT

1шт.

15

7035967

KEY

1шт.

16

D63344

BLOCK

piston

1шт.

17

7035843

PISTON

KIT solid repair, Includes: 9 pistons

1шт.

18

D63340

KEY

1шт.

19

D63341

BUSHING

SPACER

1шт.

20

D80508

RACE

ASSY. piston

1шт.

21

D63332

THRUST BEARING,2.267" ID x 3.845" OD x 0.375"

thrust

1шт.

22

D63331

BEARING WASHER,2.375" ID x 40613" OD x 0.156"

BEARING race

1шт.

23

D80510

HOUSING

ASSY., Includes: Ref. 6

1шт.

24

700707333

SEAL KIT

repair

1шт.

25

100-21162

SNAP RING,1.625", Int, #162

1шт.

Выбрано товаров: 30
