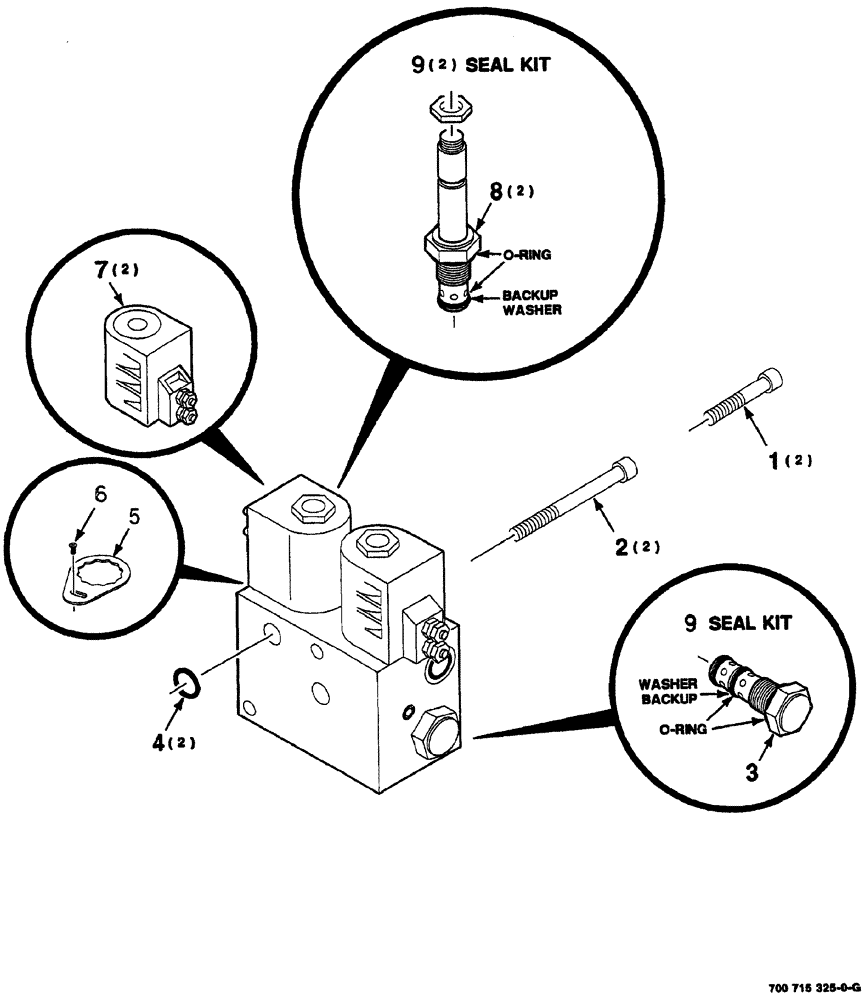

Запчасти Case IH 8860HP (08-46) - HYDRAULIC MANIFOLD ASSEMBLY (8860HP) (35) - HYDRAULIC SYSTEMS

700715325

MANIFOLD

ASSY. hydraulic, complete

1шт.

1

61-32536

HEX SOC SCREW,1/4"-20 x 2 1/4"

cap, hex socket head, 1/4-20 x 2-1/4

2шт.

2

700717379

SCREW

cap, hex socket head, 1/4-20 x 6

2шт.

3

700712917

CHECK VALVE

check

1шт.

4

700717377

O-RING

2шт.

5

700716903

LOCKING PLATE

LOCK hex

1шт.

6

440-1066

SCREW,Cross Pan Hd, #6-32 x 3/8"

machine, cross recess pan head, 6-32 x 3/8

1шт.

7

700712921

COIL

encap, 12V DC DP

2шт.

8

52848

VALVE

poppet, 2W NC

2шт.

9

700712678

KIT

seal

3шт.
