Запчасти Case IH 8860 (08-36) - HEADER LIFT HYDRAULIC ASSEMBLY (CONTINUED) (35) - HYDRAULIC SYSTEMS

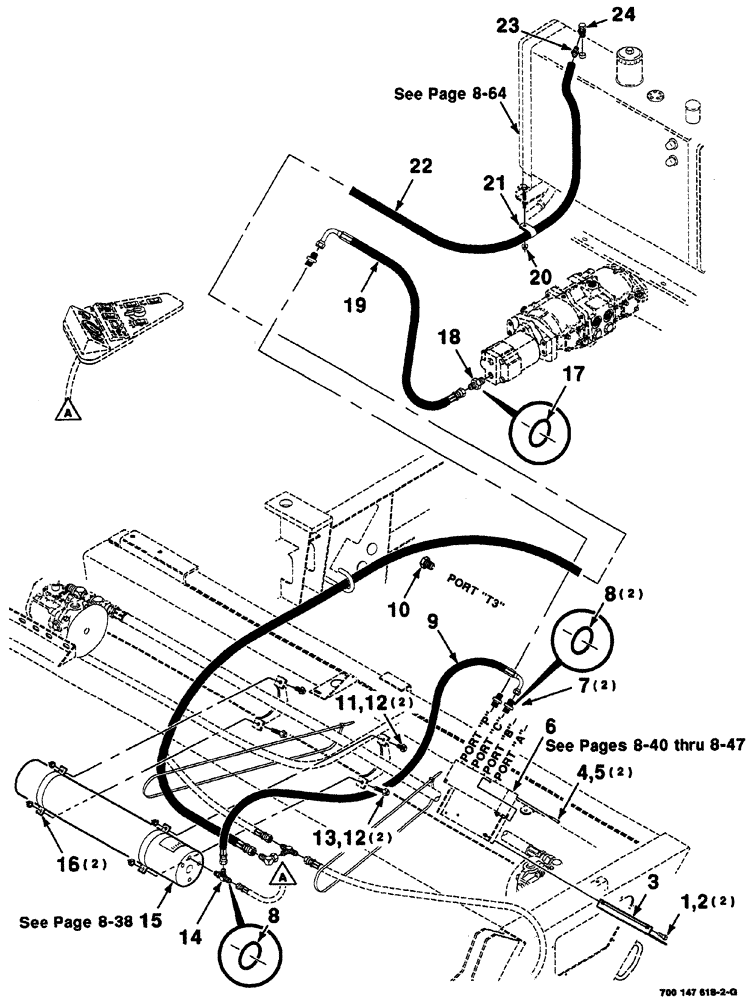

Схема запчастей Case IH 8860 - (08-36) - HEADER LIFT HYDRAULIC ASSEMBLY (CONTINUED) (35) - HYDRAULIC SYSTEMS
3
12
19
1
2
21
16
11
14
18
10
13
5
4
22
6
12
8
20
7
24
9
17
8
23
15

Артикул

Название

Примечание

Количество

1

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

2

425-105

NUT,5/16"-18, G5

2шт.

3

700134032

SHIELD

valve

1шт.

4

413-556

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

hex, 5/16-18 x 3-1/2

2шт.

5

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

6

700715512

VALVE

ASSY. control, 8860

1шт.

Due to a design change, P/N 700715512 and P/N 700716748 are not interchangeable.

1шт.

700716748

VALVE

ASSY. control, 8860HP

1шт.

Due to a design change, P/N 700715512 and P/N 700716748 are not interchangeable.

1шт.

7

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. Ref. 8

2шт.

8

738468

O-RING

3шт.

Part of Adapter Ref. 7 P/N 218-5057

1шт.

Part of Tee Ref. 14 P/N 218-5243

1шт.

9

700707519

FLEXIBLE HOSE

hydraulic

1шт.

10

7746456

PLUG

1шт.

11

409-7612

BOLT,3/8"-16 x 1.09" OAL

2шт.

12

232-5316

FLANGE NUT,Flg, 3/8"-16

lock, hex flange top, 3/8-16, GR/G

4шт.

13

700711084

BOLT

hex flange, 3/8-16 x 1-1/2, GR8

2шт.

14

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Straight thread, run, Includes: Ref. 8

1шт.

15

700713363

ACCUMULATOR

ASSY. hydraulic

1шт.

16

700122708

STRAP

2шт.

17

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Part of Connector Ref. 18 P/N 218-5059

1шт.

18

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Straight, Incl. Ref 17

1шт.

19

700715509

HOSE

hydraulic

1шт.

20

231-5146

FLANGE NUT,3/8"-16

1шт.

21

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

1шт.

22

700707084

HOSE

hydraulic

1шт.

23

217-119

FITTING,1/4" Hose x 1/4" NPTF, Barbed

INSERT

1шт.

24

218-924

ELBOW,90 Degree, 1/4" NPTF Male x 1/4" NPSM Fem Sw

ELBOW swivel, 90°

1шт.

Выбрано товаров: 30
