Запчасти Case IH 8860 (08-34) - HEADER LIFT HYDRAULIC ASSEMBLY (35) - HYDRAULIC SYSTEMS

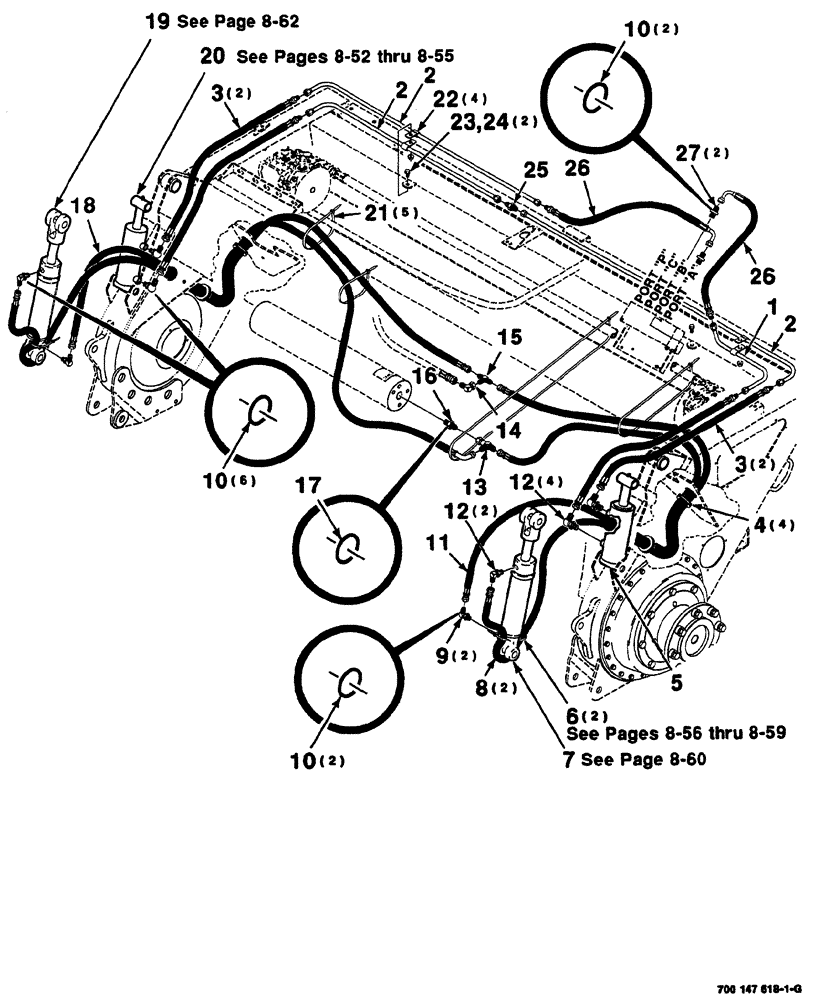

Схема запчастей Case IH 8860 - (08-34) - HEADER LIFT HYDRAULIC ASSEMBLY (35) - HYDRAULIC SYSTEMS
19
25
11
26
14
12
9
4
3
18
15
24
12
3
23
7
2
20
27
10
26
13
21
8
2
22
17
16
6
10
1
10
5
2

Артикул

Название

Примечание

Количество

1

700715323

LINE

hydraulic

1шт.

2

700715324

LINE

hydraulic

3шт.

3

700705606

FLEXIBLE HOSE

hydraulic

4шт.

4

700707073

GROMMET

4шт.

5

700715437

CYLINDER

ASSY. hydraulic, CFH0145002 thru CFH0145470

1шт.

P/N 700719600 interchanges with P/N 700715437, but existing stock of P/N 700715437 should be used prior to ordering P/N 700719600.

1шт.

700719600

CYLINDER

hydraulic, master, S.N. CFH0145471 and later

1шт.

P/N 700719600 interchanges with P/N 700715437, but P/N 700719600 must be stocked for its respective effectivity.

1шт.

6

306132C1

CABLE TIE,14.5" L

CABLE STRAP TIE

2шт.

7

700712021

CYLINDER

ASSY. hydraulic

1шт.

8

700707082

HOSE

hydraulic

2шт.

9

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

ELBOW 90°, Includes: Ref. 10

2шт.

10

738468

O-RING

10шт.

Part of Elbow Ref. 9 P/N 218-5280

1шт.

Part of Elbow Ref. 12 P/N 218-5105

1шт.

Part of Adapter Ref. 27 P/N 218-5057

1шт.

11

700715513

HOSE

hydraulic

1шт.

12

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

lncludes Ref. 10

6шт.

13

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

Straight thread

1шт.

14

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

1шт.

15

218-593

TEE,9/16"-18, 37 Degree

union

1шт.

16

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref 17

1шт.

17

738484

O-RING

1шт.

Part of Connector Ref. 16 P/N 218-5064

1шт.

18

700715510

HOSE

hydraulic

1шт.

19

700712020

CYLINDER

ASSY. hydraulic

1шт.

20

700715438

CYLINDER

ASSY. hydraulic, CFH0145002 thru CFH0145470

1шт.

P/N 700719601 interchanges with P/N 700715438, but existing stock of P/N 700715438 should be used prior to ordering P/N 700719601.

1шт.

700719601

CYLINDER

hydraulic, slave, S.N. CFH0145471 and later

1шт.

P/N 700719601 interchanges with P/N 700715438, but P/N 700719601 must be stocked for its respective effectivity.

1шт.

21

7021728

STRAP

TIE

5шт.

22

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

4шт.

23

409-7612

BOLT,3/8"-16 x 1.09" OAL

2шт.

24

232-5316

FLANGE NUT,Flg, 3/8"-16

lock, hex flange rop, 3/8-16, GR/G

2шт.

25

846477

UNION

ADAPTER straight

1шт.

26

700715398

HOSE

hydraulic

2шт.

27

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. Ref. 10

2шт.

Выбрано товаров: 37
