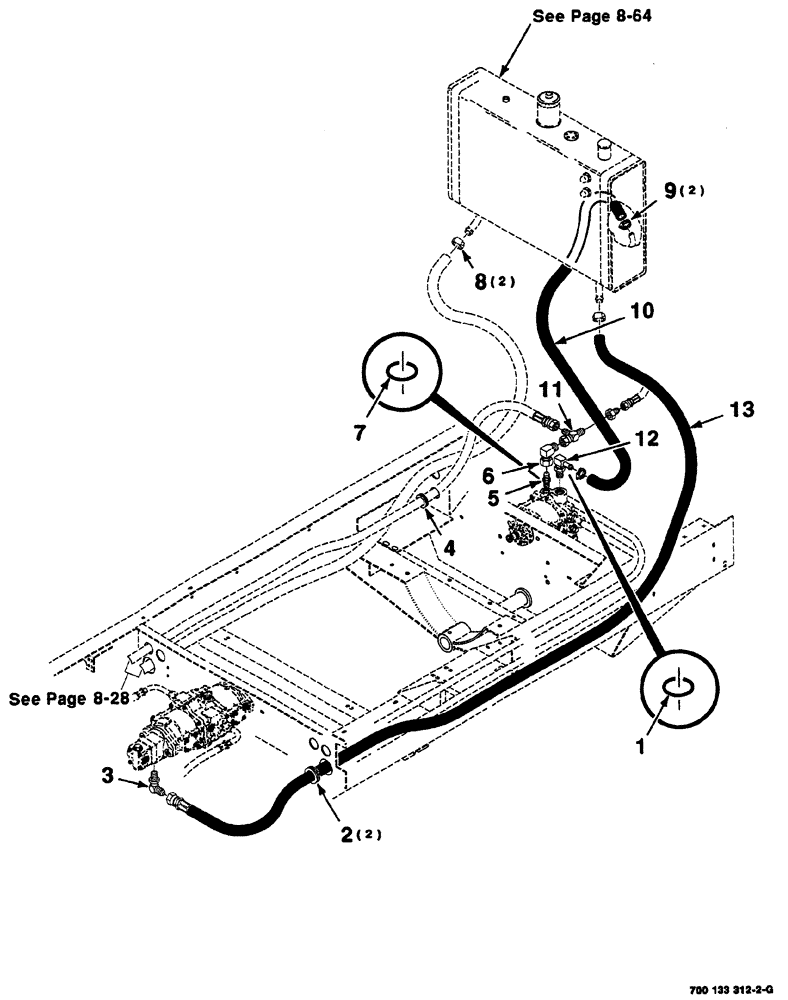

Запчасти Case IH 8860 (08-30) - HYDRAULIC RESERVOIR HOSE ASSEMBLIES (35) - HYDRAULIC SYSTEMS

1

738476

O-RING

1шт.

Part of Elbow Ref 12 P/N 217-352

1шт.

2

6511695

GROMMET

2шт.

3

7846702

ELBOW

90°

1шт.

4

248-21114

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

1шт.

5

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref 7

1шт.

6

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

1шт.

7

738484

O-RING

1шт.

Part of Connector Ref. 5 P/N 218-5064

1шт.

8

700706943

CLAMP

2шт.

9

214-1424

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

2шт.

10

7896632

HYDRAULIC HOSE,25.40 mm ID x 242.00 mm, SAE 100R3

hydraulic

1шт.

11

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

1шт.

12

217-352

FITTING,90 Degree Elbow, 1" Hose Barb x 1-5/16" - 12 Male ORB

90°, Includes: Ref. 1

1шт.

13

700715423

HOSE

hydraulic

1шт.
