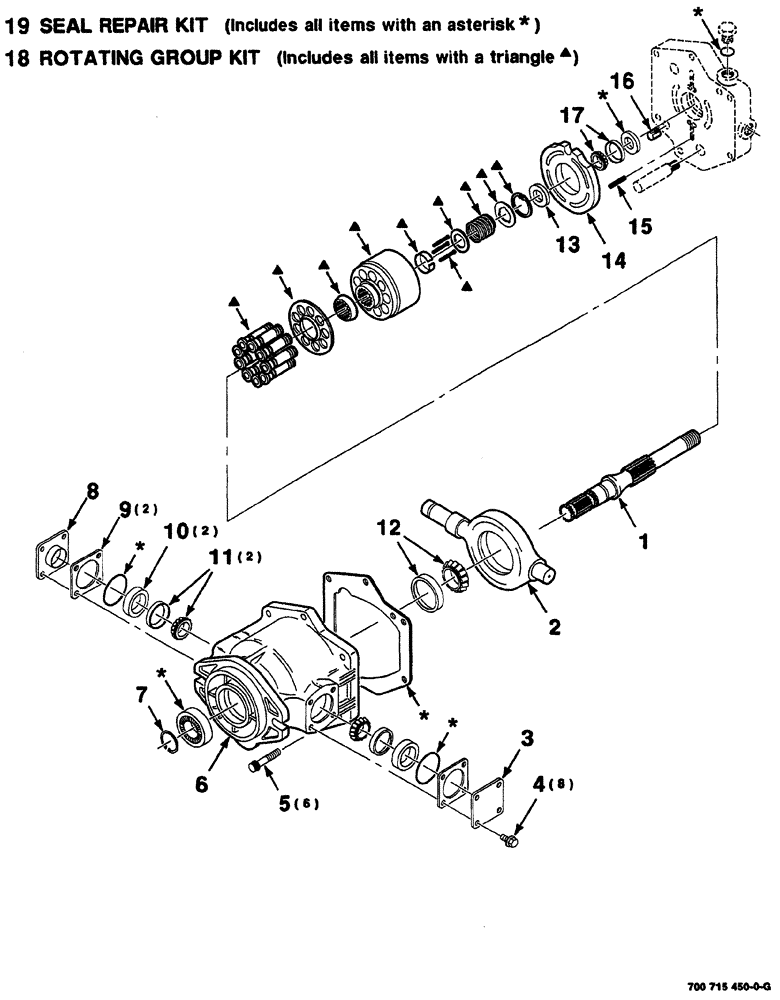

Запчасти Case IH 8860 (08-24) - VARIABLE MOTOR ASSEMBLY - RIGHT (35) - HYDRAULIC SYSTEMS

700715450

MOTOR

ASSY. variable, complete

1шт.

1

700717248

SHAFT

1шт.

2

N8292

YOKE

UNIVERSAL JOINT YOKE

1шт.

3

A47288

COVER

1шт.

4

409-748

BOLT,Hex Flg, 1/4" - 20 x 1/2", Spcl

8шт.

5

145596C1

BOLT,Torx, 3/8" - 16 x 1.50", Gr 5

special

6шт.

6

N8293

HOUSING

1шт.

7

100-21175

SNAP RING,1.75", Int, #175

1шт.

8

N8294

COVER

1шт.

9

145590C1

SHIM KIT

2шт.

10

A47286

SPACER

SPACER

2шт.

11

1263241C1

WHEEL BEARING KIT

SET bearing

2шт.

12

8730053

BEARING SET

1шт.

13

145582C1

KIT

spacer

1шт.

14

N8306

PLATE

wafer, right

1шт.

15

A47309

PIN

spring

1шт.

16

A47301

PIN

spring

1шт.

17

8730046

BEARING SET

1шт.

18

8732737

ROD

KIT rotating group

1шт.

19

700717266

SEAL PACKAGE

1шт.
