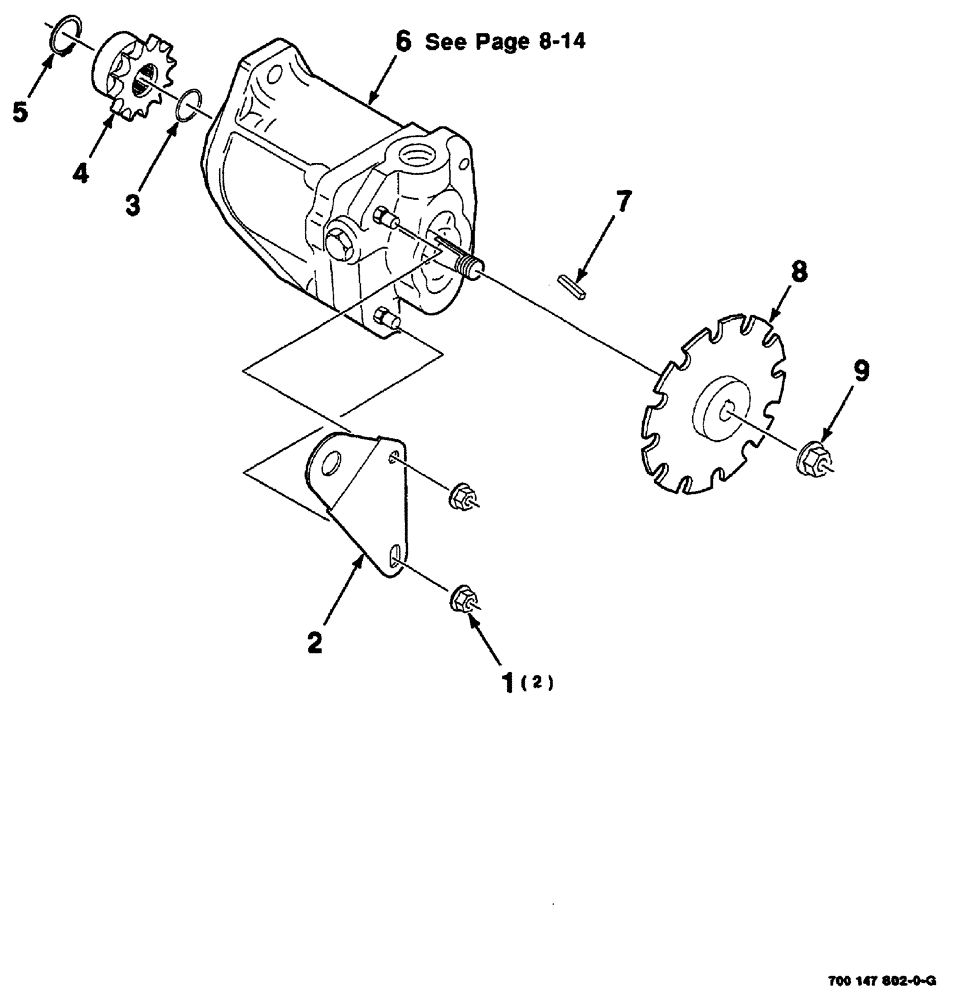

Запчасти Case IH 8860 (08-12) - MOTOR ASSEMBLY - RIGHT (35) - HYDRAULIC SYSTEMS

1

232-5316

FLANGE NUT,Flg, 3/8"-16

lock, hex flange top, 3/8-16, GR/G

2шт.

2

700147804

SUPPORT

right

1шт.

3

700715448

RING

retaining, external

1шт.

4

700715447

SPROCKET ASSY.

special

1шт.

5

100-1198

SNAP RING,#98, Ext

1шт.

6

700716762

MOTOR

ASSY.

1шт.

7

700061515

KEY

.188 x .750

1шт.

8

700134375

DISC

brake, WA

1шт.

9

231-5348

FLANGE NUT,Flg, 1/2"-13

lock, hex flange top, 1/2-13, GR/G

1шт.
