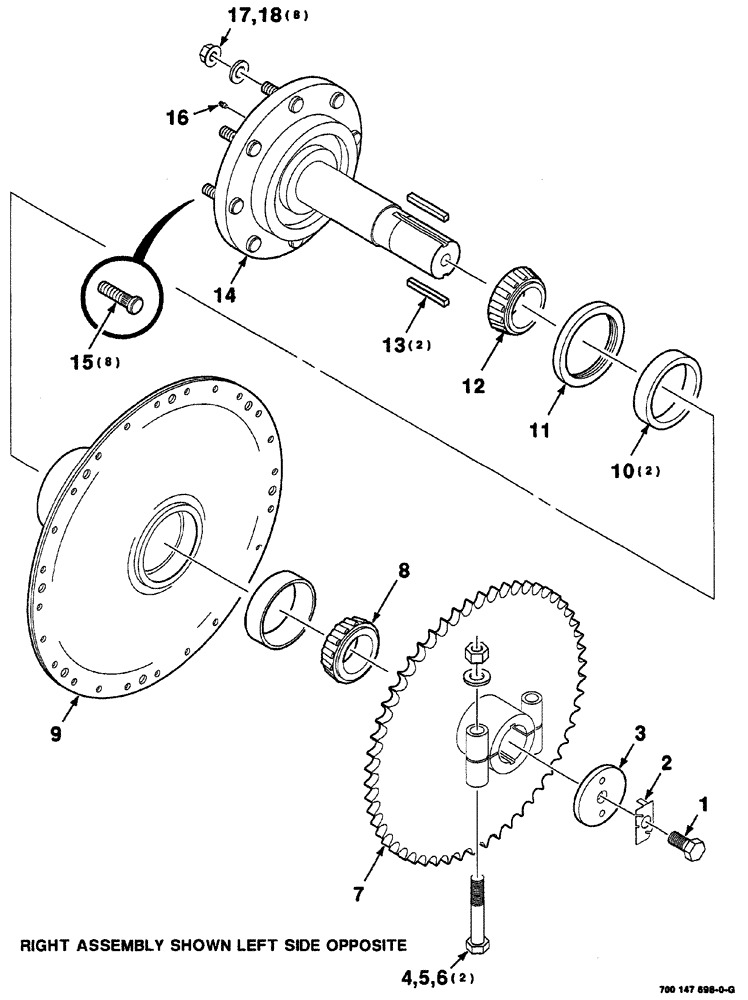

Запчасти Case IH 8860 (06-06) - HUB AND AXLE ASSEMBLY (14) - MAIN GEARBOX & DRIVE

1

414-1224

BOLT,Hex, 3/4" - 16 x 1-1/2", Gr 5

hex, 3/4-16 x 1-1/2

1шт.

2

7893910

PLATE

lock

1шт.

3

6269757

WASHER

special

1шт.

4

413-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

cap, hex, 3/4-10 x 4-1/2

2шт.

5

705566

WASHER

plain, hardened, 3/4

2шт.

6

230-41112

LOCK NUT,3/4"-10, GA

lock, hex top, GR/B, 3/4-10

2шт.

7

700115769

SPROCKET

WA, 80B54

1шт.

8

ST2116

TAPERED BEARING,2.375" ID x 4.4375" OD x 1.1875" W

cone

1шт.

9

6269773

HUB

axle, WA

1шт.

10

22396V

BEARING, CUP,112.739mm OD x 30.37mm W

2шт.

11

A30102

OIL SEAL

1шт.

12

25695HO

ROLLER BEARING,66.688mm ID x 30.124mm

1шт.

13

6269765

KEY

special

2шт.

14

700147700

AXLE

ASSY.

1шт.

15

566206R2

BOLT,5/8" - 18 x 2.38", Class 8

STUD wheel

8шт.

16

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

17

7774862

NUT

HFN, GR8, 5/8-18

8шт.

18

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

5/8" bolt size

8шт.
