(02-04) - U-JOINT ASSEMBLY (FRONT)

Запчасти Case IH 8860 (02-04) - U-JOINT ASSEMBLY (FRONT) (14) - MAIN GEARBOX & DRIVE

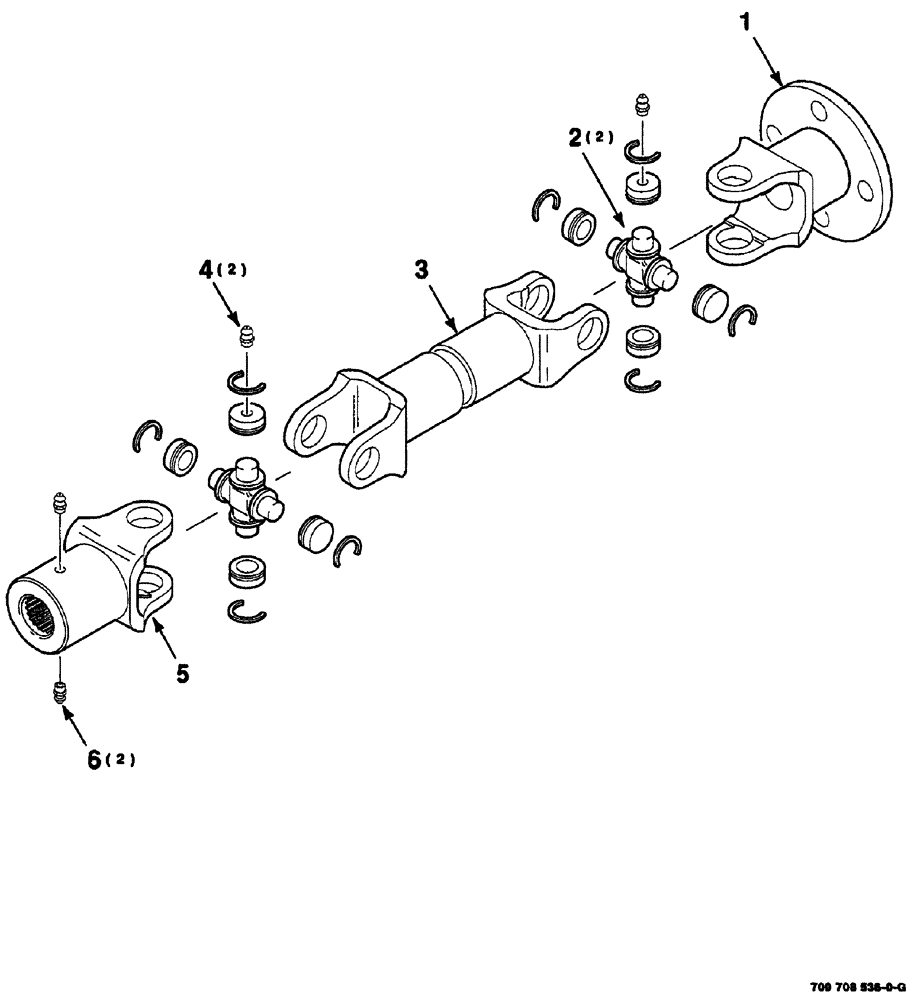

Схема запчастей Case IH 8860 - (02-04) - U-JOINT ASSEMBLY (FRONT) (14) - MAIN GEARBOX & DRIVE
1
3
6
2
4
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

700708536

UNIVERSAL JOINT

cap, hex, M12 x 1.75 x 35

1шт.

1

700708203

LINKAGE YOKE

FLANGE

1шт.

2

700711843

FLEXIBLE JOINT

KIT cross and bearing, Includes: Ref. 4

2шт.

3

700712429

LINK

YOKE double

1шт.

4

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

2шт.

Part of Cross and Bearing Kit Ref. 2 P/N 700711843

1шт.

5

7805849

FORK

YOKE splined

1шт.

6

219-8

LUBE NIPPLE,1/4" - 28 NPTF

2шт.
