Запчасти Case IH 8860 (10-66) - ANEROID AND WASTEGATE SYSTEM (4T-390 EMISSIONS CERTIFIED ENGINE) (10) - ENGINE

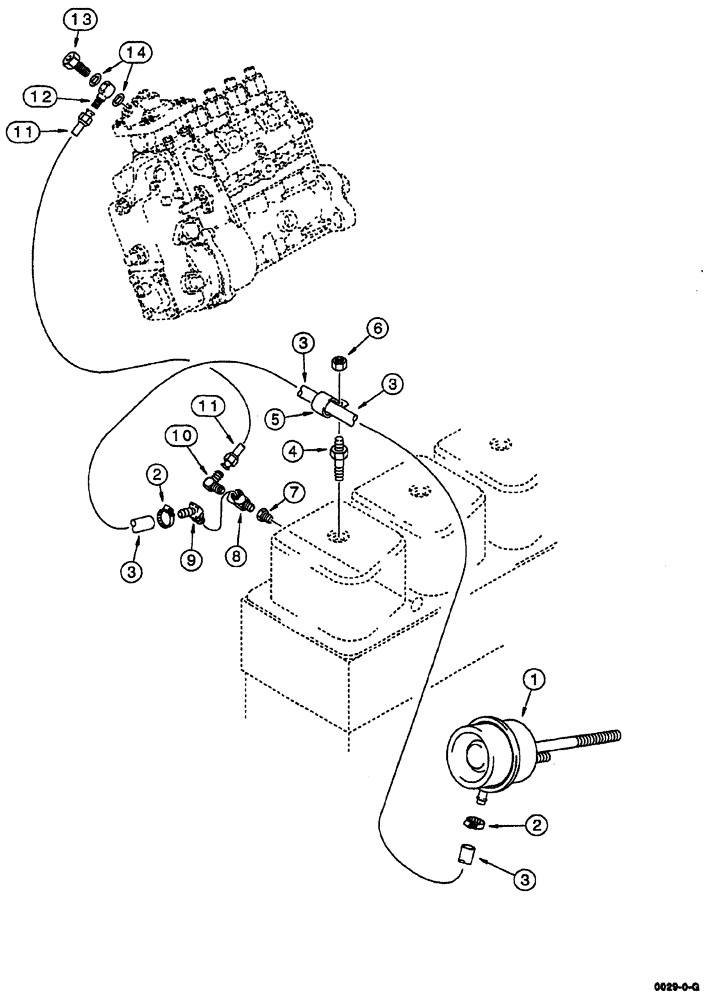

Схема запчастей Case IH 8860 - (10-66) - ANEROID AND WASTEGATE SYSTEM (4T-390 EMISSIONS CERTIFIED ENGINE) (10) - ENGINE
3
10
3
12
5
3
4
2
3
6
7
11
13
14
1
11
2
8
9

Артикул

Название

Примечание

Количество

1

J537560

ACTUATOR

turbo wastegate, see page 2-15 for mounting of actuator

1шт.

2

214-1404

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

adj, 1/4 - 5/8" diameter

2шт.

3

J926113

HOSE,466.00 mm

Aneroid to Wastegate

1шт.

4

J920344

FLANGE BOLT

valve cover and hose, wastegate actuator mounting

1шт.

5

J920348

CLIP,ELECTRICAL

CLAMP hose

1шт.

6

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

1шт.

7

221-87

REDUCER,1/2" NPT x 1/8" NPT

pipe, 1/2 male x 1/8" female

1шт.

8

J282406

TEE

1/8-27 str thread x fern str thread x fern str thread

1шт.

9

217-281

FITTING,45 Degree Elbow, 1/4" Hose Barb x 1/8" Male NPTF

Elbow

1шт.

10

222-41

ELBOW,90 Degree, 7/16"-24 x 1/8 NPT

Compression, 3/16 tube OD x 1/8" PT, 90°

1шт.

11

J934602

TUBE,6.35 mm OD x 110 mm L

aneroid, nylon, Replaces: J926738

1шт.

12

J919644

FITTING

CONNECTOR banjo

1шт.

13

J903035

BANJO BOLT

hex, 12-1.5 x 24 mm

1шт.

14

J935171

SEALING WASHER

special, 12 x 19 x 1.5 mm, Replaces: J918191

2шт.

Выбрано товаров: 14
